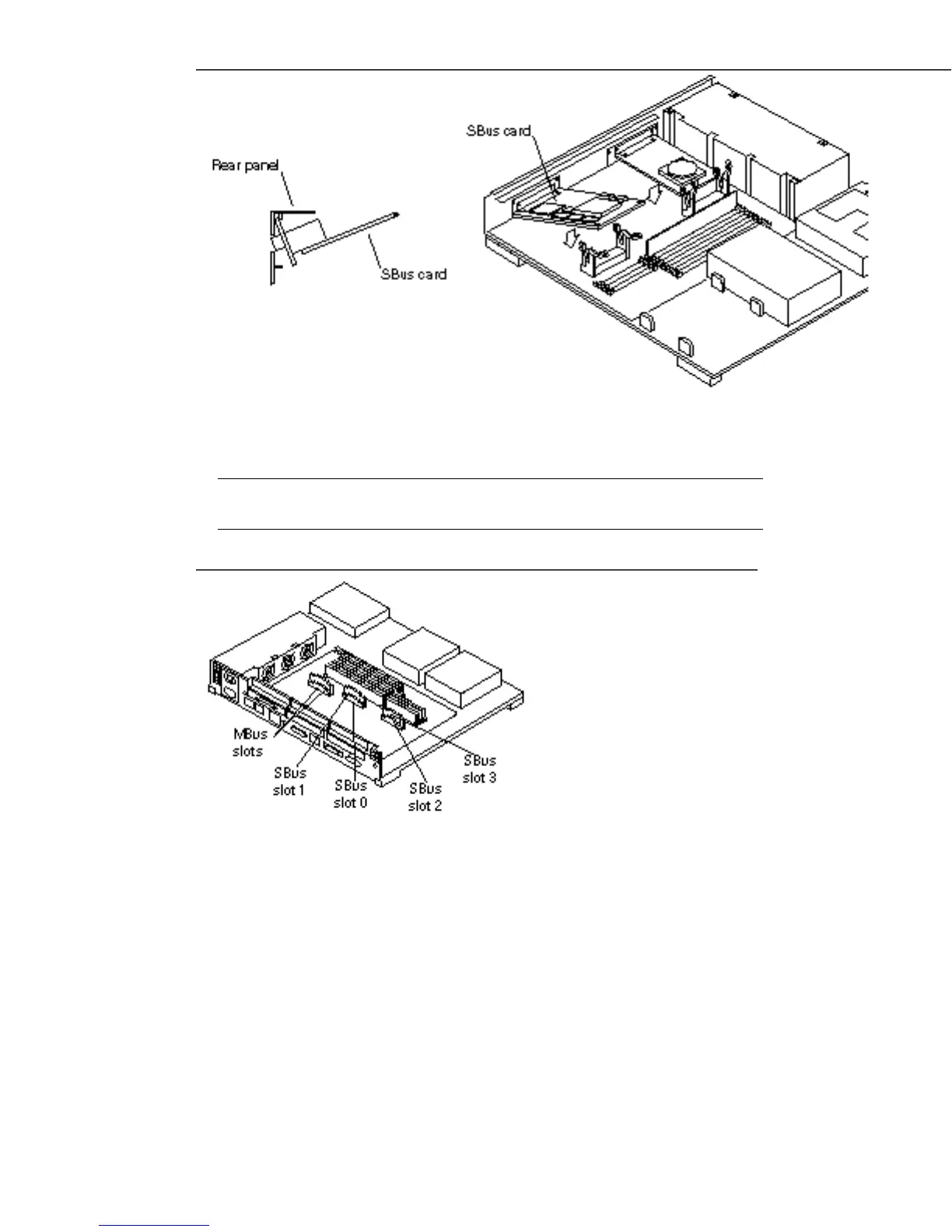

Figure 5–29 Installing an SBus Card
Note - The SPARCstation 10 has 4 SBus slots. SBus slot 1 is above SBus slot 0 and
SBus slot 3 is above SBus slot 2. Install SBus cards in the lower SBus slots first.
Figure 5–30 Location of SBus Slots on Main Logic Board
64
SPARCstation 10 Service Manual ♦ Revision A, July 1993
