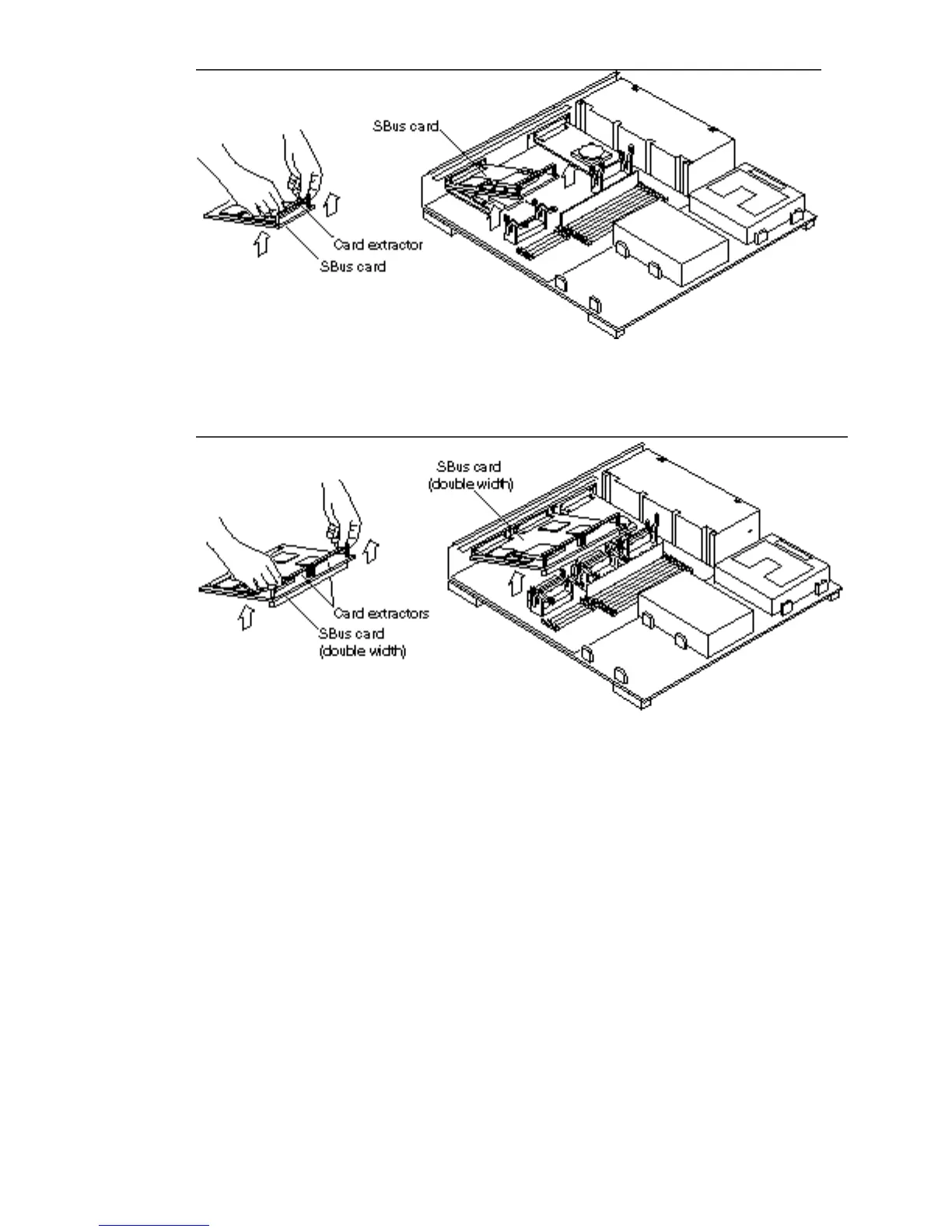

Figure 6–3 Removing a Single Width SBus Card
Figure 6–4 Removing a Double Width SBus Card
11. Remove the card extractor from the SBus card.
Save the card extractor for future use.
12. Place the SBus card on the antistatic surface.
13. Locate the open boot PROM on the MLB.
76
SPARCstation 10 Service Manual ♦ Revision A, July 1993
