Caution - Inserting the PROM backwards will damage the PROM.
4. Install the SBus card in slot 2 or 3 (if you removed them).
Go to step 5 otherwise.
a. Make sure that the card retainers are pushed back.
b. Slide the SBus card at an angle into the back panel of the system unit (See
Figure 6–7).
Make sure the mounting plate on the SBus card hooks upward into the back
panel of the system unit.

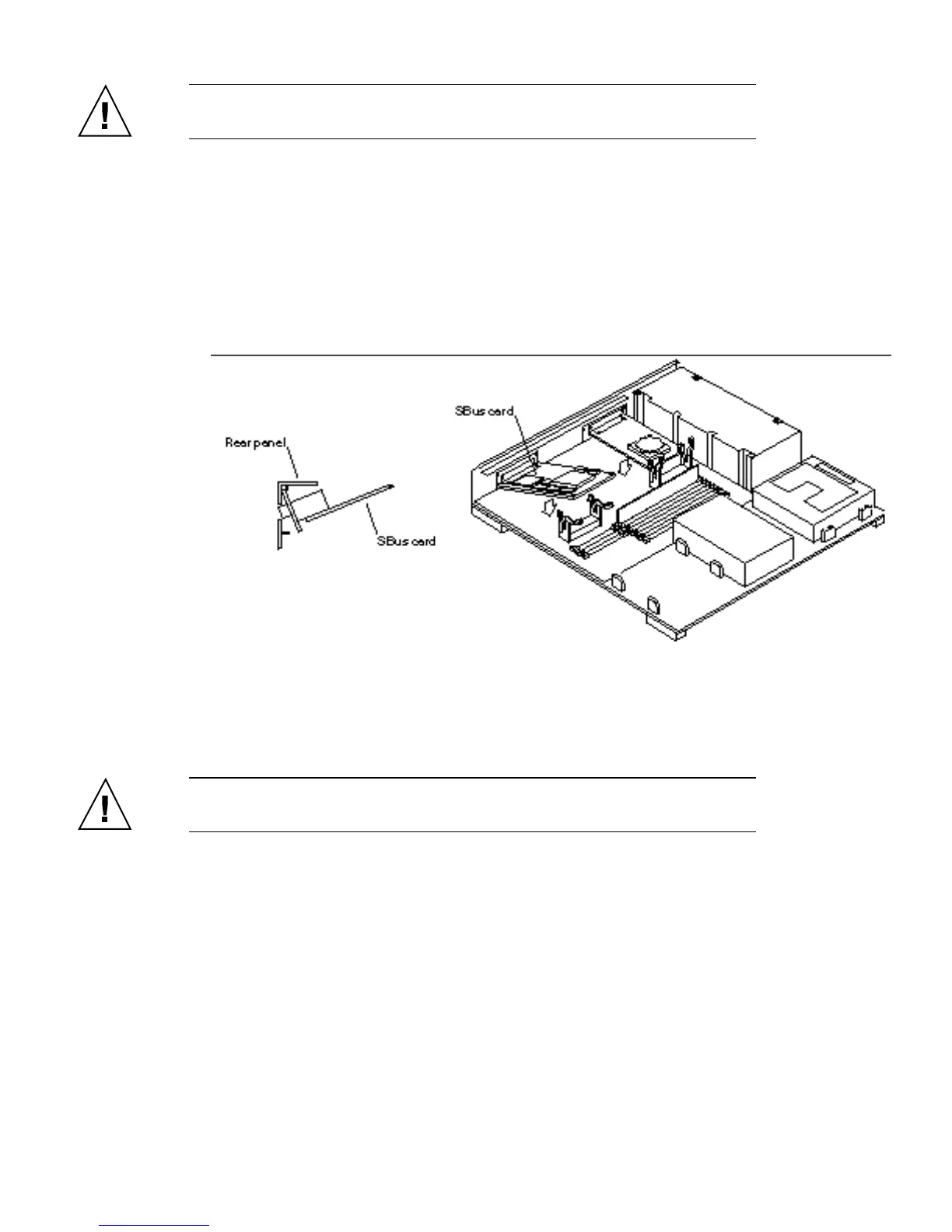

Figure 6–7 Installing the SBus Card in Slot 2 or 3
c. Align the plug with the socket of the SBus slot. Insert the plug into the
socket by pressing with your fingers on the corners of the SBus card.
Caution - Excessive force may bend or damage the pins.
d. Slide the card retainers over the edge of the card.
Open Boot PROM 79
