e. Install a washer and a screw into the screw hole adjacent to the SBus card
on the rear panel each at two places.
Double width SBus cards requires screws and washers in four places. Triple
width SBus cards require screws and washers in six places. The long side of
the washer should be oriented vertically as shown in Figure 6–8.

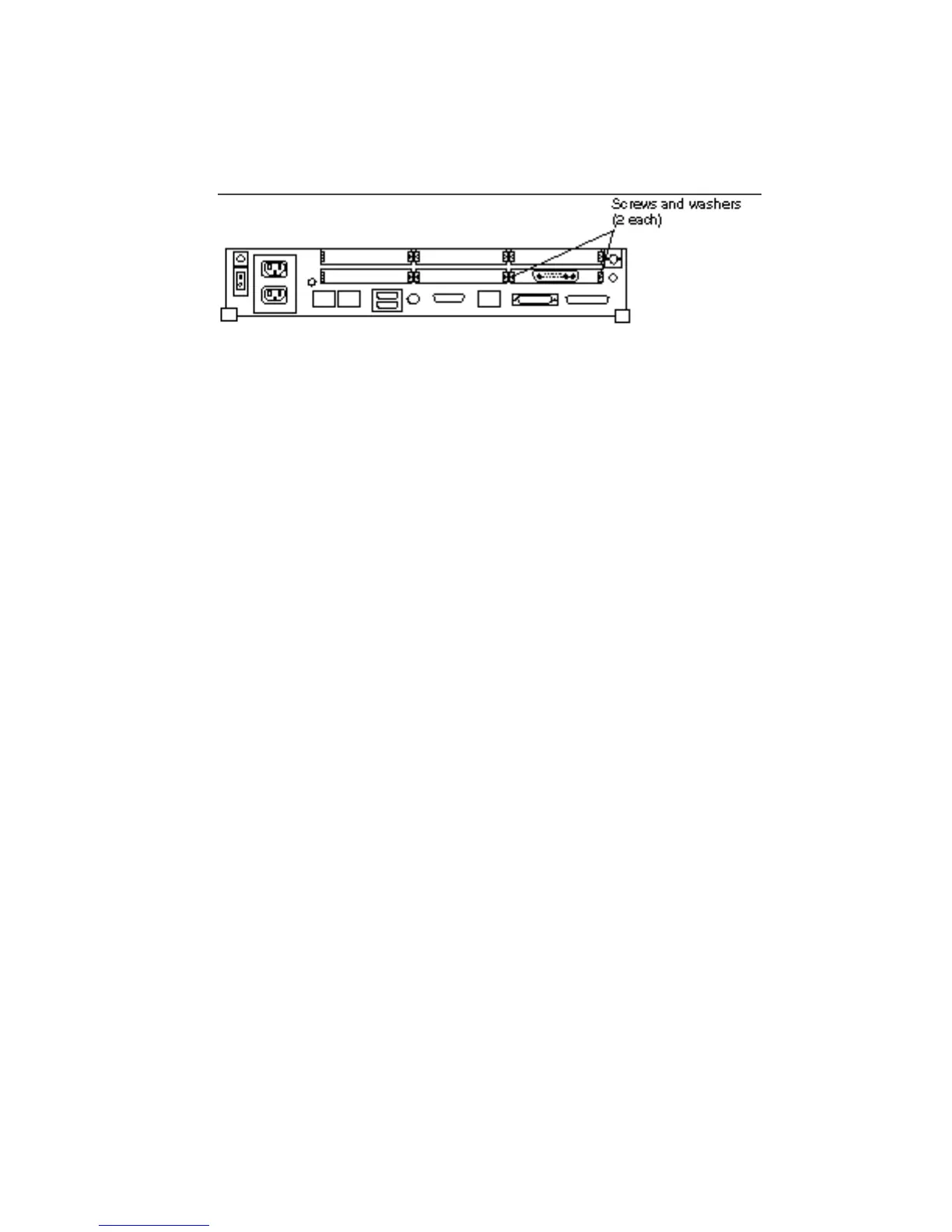

Figure 6–8 Rear Panel—Screws and Washers
5. Follow the instructions in Chapter 17 to detach the wrist strap, install the cover,
connect any of the expansion unit(s) and power on the system.
