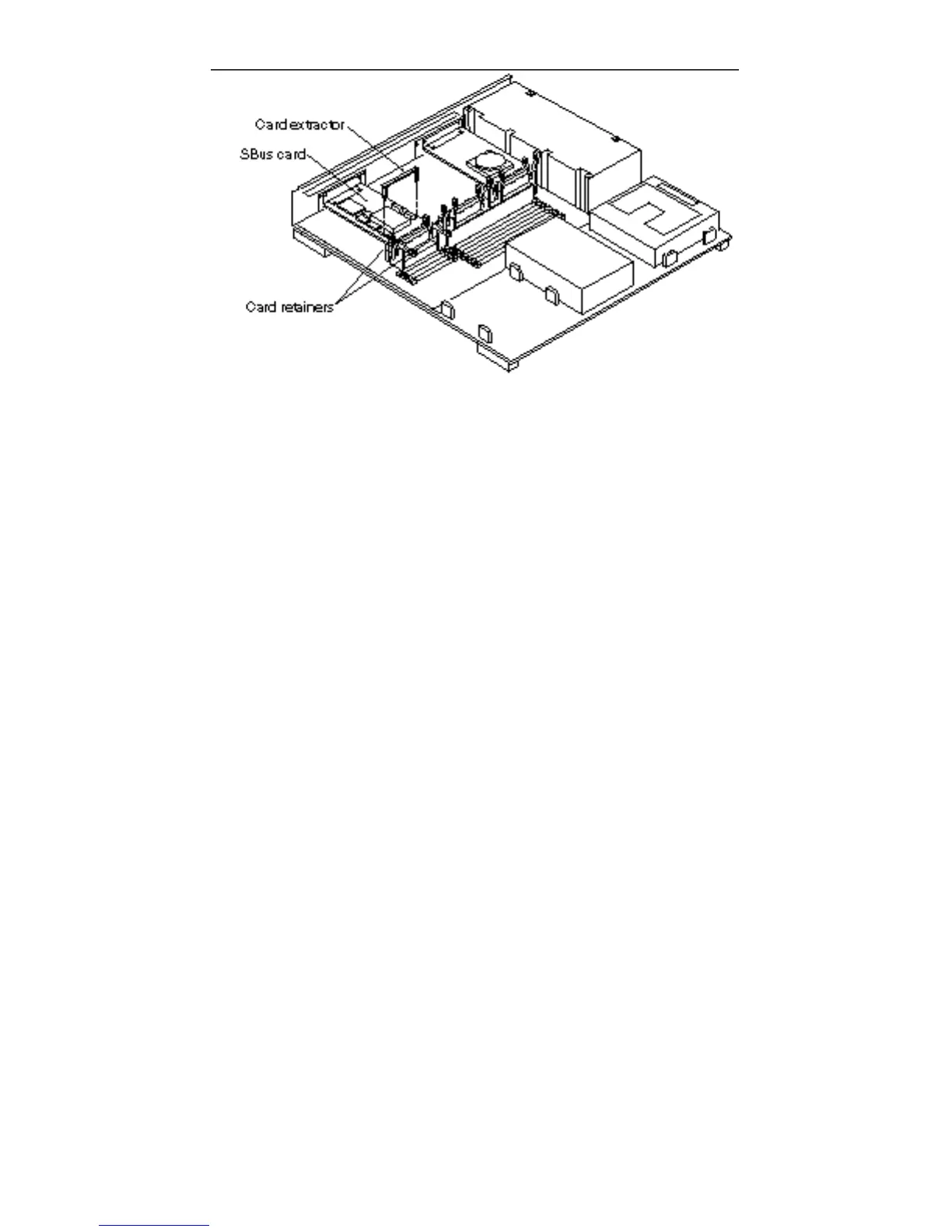

Figure 7–2 SBus Card—Card Retainers and Card Extractor
c. Hold both corners of the card and pull it out until the connectors are out of
the slot.
You do not need card extractors to remove a triple width SBus card. Go to
step g.
d. Install the card extractor on the SBus card.
If the SBus card occupies two slots, install two card extractors.
e. Hold both ends of the card extractor with your fingers and pull on both
corners of the SBus card on both corners until the connector is out of the
slot.
Figure 7–3 shows a single wide SBus card; Figure 7–4 shows a double width
SBus card.
