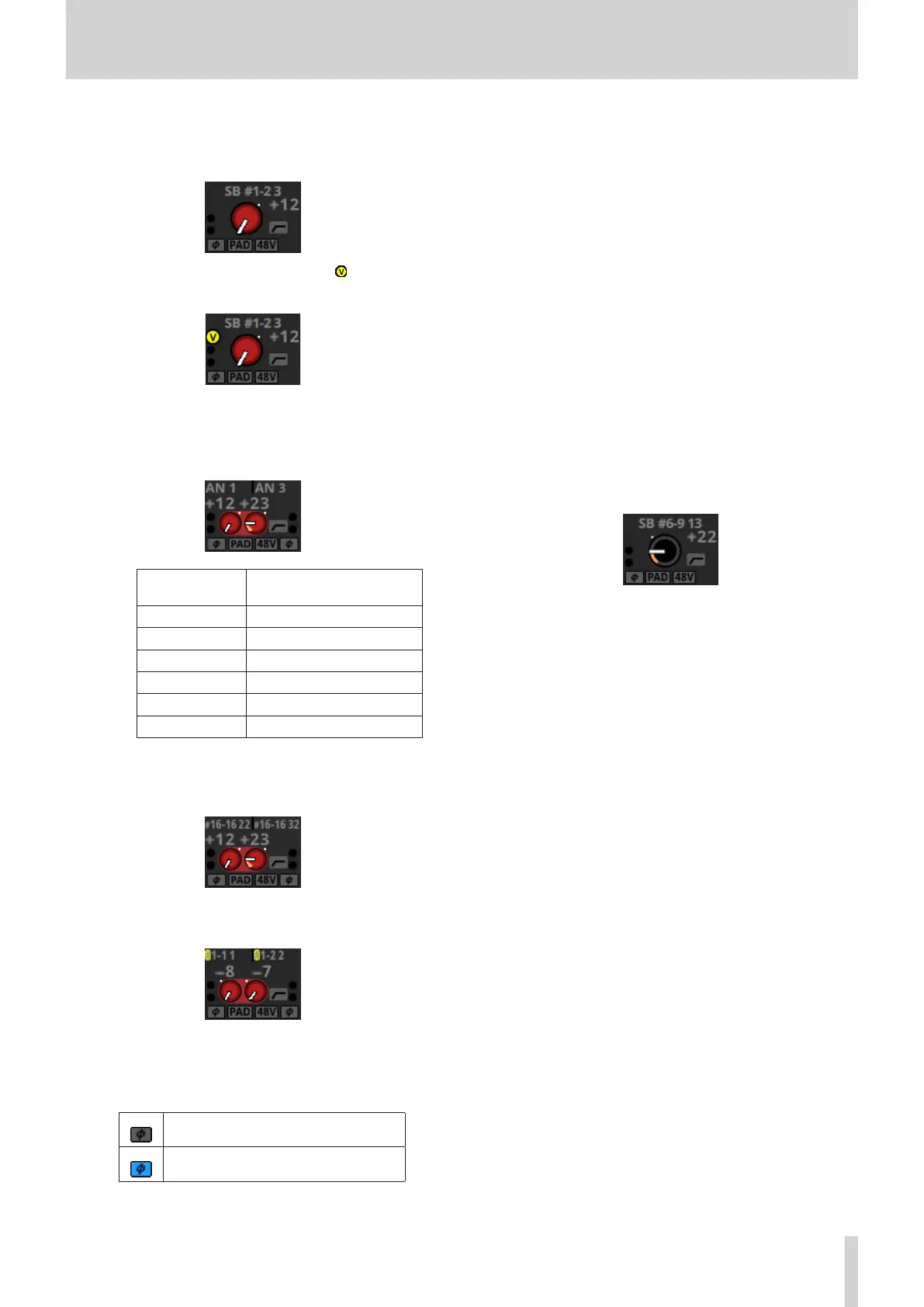

a This shows the input source name.
i If a Dante port that has a mounted SB-16D assigned
is selected, “SB#[ID] [port number]” will be shown.
If it is a virtually-mounted SB-16D, will appear to
the bottom left of the port name.
i If the module is stereo and input sources that
are not left-right adjacent are selected, input
source names will appear split left and right and
abbreviated as follows.
Input source
name
Input source name
abbreviation
ANALOG AN
Dante DA
SLOT 1 S1
USB US
ST IN 1 ST1
PLAYER PL
i When a module is stereo, if a Dante port that has a
mounted SB-16D assigned is selected, “#[ID] [port
number]” will be shown.
If it is a virtually-mounted SB-16D, the # background
will be yellow.
b These indicators appear to light as shown below
depending on the input level.
Red: -3 dBFS, Green: -40 dBFS
c This shows the input signal phase setting status.
Normal
Reversed
d A D.TRIM knob and the digital trim value will be shown
when the input source of the selected module is not
“ANALOG” or “SB-16D connected by built-in Dante”.
e This shows the - 20dB pad setting status when the input
source of the selected module is “ANALOG” or “SB-16D
connected by built-in Dante” . When on, the icon will
appear highlighted.
If the input sources for both the left and right channels
of a stereo module are “ANALOG” or “SB-16D connected
by built-in Dante”, this shows the left channel setting.
f This shows the phantom power (+48V) setting status
when the input source of the selected module is
“ANALOG” or “SB-16D connected by built-in Dante”.
When on, the icon will appear highlighted.
If the input sources for both the left and right channels
of a stereo module are “ANALOG” or “SB-16D connected
by built-in Dante”, this shows the left channel setting.
g When the input source of the selected module is
“ANALOG” or “SB-16D connected by built-in Dante”,
this will show 2 analog gain knobs and the input level
values of the unit or SB-16D MIC/LINE input jacks.
A black knob that cannot be operated will be shown
if the input source is an SB-16D for which control
privileges are not held.
o Tap this area to show the selection frame. When the
selection frame is shown, corresponding LCD knobs can
be used to adjust the parameters shown.
o When the selection frame is shown, tap this area to open
the MODULE (INPUT) Screen for the selected module. (See
“MODULE (INPUT) Screen” on page 124.)
2 FX area
o This shows effects names and main effect parameters.
o Tap this area to show the selection frame. When the
selection frame is shown, corresponding LCD knobs can
be used to adjust effect parameters shown.
o When the selection frame is shown, tap this area to open
the MODULE (FX) Screen for the selected module. (See
“MODULE (FX) Screen” on page 128.)
3 EQ area
o This shows a graph of the EQ frequency response.
o Tap this area to open the MODULE (EQ) Screen for the
selected module. (See “MODULE (EQ) Screen” on page
134.)
