Tascam Sonicview 16 User Manual

4 – Mixer configuration and settings

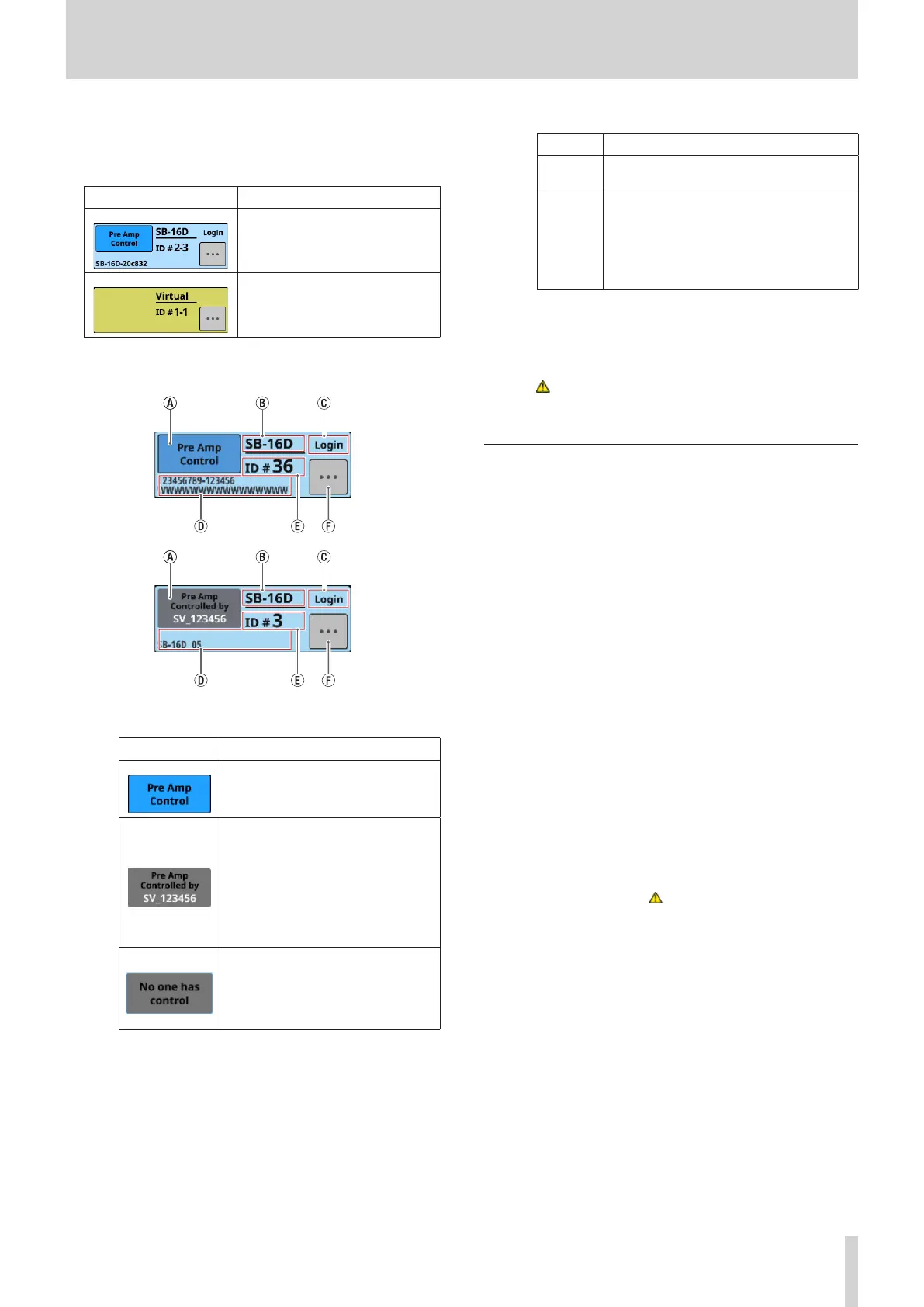

4 Mounted Device area
This shows mounted devices.
The devices are shown with the following colors depending
on status.
Item Status
Device connected to the Dante
network
Virtual device that does not exist
on the Dante network
Selected devices and mounting positions will be highlighted
with yellow frames.
a Control privilege display area: This shows the control
privilege status.
Item Explanation
This Sonicview has control
privileges.
This Sonicview does not have
control privileges. The named
Sonicview has control privileges.
Tap this to open a message
confirming whether or not to
request control. (See “Setting
control privileges after mounting”
on page 64.)
No device has control privileges. Tap
this to open a message confirming
whether or not to request control.
(See “Setting control privileges after
mounting” on page 64.)
b This shows the module name. If no device with the
same ID is connected to the same Dante network
(when virtually-mounted), “Virtual” will be shown.
c This shows the login status.
Item Explanation
Login
Information for this SB-16D can be
acquired by this Sonicview.
Logout
Information for this SB-16D cannot be
acquired by this Sonicview. (Login is not
possible because this SB-16D is already
mounted by 10 Sonicview units or a
communication error occurred.) (See
“Login failure” on page 67.)
d This shows the module name of the Dante device set in
this SB-16D.
e This shows the ID. If multiple devices with the same ID
are connected to the same Dante network (when the
same ID is duplicated), “ID” will be shown in red with a
mark.
f Tap this button to open the SB-16D control screen. (See
“Control screen operations” on page 71.)
Using SB-16D units
To use SB-16Ds as a Sonicview I/O boxes, they must be mounted
(registered) in advance.
See the following for operation procedures.
i “Mounting of devices connected to the Dante network” on
page 62
i “Mounting devices that are not on the Dante network” on
page 64
o A maximum of 4 SB-16D units can be mounted on a
Sonicview.
o If an SB-16D is mounted and control privileges acquired, this
unit will be able to do the following.
i Control SB-16D preamps
i Control SB-16D preamps using snapshot recall
i Control/use GPIO ports (expansion mode)
i Control Dante output routing
o The Sonicview manages SB-16D mounting status by ID. If
no device with the same ID as the mounted ID is connected
to the Dante network, “Virtual” will be shown instead of the
device name.
o If multiple devices with the same ID are connected to the
same Dante network (when the same ID is duplicated), “ID”
will be shown in red with marks for those devices.
o If the ID of a mounted device is used by more than one
device, the SB-16D that was recognized by the Sonicview
first will be used. However, duplicate IDs must be resolved
to show them on the SB-16D control screen. (See “Resolving
duplicate IDs” on page 65.)
Moreover, an SB-16D with a duplicate ID that is later
recognized by the Sonicview cannot be used.
o If the Routing control setting on the Controller Settings page
is “This Console”, the mounted SB-16D I/O ports and the main
unit’s built-in Dante I/O will be assigned to Dante routing
automatically when mounted according to the mounting
position in the Mounted Device area (4). See the table in
“Dante routing” on page 68 for details.
TASCAM Sonicview 16/Sonicview 24 V1.1.0 61
