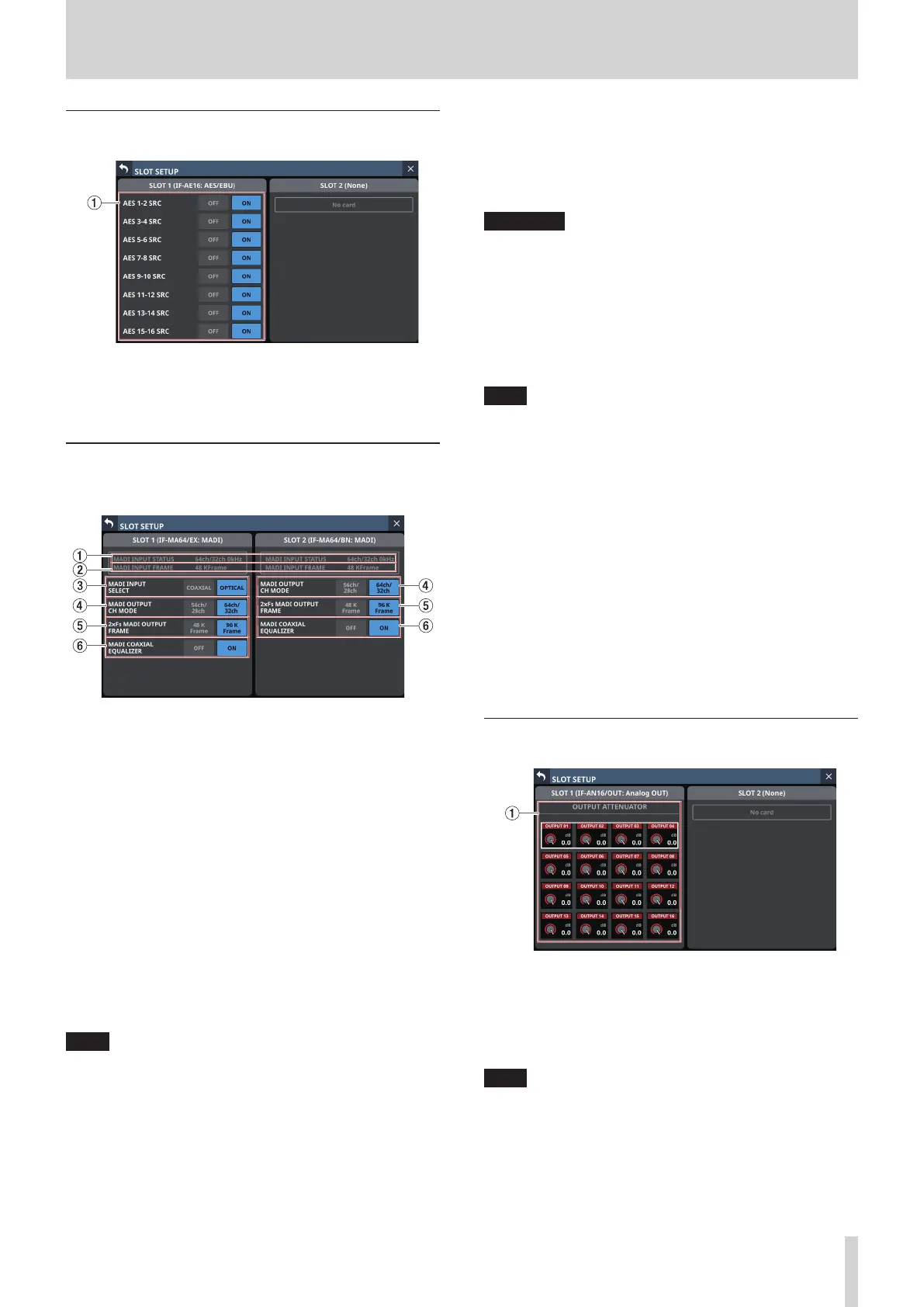

4 – Mixer configuration and settings
When IF-AE16 installed
1 SRC ON/OFF buttons
These turn the SRC (sample rate converter) ON (default) and
OFF for each signal line.
The selected buttons will be highlighted.
When IF-MA64/EX or IF-MA64/BN
installed
1 MADI INPUT STATUS
This shows the channel mode/frame frequency of the MADI
input signal.
“No signal” will appear if there is no input signal.
2 MADI INPUT FRAME
This shows the MADI input signal frame type (48K Frame/96K
Frame).
“No signal” will appear if there is no input signal.
3 MADI INPUT SELECT buttons (IF-MA64/EX only)
Set the input connector used.
Options: COAXIAL, OPTICAL (default)
The selected button will be highlighted.
4 MADI OUTPUT CH MODE buttons
Set the output channel mode.
Options: 56ch/28ch, 64ch/32ch (default)
The selected button will be highlighted.
NOTE
i Left of /: 1×Fs channel mode
i Right of /: 2×Fs channel mode
5 2×Fs MADI OUTPUT FRAME buttons
These set the MADI output signal frame type when the unit's
sampling frequency is 96 kHz.
Options: 48K Feame, 96K Frame (default)
The selected button will be highlighted.
ATTENTION
A MADI signal with a 96kHz sampling frequency and 48K
Frame type cannot be distinguished from a MADI signal with
a 48kHz sampling frequency.
For this reason, a 48K Frame MADI input signal that does not
match the sampling frequency of the receiving device cannot
be received as proper audio data.
When using a 48K Frame MADI signal, always match the
sampling frequencies of the signal sending and receiving
devices.
NOTE
The signal from the IF-MA64/EX MADI COAXIAL IN connector
is output through its MADI COAXIAL THRU connector
whether the unit is on or off.
When the unit is turned on/off, however, the signal output
from the MADI COAXIAL THRU connector will be momentarily
disrupted.
For this reason, time turning the unit on/off carefully when
the signal output from the MADI COAXIAL THRU connector is
being used by a connected device.
6 MADI COAXIAL EQUALIZER buttons
Set the equalizer for MADI COAXIAL input signals.
When an IF-MA64/EX or IF-MA64/BN is connected and a
low-voltage MADI COAXIAL signal source or long BNC cable is
being used, proper reception is not possible sometimes.
In this case, try setting MADI COAXIAL EQUALIZER to OFF.
Options: OFF, ON (default)
The selected button will be highlighted.
When IF-AN16/OUT installed
1 OUTPUT ATTENUATOR knobs
These adjust the output levels.
Range: -14.0 dB – 0.0 dB (default)
When the selection frame is shown, use the corresponding
LCD knobs to adjust the values.
NOTE
The IF-AN16/OUT will always operate at 96 kHz even when
synchronized to a master clock that is 48 kHz.
TASCAM Sonicview 16/Sonicview 24 V1.1.0 89
