5 – Routing

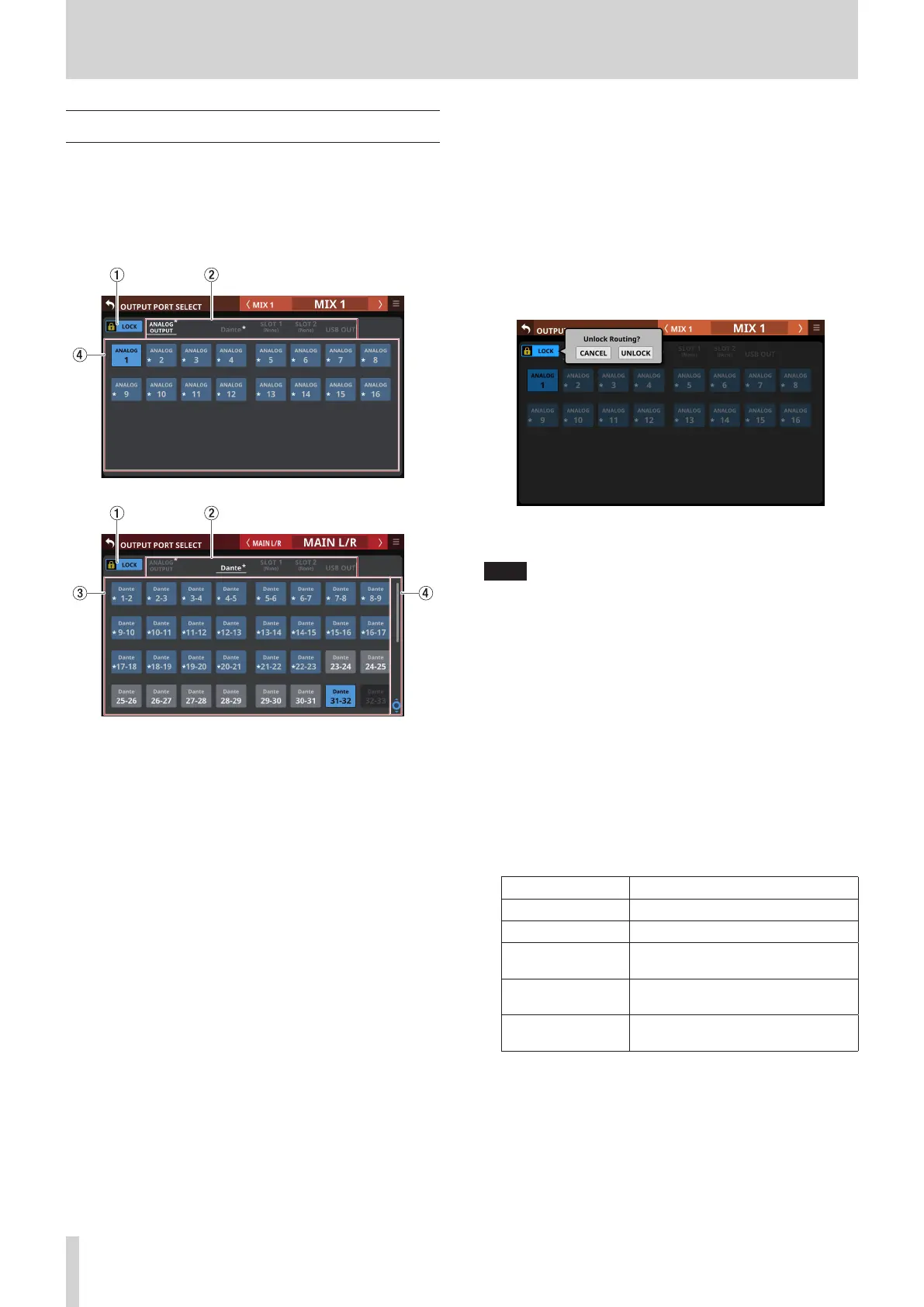

OUTPUT PORT SELECT screen
Set output ports for MIX 1–22 and MAIN L/R Master modules on
this screen.
Tap the OUTPUT button on the MODULE (OVERVIEW) Screen or
the Others button on the MODULE (OUTPUT) Screen of these
modules to open this screen. (See “Output routing” on page
99.)
1 LOCK/UNLOCK button
o This button locks/unlocks routing setting change
operations for the unit. This is always locked at the time of
start up.
o When set to “LOCK”, tapping an output port selection
button (3) will not change the setting.
o When set to “LOCK”, tap this button to open a confirmation
message. Tap the UNLOCK button to close the message
and set it to “UNLOCK”. Tapping the CANCEL button on
the confirmation message will close it and maintain the
locked state.
o Tap this button when set to “UNLOCK” to switch it to
“LOCK”.
NOTE
The LOCK/UNLOCK button (1) setting is shared by the
following routing setting screens.
i MODULE (INPUT) Screen
i MODULE (OUTPUT) Screen
i INPUT SOURCE SELECT Screen
i OUTPUT PORT SELECT Screen
i DIRECT OUT PORT SELECT Screen
i INSERT SEND PORT SELECT Screen
i INSERT RETURN PORT SELECT Screen
2 Output port group page switches
o These show output port group page names.
o Tap a page name to switch to the page with the
corresponding output port group. The name of the
selected page will be highlighted. An * will appear next to
the name of the page that the selected output port is on.
Page name Contents
ANALOG OUTPUT Select analog output ports.
Dante Select built-in Dante output ports.
SLOT 1
Select the output ports of the
expansion card installed in SLOT 1.
SLOT 2
Select the output ports of the
expansion card installed in SLOT 2.
USB OUT
Select USB audio interface output
ports.
3 L/R selection buttons
These select whether to set the output ports of the left or
right channels of stereo modules.
Tap these buttons to switch between left and right. The
selected button will be highlighted.
108 TASCAM Sonicview 16/Sonicview 24 V1.1.0
