Tascam Sonicview 16 User Manual

4 – Mixer configuration and settings

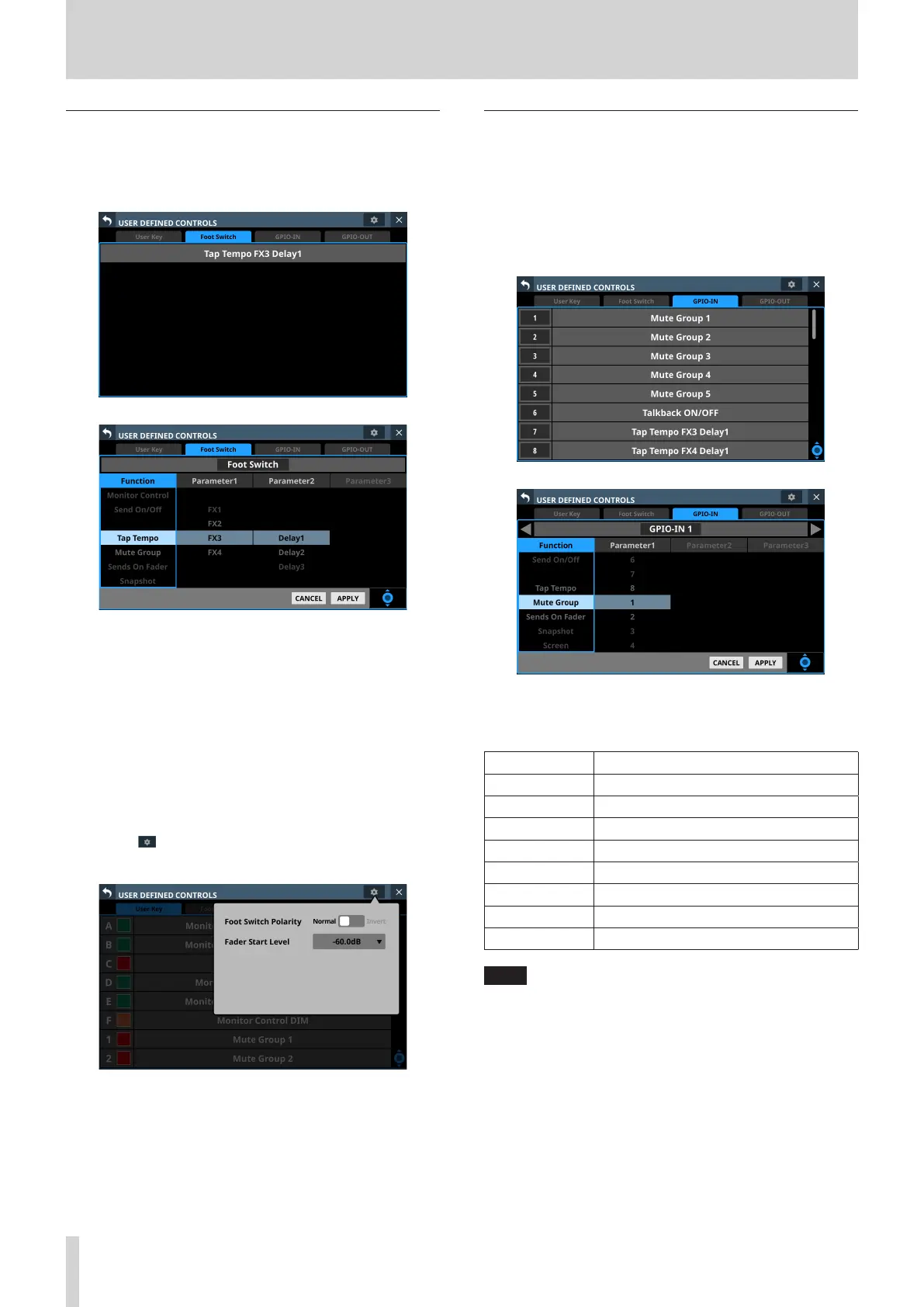

Foot Switch page
Functions can be assigned to the footswitch on this page.
Tap Menu Screen > Rear Panel Setup > FOOT SW Setup to open
this page.
Foot Switch page when setting controls
The factory default setting is “Tap Tempo FX3 Delay1”.
Setting the footswitch polarity
This unit was designed to be used with momentary footswitches
that must be pushed to function (shorted when pushed). Since
the polarity can be reversed, however, push-to-break (shorted
with not pushed) footswitches can also be used.
The setting of this unit can be changed according to the polarity
of the footswitch being used.
1. Tap the button on the USER DEFINED CONTROLS Screen
to open a settings window.
2. Tap the Foot Switch Polarity slider in the window to set the
footswitch polarity.
Options: Normal (default), Invert
GPIO-IN page
On this page, functions can be assigned to the GPIO input
connector of this unit or of a mounted SB-16D connected
through the built-in Dante.
See “Using GPIO extension functions” on page 79 for details
about using the GPIO connector of a mounted SB-16D.
Tap Menu Screen > Rear Panel Setup > GPIO Input Setup to
open this page.
GPIO-IN page when setting controls
The factory default settings are as follows.
Port number Assigned function
1 Mute Group 1
2 Mute Group 2
3 Mute Group 3
4 Mute Group 4
5 Mute Group 5
6 Talkback ON/OFF
7 Tap Tempo FX3 Delay1
8 Tap Tempo FX4 Delay1
NOTE
The GPIO input connector of a mounted SB-16D does not
have functions assigned when shipped from the factory.
48 TASCAM Sonicview 16/Sonicview 24 V1.1.0
