2 – Names and Functions of Parts

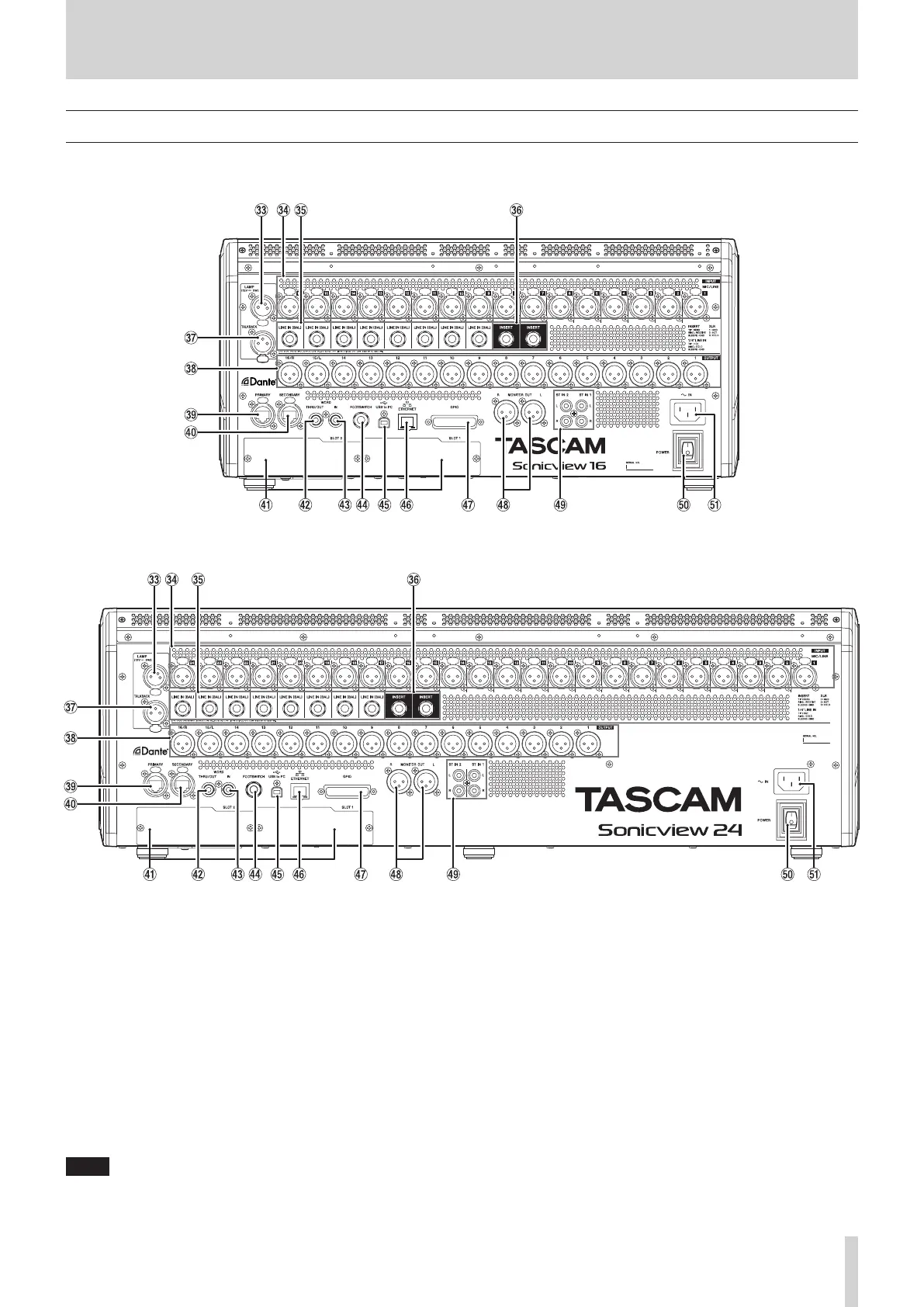

Rear panel
Sonicview 16
Sonicview 24
c LAMP jack
Use this to connect a gooseneck lamp to the illuminate the
top of the unit.
Lamps with 4-pin XLR connectors can be used.
Adjust the lamp brightness on the PREFERENCES Screen. (See
“PREFERENCES screen” on page 34.)
o XLR 4-pin female (pin 4: +12V, pin 3: GND)
v MIC/LINE input jacks
These are balanced XLR jacks for mic/line input.
o XLR (1: GND, 2: HOT, 3: COLD)
b LINE IN (BAL) jacks (TRS phone)
These are 6.3mm (1/4") TRS phone jacks for line input.
o TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
NOTE
i This unit has some channels with two types of input jacks
(XLR and TRS). Do not input signals through both the XLR and
TRS jacks of the same channel at the same time. If signals are
input at the same time, they will not be input properly.
i Only MIC/LINE input jacks (v) provide phantom power.
n INSERT jacks (TRS phone)
Use these 6.3mm (1/4") TRS phone jacks to connect external
devices (including effects).
o TRS (Tip: SEND, Ring: RETURN, Sleeve: GND)
m TALKBACK input jack
o Connect a talkback mic here.
o Use the TALKBACK volume knob (h) to adjust the
talkback input level, and use the TALKBACK key (j) to
turn it on/off.
o Make talkback settings on the MONITOR SETUP screen
TALKBACK/OSCILLATOR page. (See “Making talkback and
built-in oscillator settings” on page 57.)
TASCAM Sonicview 16/Sonicview 24 V1.1.0 11
