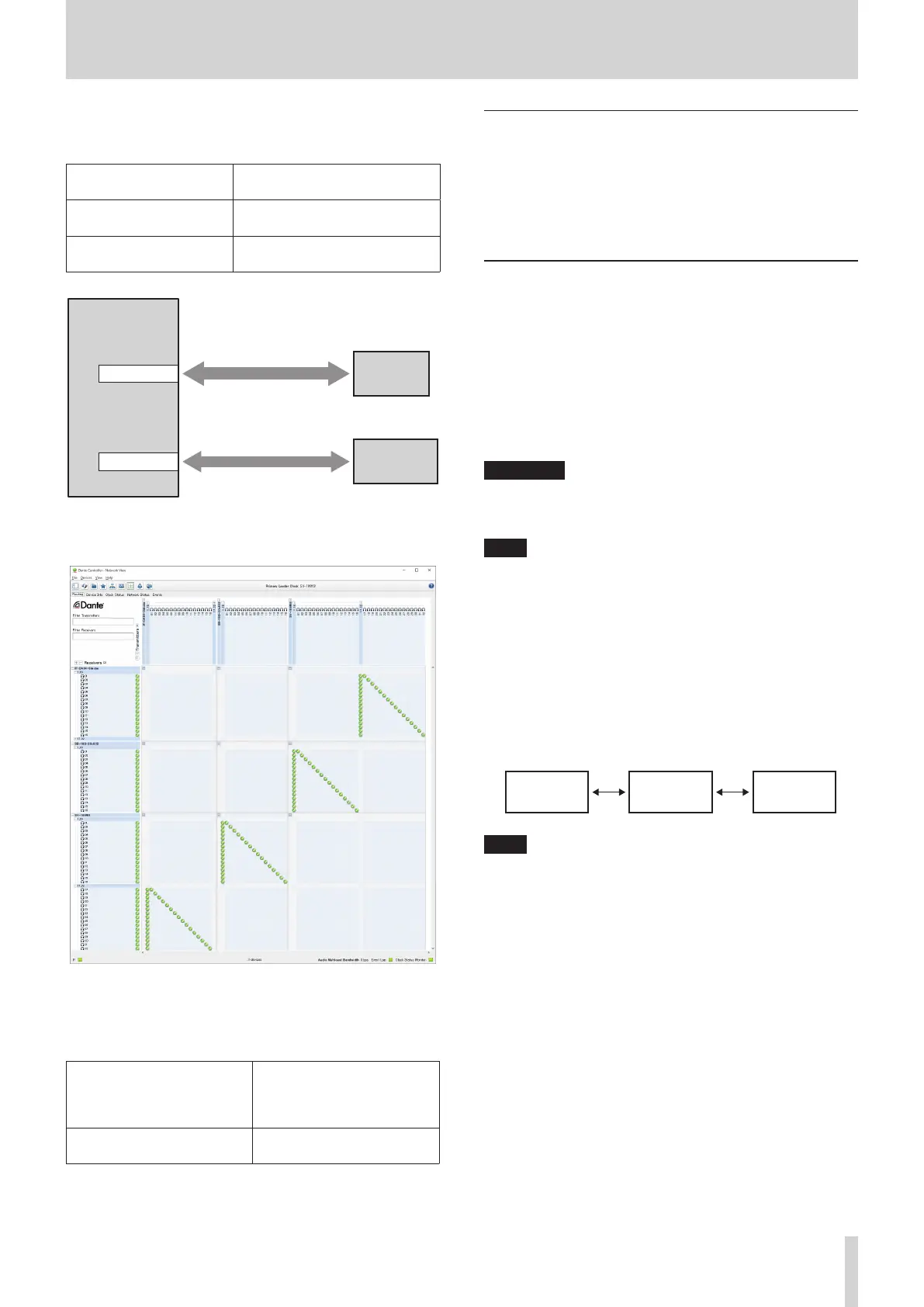

4 – Mixer configuration and settings
Through these procedures, the Dante I/O ports of this unit, the
SB-16D and the IF-DA64 (Dante card) installed in the DA-6400
are routed by Dante as follows.
Dante I/O ports of this
unit
Dante I/O ports of external
devices
Dante I/O 1–16 of this unit
Dante I/O 1–16 of the SB-16D
mounted 1st in the list
Dante I/O 17–32 of this
unit
Dante I/O 1–16 of the IF-DA64
installed in the DA-6400
Sonicview
Dante I/O 1-16
SB-16D #1-1
Dante I/O 17-32
DA-6400
IF-DA64 I/O 1-16
Automatic routing
when mounted
Routing using Dante
Controller
Example of Dante Controller display when the above
routing settings have been made
After completing these procedures, operation becomes possible
for the preamps (Analog GAIN, PAD ON/OFF, Phantom ON/OFF)
of the corresponding SB-16D INPUT on the Home Screen and
MODULE screen of the module that has Dante IN 1–16 input
ports assigned.
Module that can operate SB-
16D preamps
Object of preamp operation
on the Home Screen and
MODULE screen of the
module (at left)
Module with Dante IN 1–16
assigned
INPUT 1–16 of the mounted
SB-16D at the top of the list
Notes about Dante
Dante is a transmission protocol developed by Audinate.
Using networks based on gigabit Ethernet standards, it enables
multichannel (512 IN/512 OUT) transmission and high precision,
for example.
Check the Audinate website for details about Dante.
https://www.audinate.com/
Connecting to a Dante network
In order to set up and use this unit, you must also set up the
Ethernet network that it is connected to, a computer that runs
Dante Controller and other devices that support Dante.
Dante controller is not necessary for use, however, when used
with an SB-16D.
LAN cables used for connections
Use STP cables that are category 5e or higher.
Both crossover and straight cables can be used.
ATTENTION
This unit is not compatible with 100Mbps Ethernet switching
hubs. Always use switching hubs that support Gigabit
Ethernet.
NOTE
i When the Dante Network Addressing setting is AUTO (DHCP),
set the computer to set the IP address automatically.
i When the Dante Network Addressing setting is STATIC, set
the computer to match the Dante and network address.
Switched (daisy chain) connection
Dante devices can be daisy-chained when there are few
connected devices and when not using a switching hub.
Connect them as shown below.
Switched (daisy chain) connection example
Sonicview 16 /
Sonicview 24
Dante
device
Dante
device
NOTE
i When using a switched (daisy chain) connection, connect to
either the PRIMARY or SECONDARY connector.
i If the number of connected devices increases, raising the
latency setting will be necessary.
Redundant connection
For recording situations where retakes are not possible,
including live performances, a connection set up like the
following uses two completely independent primary and
secondary networks.
TASCAM Sonicview 16/Sonicview 24 V1.1.0 85
