Tascam Sonicview 16 User Manual

4 – Mixer configuration and settings
Using GPIO extension functions
If the SB-16D GPIO pin operation mode is set to “Extension”, they
can be used as Sonicview GPIO extension pins.
This setting can also be made for virtually mounted SB-16D
units.
By storing the settings in the Sonicview, online setting is
possible.
Setting procedure
1. Following the instructions in “GPIO Extension Settings
Screen” on page 74 for the “Overall operation mode for
the GPIO port buttons” (2) or “ Operation mode switching
buttons for individual ports” (8), set the operation mode
for the ports you want to use as a GPIO extension for this
unit to “Extension”.

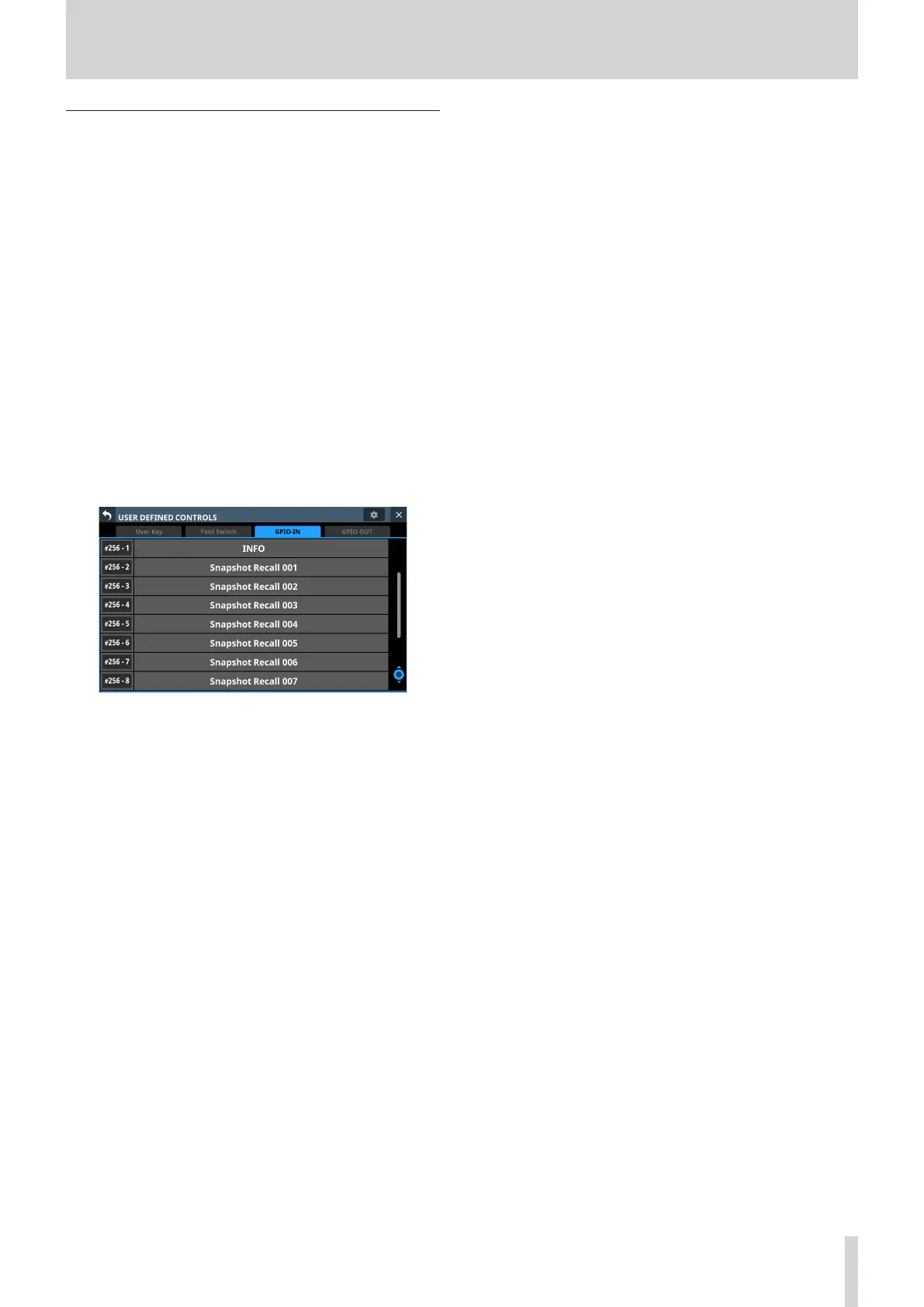

2. Use the following procedures to open GPIO-IN and GPIO-
OUT screens.
i Tap Menu Screen > Rear Panel Setup > GPIO Input
Setup
i Tap Menu Screen > Rear Panel Setup > GPIO Output
Setup
3. Use LCD knob 8 to scroll the list of settings for groups of 8
ports that correspond to mounting positions.
i In the SB-16D GPIO pin name area, SB-16D IDs and port
numbers are shown in a “#ID [port number]” format.
i If the device is virtually mounted, the GPIO port name
background will appear yellow.
i Ports with operation mode set to Extension in the list
will be highlighted.
i Ports with operation mode set to Local in the list will
be shown in gray.
4. Tap the port you want to set in the list and assign functions
using the same procedures as with the unit’s built-in GPIO.
TASCAM Sonicview 16/Sonicview 24 V1.1.0 79
