4 – Mixer configuration and settings

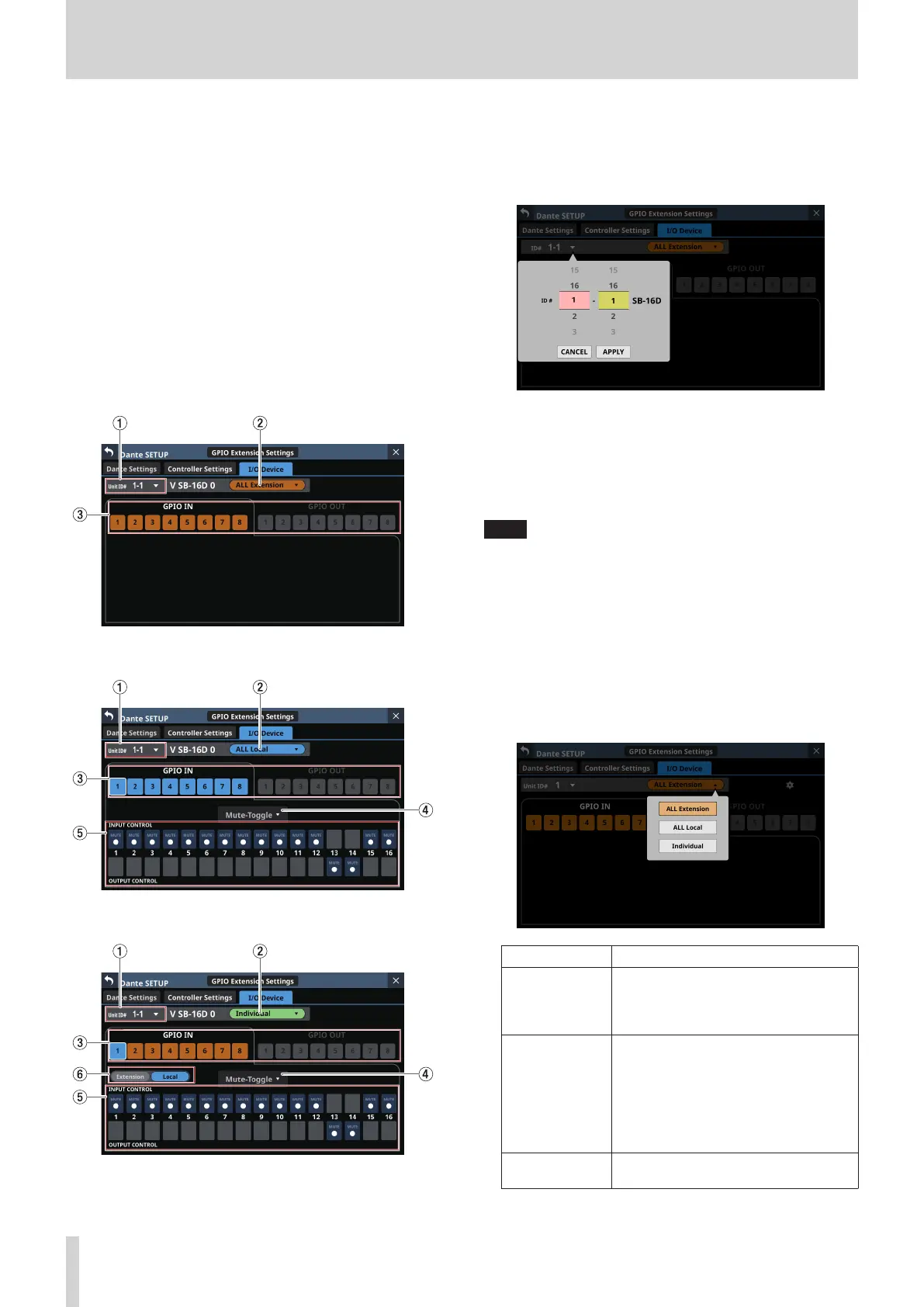

GPIO Extension Settings Screen
The SB-16D GPIO port has the following functions.
GPIO-IN
i Muting control of SB-16D input and output signals (Local
mode function)
i Mounted Sonicview extension GPIO-IN port operation
(Extension mode function)
GPIO-OUT
i Tally output for muting states of SB-16D input and output
signals (Local mode function)
i Mounted Sonicview extension GPIO-OUT port operation
(Extension mode function)
The following settings to use these functions can be made on
this screen.
ALL Extension mode
ALL Local mode
Individual mode
1 ID
o This shows the current ID.
o Tap this area to open a window where the ID can be
changed.
Swipe the options up and down to change the ID.
Selections can also be changed by turning the LCD Knobs
2 and 3, which are lit pink and yellow.
i Tap the APPLY button to change the selected ID.
i Tap the CANCEL button to close the window without
changing the ID.
NOTE
i If an ID that is already being used on the Dante network is
selected, that ID will be red and the APPLY button will appear
gray, showing the setting cannot be made.
i Changing the ID when mounted could cause it to become
unmounted.
2 GPIO port overall operation mode
o This shows the overall operation mode for the GPIO port.
o Tap this area to open a window where the overall
operation mode for the GPIO ports of the SB-16D can be
changed.
Option Explanation
ALL Extension
The ALL Extension mode setting uses all
GPIO ports as GPIO extension pins of the
Sonicview that the SB-16D is mounted
in.
ALL Local
The ALL Local mode setting uses all GPIO
ports as pins that do the following.
i GPIO-IN: SB-16D input/output signal
muting control
i GPIO-OUT: Tally output for muting
states of SB-16D input/
output signals
Individual
In this mode, the operation of each GPIO
port is set individually.
Tap an option to switch the overall operation mode for the
GPIO port of the SB-16D.
74 TASCAM Sonicview 16/Sonicview 24 V1.1.0
