Tascam Sonicview 16 User Manual

5 – Routing

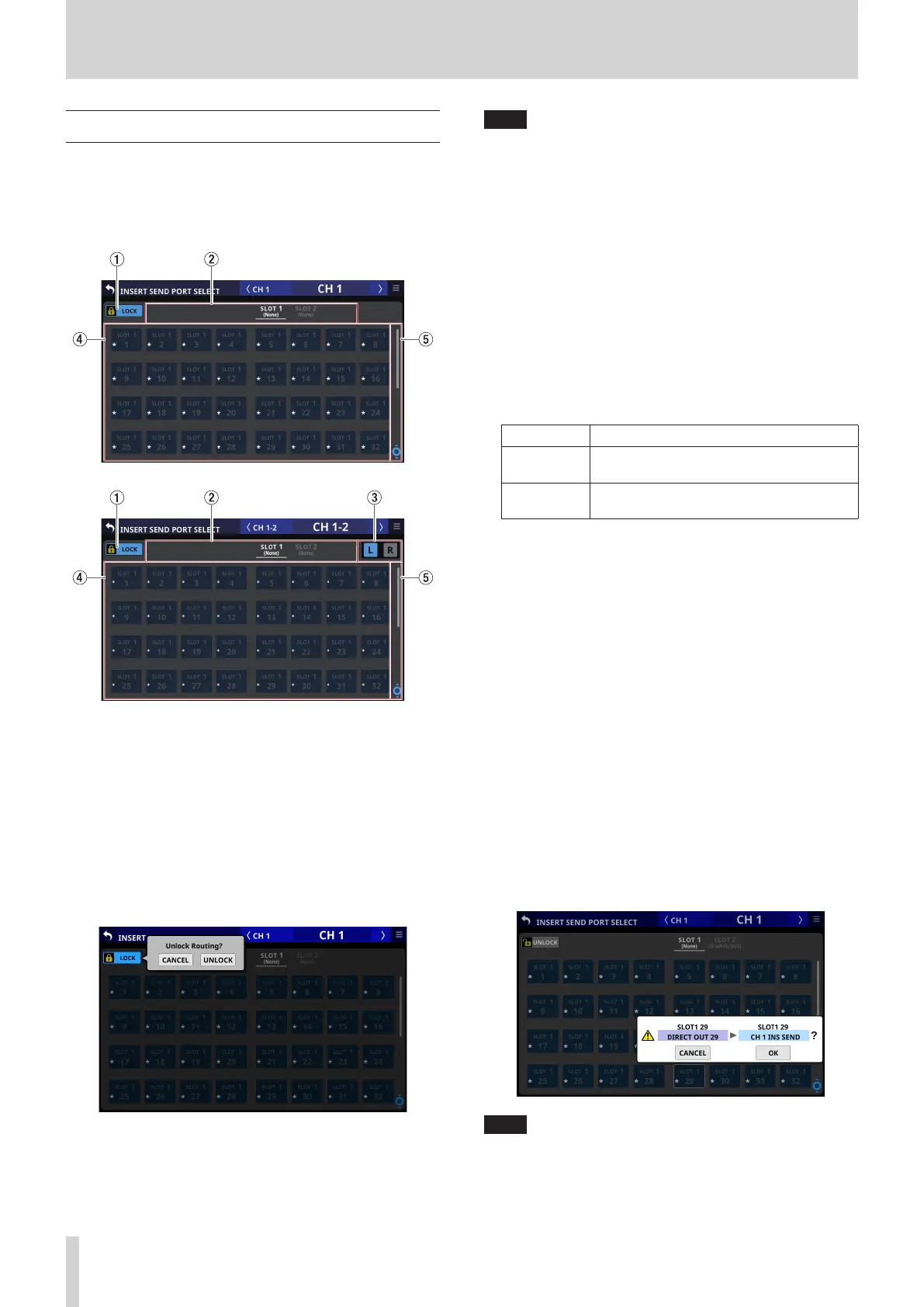

INSERT SEND PORT SELECT screen
Set INSERT SEND signal output ports for CH 1–40, MIX 1–22 and
MAIN L/R Master modules on this screen.
Tap the SEND button on the MODULE (OVERVIEW) Screen of
these modules to open this screen. (See “Insert input and output
routing” on page 98.)
1 LOCK/UNLOCK button
o This button locks/unlocks routing setting change
operations for the unit. This is always locked at the time of
start up.
o When set to “LOCK”, tapping an output port selection
button (3) will not change the setting.
o When set to “LOCK”, tap this button to open a confirmation
message. Tap the UNLOCK button to close the message
and set it to “UNLOCK”. Tapping the CANCEL button on
the confirmation message will close it and maintain the
locked state.
o Tap this button when set to “UNLOCK” to switch it to
“LOCK”.
NOTE
The LOCK/UNLOCK button (1) setting is shared by the
following routing setting screens.
i MODULE (INPUT) Screen
i MODULE (OUTPUT) Screen
i INPUT SOURCE SELECT Screen
i OUTPUT PORT SELECT Screen
i DIRECT OUT PORT SELECT Screen
i INSERT SEND PORT SELECT Screen
i INSERT RETURN PORT SELECT Screen
2 Output port group page switches
o These show output port group page names.
o Tap a page name to switch to the page with the
corresponding output port group. The name of the
selected page will be highlighted. An * will appear next to
the name of the page that the selected output port is on.
Page name Contents
SLOT 1
Select the output ports of the expansion
card installed in SLOT 1.
SLOT 2
Select the output ports of the expansion
card installed in SLOT 2.
3 L/R selection buttons
These select whether to set the output ports of the left or
right channels of stereo modules.
Tap these buttons to switch between left and right. The
selected button will be highlighted.
4 Output port selection buttons
o When the LOCK/UNLOCK button (1) is set to “UNLOCK”,
tap these buttons to select output ports. The selected
button will be highlighted light blue. Buttons that cannot
be used will appear dark gray. If a button that cannot be
used is selected, it will appear dark blue.
o For stereo modules, “L” will be shown to the bottom left
of the button selected for the left channel and “R” will be
shown to the bottom right of the button selected for the
right channel.
o An * will appear on the buttons of ports that are already
assigned to other modules, and the buttons will appear
grayish blue. Tap these buttons to open a setting
confirmation window. Tap the OK button to change the
setting and close the window. Tap the CANCEL button to
close the window without changing the setting.
NOTE
The signal from a single module can be assigned to multiple
output ports.
106 TASCAM Sonicview 16/Sonicview 24 V1.1.0
