Acquiring Waveforms
3-46
CSA7000B Series & TDS7000B Series Instruments User Manual

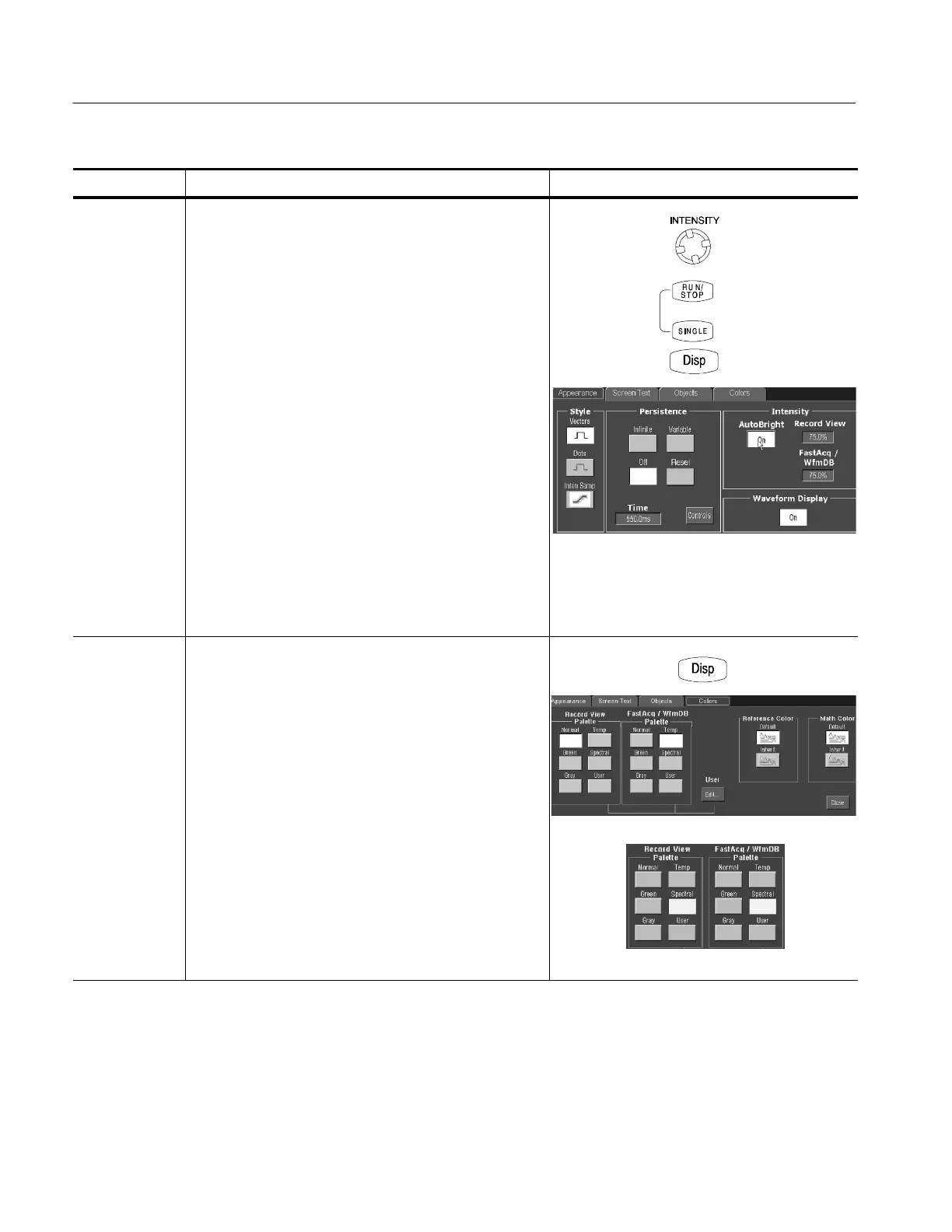

Overview Control elements and resourcesTo turn Fast Acquisitions on and off (Cont.)
To adjust the
intensity
8. Rotat e the INTENSITY knob to adjust the intensity of
displayed waveforms, or touch Intensity and enter the
intensity value with the keypad or the multipurpose
knob.
Or
9. Touch the DISP button and select the Appearance tab.
10. Touch Waveform AutoBright to toggle between On and
Off.
H On automatically sets the intensity maximum to the
value of the most frequent event.
H Off lets the displayed brightness depend on the
trigger rate, creating a display like an analog
instrument.
11. To change the intensity setting for fast acquisition and
waveform database waveforms, touch FastAcq/WfmDB
and enter the intensity value with the keypad or the
multipurpose knob.
To select the
color palette
12. Touch the DISP button and select the Colors tab.
Normal, Green, and Gray give the appearance of an
intensity-graded display similar to an analog instrument.
Spectral and Temp use hue to indicate the frequency of
occurrence and to highlight events.
User and User Palette let you create a custom color
palette.
13. Choose the Spectral color palette.
In Fast Acquisition mode, Temp and Spectral show more
detail than the other color palettes.
For a definition of each color palette, see Color Palett e
on page 3--132.
