Measuring Waveforms
3- 160
CSA7000B Series & TDS7000B Series Instruments User Manual
Overview Related control elements and resourcesTo start and reset histogram counting (Cont.)
Set histogram
limit controls

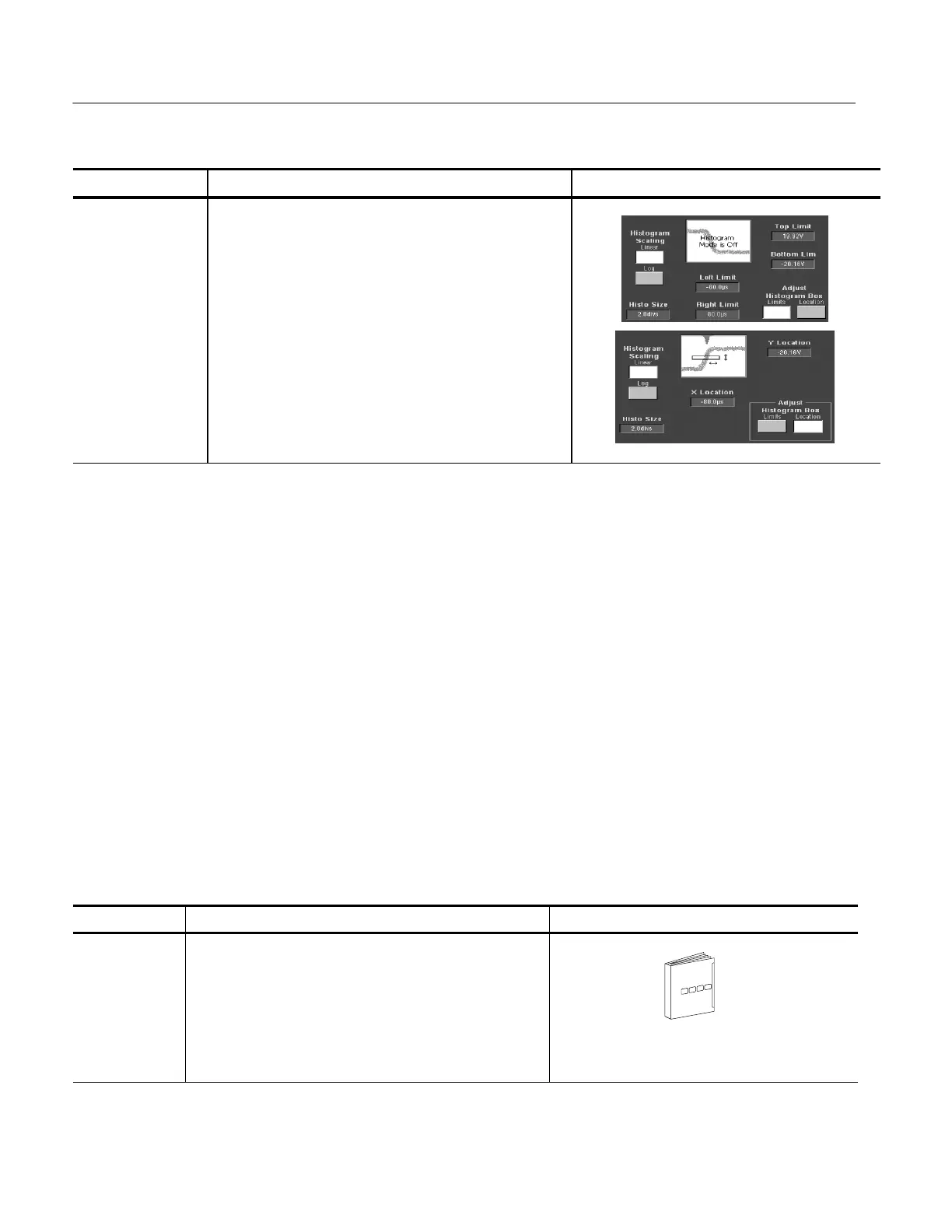

9. Touch Adjust Histogram Box Limits, and use the Top
Limit, Bottom Limit, Left Limit, and Right Limit controls
to set the size of the histogram box. The histogram box
selects the section of the waveform used for histograms.
10. Touch Adjust Histogram Box Location, and use the X
Location and Y Location controls to set the location of
the histogram box.
Table B--1 on page B--1 includes a list of the available histogram measurements
and a brief description of each.
Optimizing Measurement Accuracy
The procedures given here will increase the accuracy of the measurements that
you take.
This instrument can compensate itself and the attached probes, optimizing the
internal signal path used to acquire the waveforms you measure. Compensation
optimizes the capability of the instrument to take accurate measurements based
on the ambient temperature.
If you are using optical signals (CSA7000B Series only), see Optical Dark
Compensation on page 3--58 to perform a dark level calibration.
To compensate the instrument so that it can take accurate measurements based on
the ambient temperature, use the procedure that follows.
Overview To compensate the instrument Related control elements and resources
Prerequisites
1. Inst rum ent should be powered on. Allow a 20 minute
warm up. Remove all input signals.
See page 3--29 for acquisition setup and Power on the
Instrument on page 1--9.
Histogram
Measurements
To Compensate the
Instrument
To Next Page
Need help?
General
