2-10
CSA7000B Series & TDS7000B Series Instruments User Manual

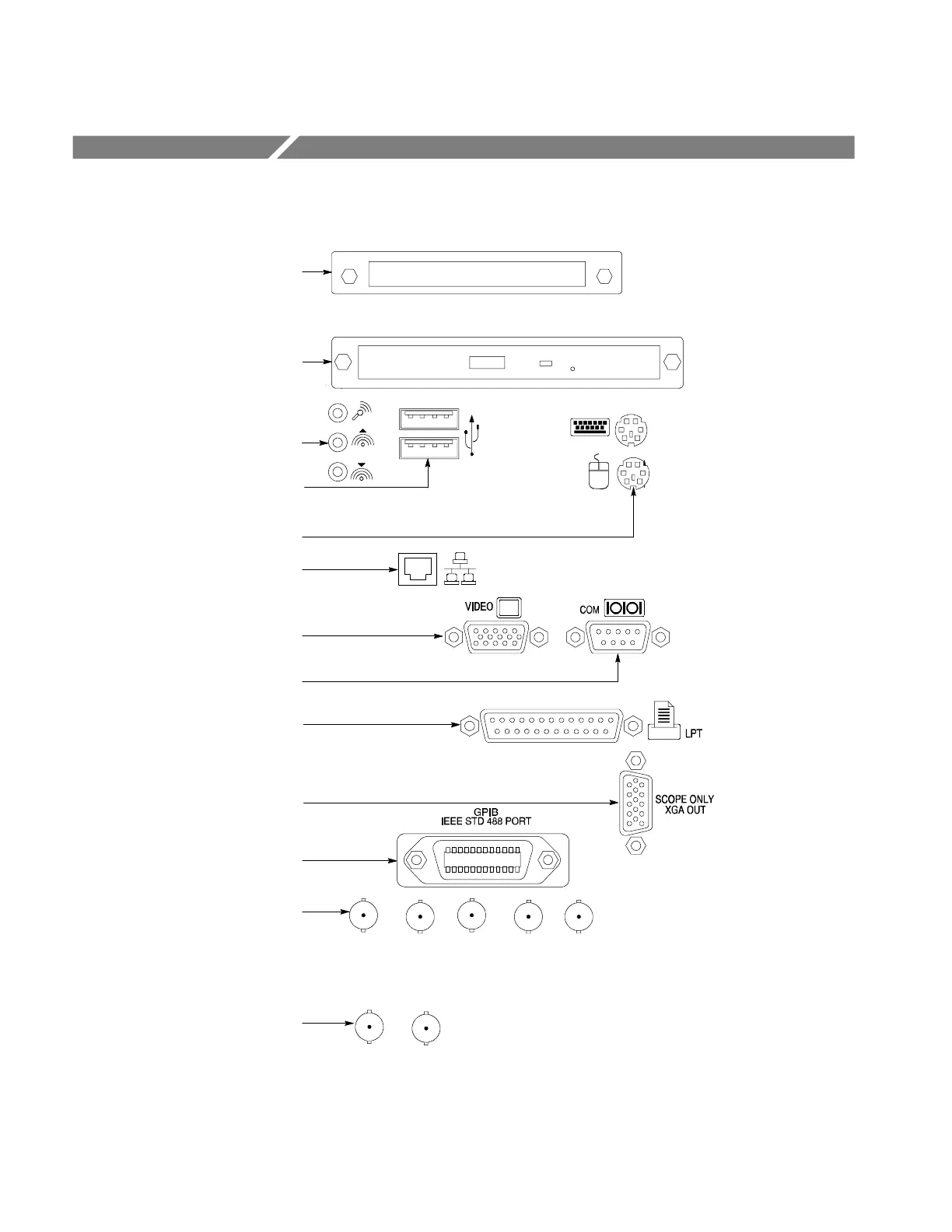

Rear Panel I/O Map
RJ-45 connector to connect to network
Removable hard disk drive to provide
individual environment for each user or to
secure data. Loosen thumb screws and
pull to release
USB connector for mouse or
keyboard and mouse
Upper Video port to connect a
monitor for side-by-side display
COM1 serial port
Lower XGA port to connect a
monitor for instrument display
PS-2 connectors for mouse and keyboard
Parallel port (Centronics) to
connect printer or other device
GPIB port to connect to controller
CD-RW drive accessible from
Windows. Press to open
CSA7000B Series: Auxiliary (external
trigger) input. Auxiliary (trigger) output
signal. Analog (CH 3) signal output; scale
and offset controlled by CH3 controls.
External reference input and internal
reference output
TDS7000B Series: External reference
input and internal reference output
Connectors for speaker and microphone
