Data Input/Output
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 231

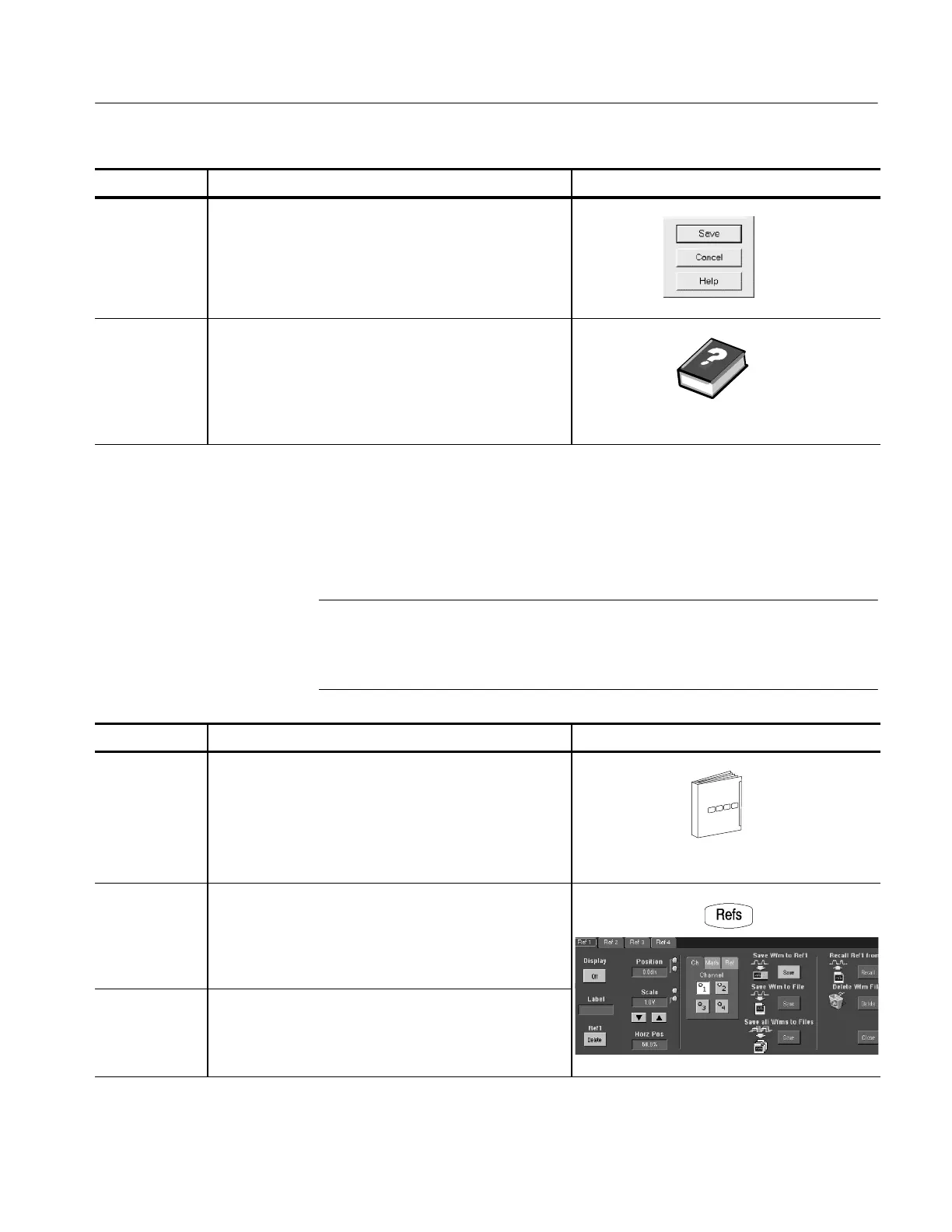

Overview Control elements and resourcesTo save a waveform (Cont.)
Save your
waveform
10. Touch the Save button to save the waveform file or
reference. To cancel without saving, touch the Cancel
button.
For further
assistance
11. For more help on saving waveforms, touch the Help
button in the toolbar to access the contextual online
help.
See page 3--263 to learn about using online help.
Use the procedure that follows to recall a waveform to a reference. You can only
recall waveforms into references.
NOTE. Reference waveforms do not recall because they are already reside in the
instrument. You can copy a reference waveform to another reference: first
display the reference to be copied, and then use the Save Waveform procedure to
save it to another reference (Ref1-Ref4).
Overview To recall your waveform Control elements and resources
Prerequisites 1. The inst rum ent must be powered up. You must have
access to a waveform saved by the instrument.
H See Powering On the Instrument on page 1--9.
Display the
reference
control window
2. From the toolbar, touch Refs, and then select the Ref 1
to Ref 4 tab of the reference in which you want to recall
the waveform.
Recall the
waveform
3. If recalling an internal reference, touch Display to toggle
the display of the reference waveform on.
To Recall Your Waveform
