Displaying Waveforms
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 127
Overview Control elements and resourcesTo zoom waveforms (Cont.)
Select zoom

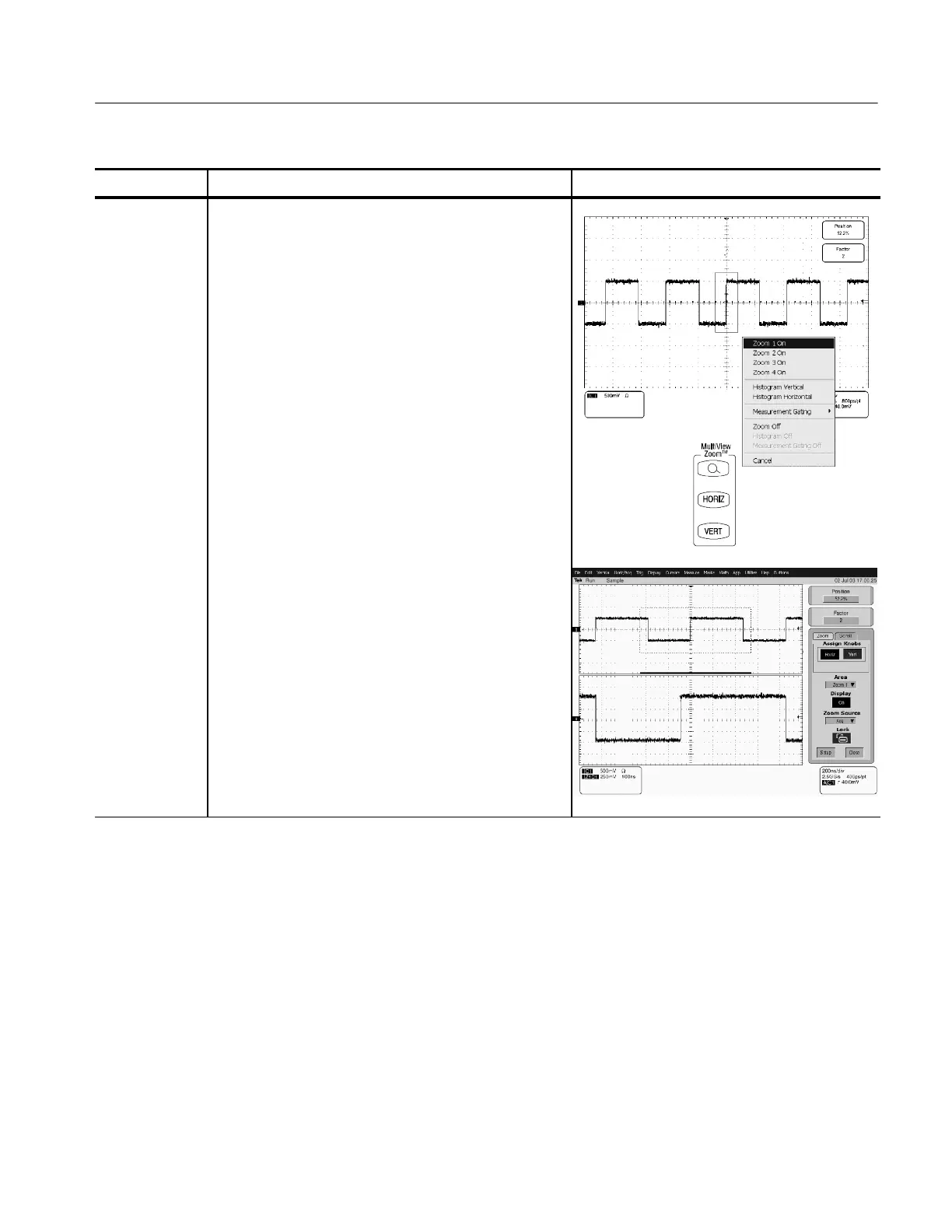

2. You can select zoom in two ways:
H To zoom a waveform, touch and drag across the
segment of the waveform that you want to see in
greater detail. Then select Zoom 1 On, Zoom 2 On,
Zoom 3 On, or Zoom 4 On to magnify the
highlighted waveform segment in one of the 4
zoom areas.
Note. The instrument displays the box-enclosed area on
the waveform magnified in the graticule. If two graticules
are shown, the magnified waveform is shown in the
bottom graticule.
H Push the MultiView Zoom button to split the screen
and add a zoom graticule.
If the instrument creates two graticules, the magnified
waveform(s) is displayed in the lower graticule, and the
unmagnified waveform(s) in the upper graticule. Use the
Zoom Setup menu to change the graticule size.
