Triggering
3-92
CSA7000B Series & TDS7000B Series Instruments User Manual

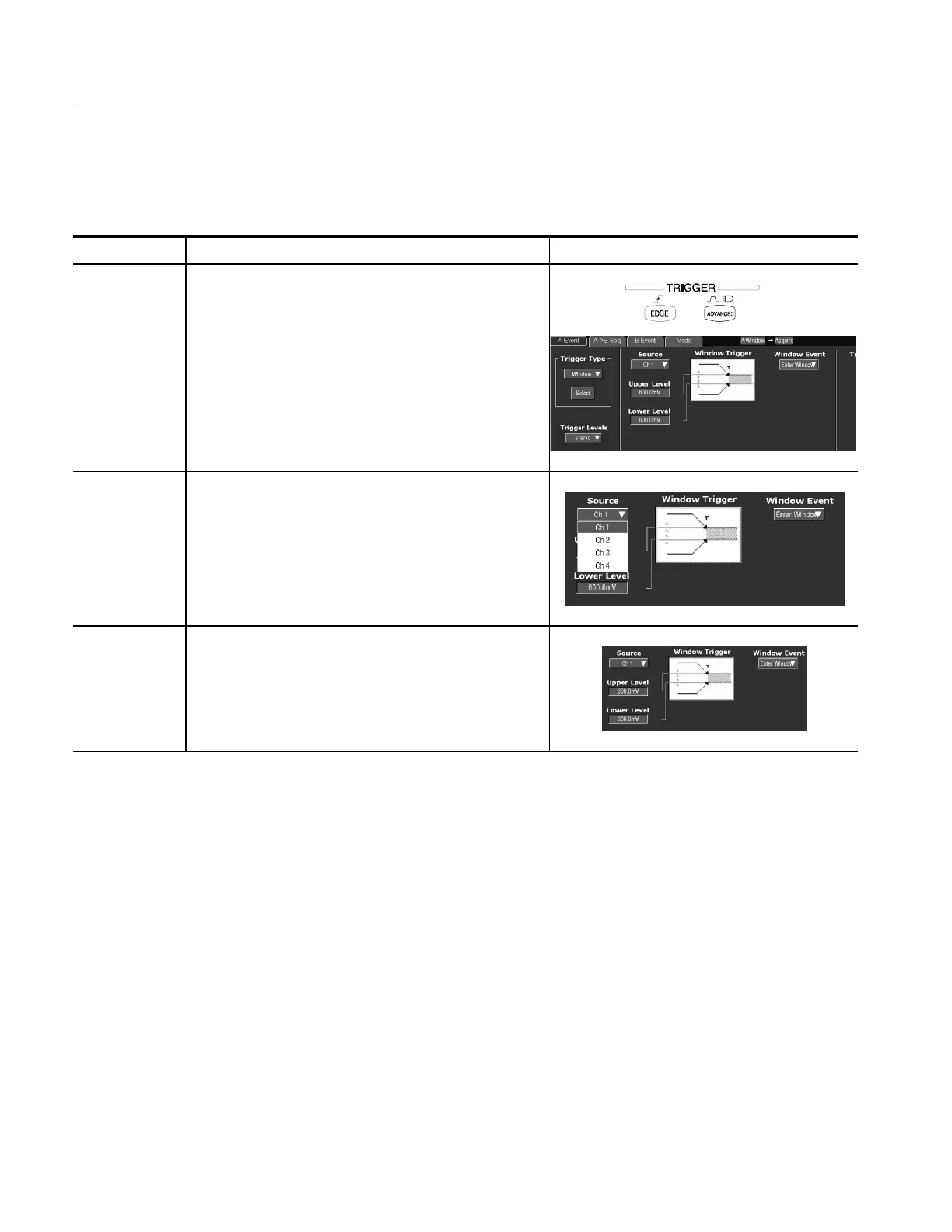

Use this procedure to trigger the instrument when the input signal enters or
leaves a window set by an upper or lower threshold level.
Overview To trigger on a window threshold violation Control elements and resources
Select window
triggering
1. Push the front-panel ADVANCED button.
2. On the Trigger Setup control window, select the A Event
tab, and touch Select.
3. Touch Window.
Select the
source
4. To specify which channel becomes the trigger source,
touch Source and select the source from the list.
Set the
thresholds
5. The upper and lower threshold levels define the voltage
limits of the window. To set the threshold levels, touch
Upper Level or Lower Level, and use the multipurpose
knobs or pop-up keypad to set the values.
Triggering on a Window
To Next Page
