Displaying Waveforms
3- 124
CSA7000B Series & TDS7000B Series Instruments User Manual
Use the procedure that follows to become familiar with the display adjustments
you can make.

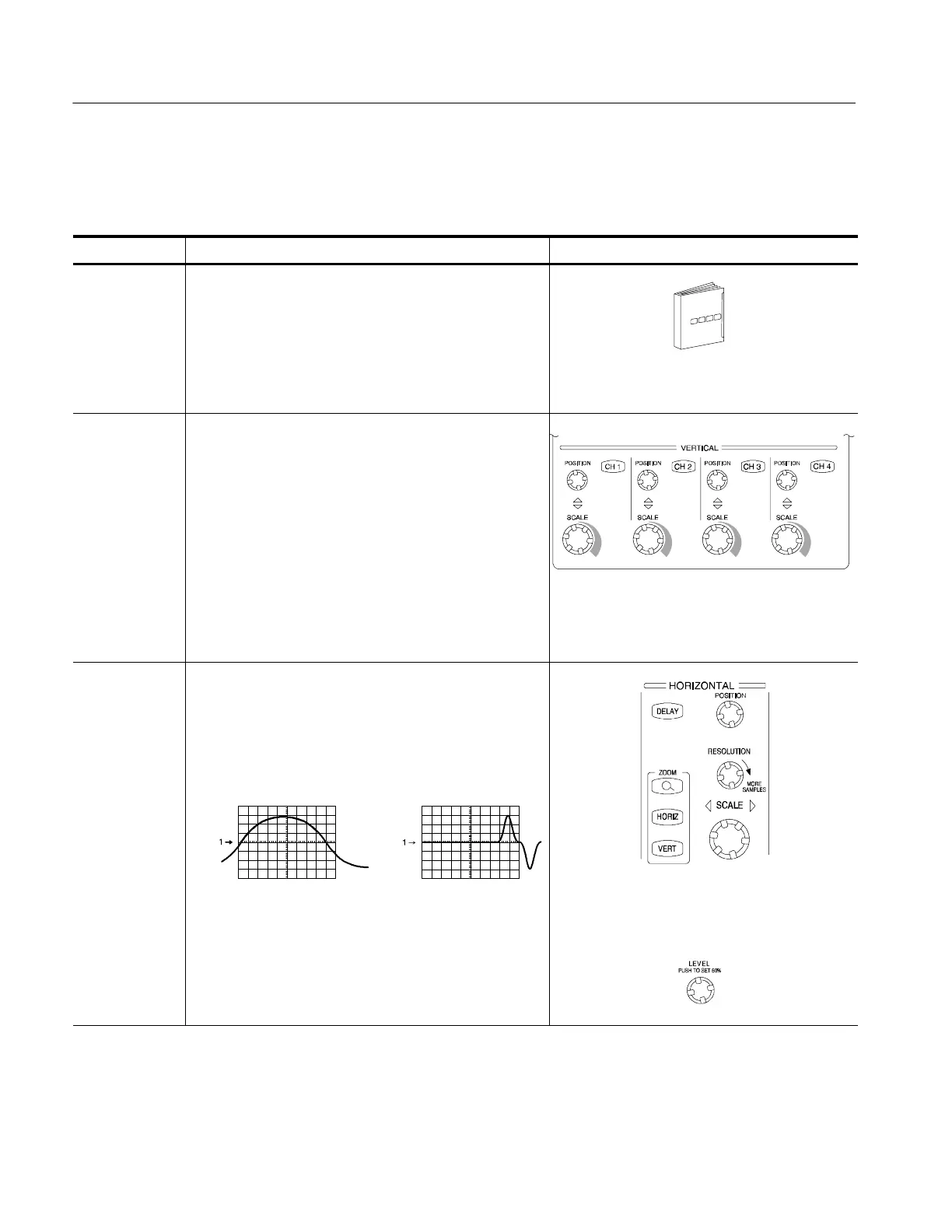

Overview To display waveforms in the main graticule Related control elements and resources
Prerequisites
1. The instrument must be installed and operating.
2. The acquisition system should be set to run
continuously.
See page page 3--29 for acquisition setup and
page 3--63 for trigger setup.
Set vertical
display
parameters
3. Push a channel button to select the waveform (it
displays).
A channel button lights when its channel is on.
Note. For information on math waveforms, see To
Define a Math Waveform on page 3--175. For
information on reference waveforms, see Saving
and Recalling Waveforms on page 3--227.
4. Use the Vertical knobs to achieve a good display
of each waveform that you select.
Set horizontal
display
parameters
5. To make sure the main graticule is selected, push the
MultiView Zoom button to toggle it off. Use the horizontal
knobs to scale and position the waveform on screen and
to set sample resolution.
Positioned HorizontallyScaled Horizontally
The Resolution knob sets the record length. (See
discussion of record length on page 3--21.)
Push PUSH TO SET TO 50% if required to stabilize
display.
To Display Waveforms in
the Main Graticule
To Next Page
