Creating and Using Math Waveforms
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 215
The following procedure is an example of setting up the instrument to perform
spectral analysis of a signal. This example uses the probe compensation signal
available on the front panel of the instrument.
Overview Spectral math example Control elements and resources

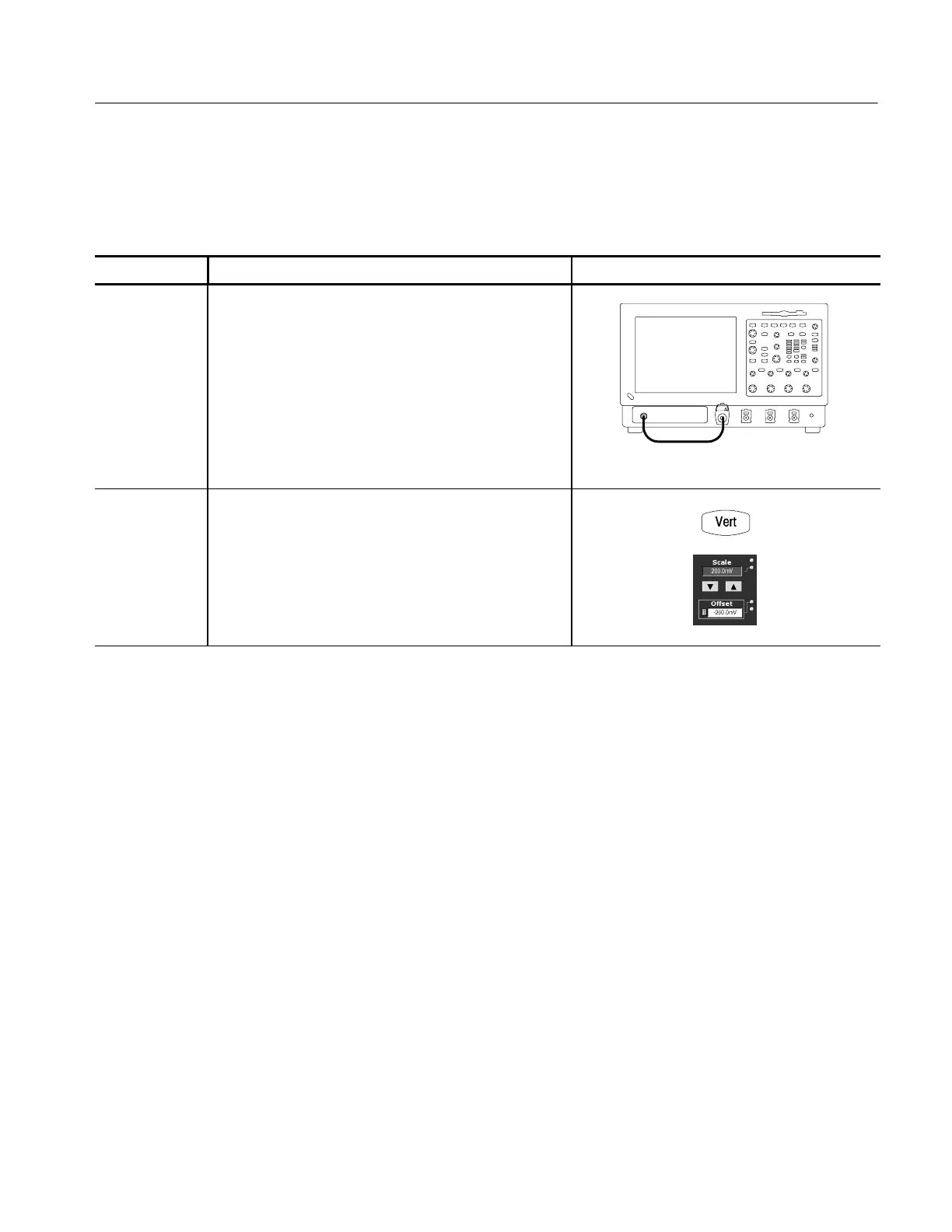

Install the test
hookup
1. Conne
t the probe
ompens
tion sign
l to CH 1 through
a suitable cable and adapter.
2. Press DEFAULT SETUP.
3. Press AUTOSET.
Display the
waveform
4. From the toolbar, touch Vert, and select the
Chan 1 tab.
5. Touch Offset, and using the multipurpose knobs or
keypad, set the offset to - 260 mV and the Ch1 Scale to
200 mV.
Spectral Math Example
To Next Page
