Displaying Waveforms
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 135

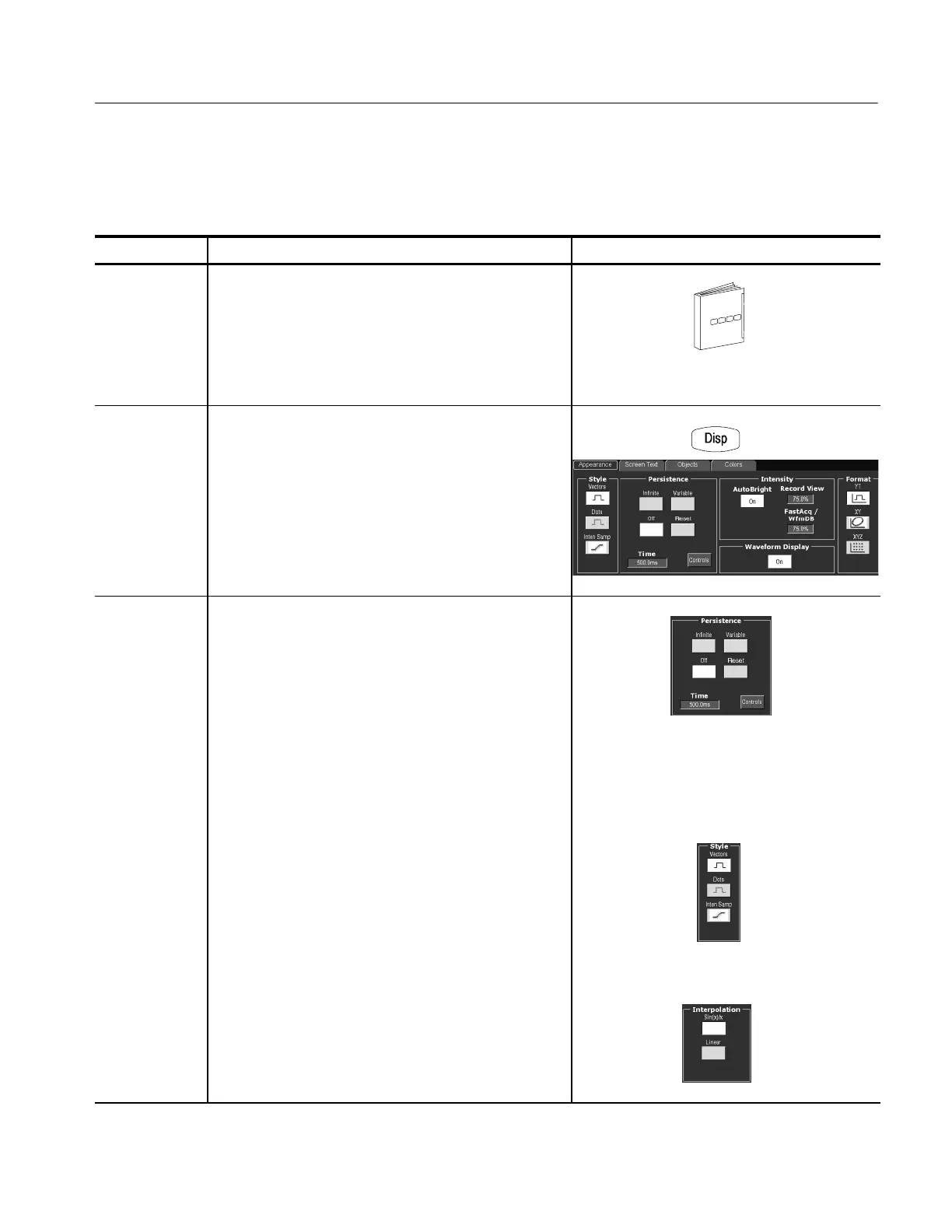

Use the procedure that follows to become familiar with the display adjustments
that you can make.
Overview Set display styles Related control elements and resources
Prerequisites
1. The instrument must be powered up, with any waveform
you want to display on screen.
See page 3--29 for acquisition setup and page 3--63 for
trigger setup.
Access the
display setup
dialog box
2. From the toolbar, touch Disp, and then select the
Appearance tab. See right.
Select the
display style
and
persistence
and waveform
interpolation
mode
3. From display Persistence, choose a persistence mode:
H Off displays Waveforms with new data replacing
the data from previous waveform acquisitions (no
persistence).
H Infinit e persistence continuously accumulates
record points until you change an acquisition
setting.
H Variable persistence accumulates record points for
a specified time. Each point decays in a set time
interval.
4. From display Style, select an available style:
H Vectors displays lines between waveform dots.
H Dots displays waveform record points as dots.
H Inten Samp displays actual samples as bright dots
and blacks out interpolated samples.
Note. Adjustment of display intensity may be necessary
to set display intensity to the desired level.
5. Select an Interpolation mode by choosing Sin(x)/x or
Linear. For more information see Interpolation on
page 3--134.
Set Display Styles
To Next Page
