Measuring Waveforms
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 149

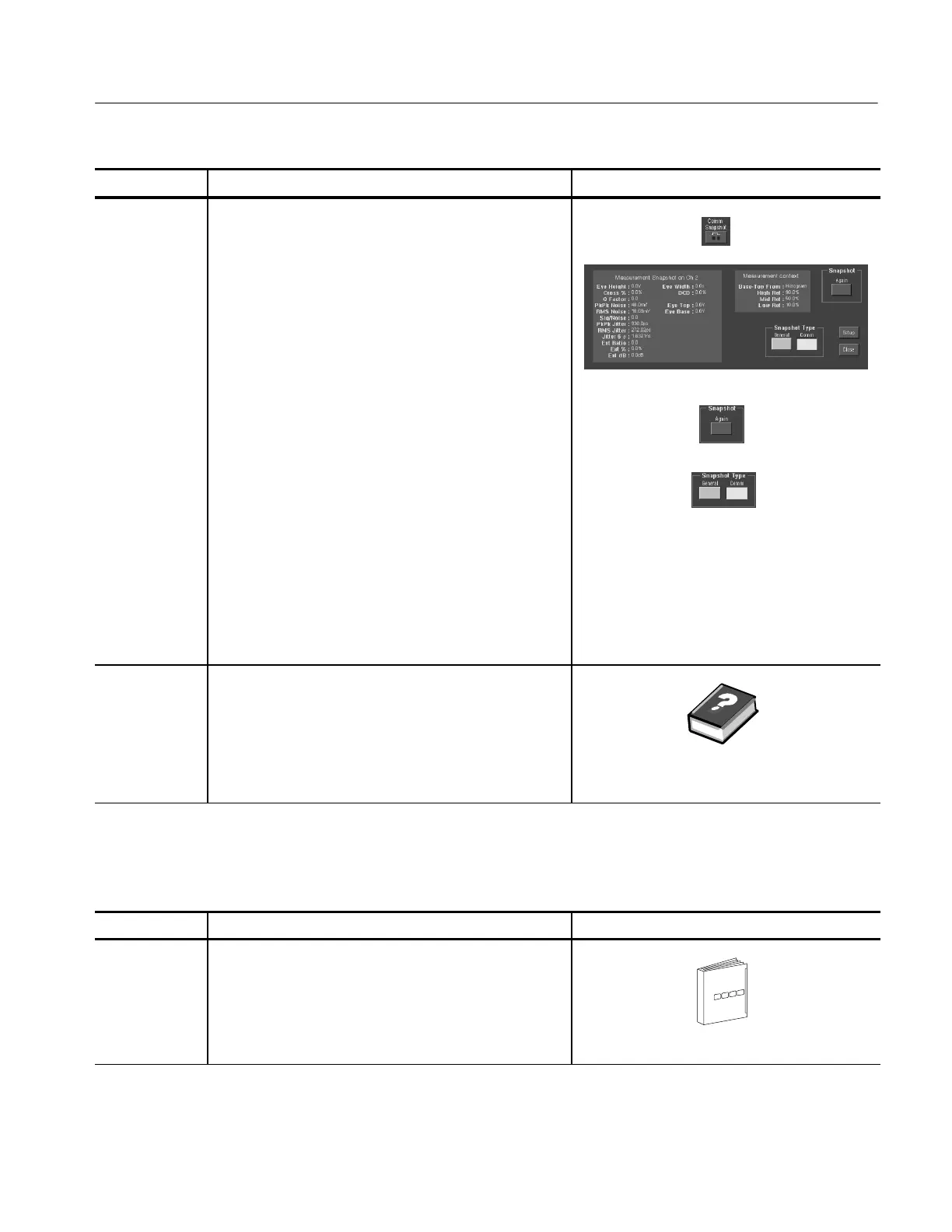

Overview Related control elements and resourcesTo take automatic measurements (Cont.)
Take a
snapshot of
measurements
21. From the Measurement setup control window, touch the
Snapshot button (Comm Snapshot button if the Comm
tab is selected) to display a window of all single
waveform measurements or Comm measurements
(optional on TDS7000B Series).
Note: Snapshot measurements are taken on the
selected waveform. The Snapshot window tells you the
waveform that the measurements are being taken on
and the reference levels used.
22. Snapshot measurements are not continuously updated.
To update snapshot measurements, touch the Snapshot
Again button.
To select the type of snapshot measurements, touch one
of the Snapshot Type buttons:
H Comm. Selects snapshots of Comm measurements
(optional on TDS7000B Series)
H General. Selects all single waveform measure-
ments
Phase, Delay, and Histogram measurements are not
included in a snapshot.
For further
assistance
23. Touch the Help button in the Measurements setup
control window to access the online assistance.
24. See Appendix B: Automatic Measurements Supported,
on page B--1 for a list of the measurements and their
definiti ons.
See page 3--263 to learn about using online help.
Use the procedure that follows to take a measurement over a segment of the
waveform (otherwise, the entire waveform is included in the measurement).
Overview To gate a measurement Related control elements and resources
Prerequisites
1. Set up as from last procedure.
See To Take Automatic Measurements on page 3--144
To Localize a
Measurement
