Measuring Waveforms
3- 150
CSA7000B Series & TDS7000B Series Instruments User Manual

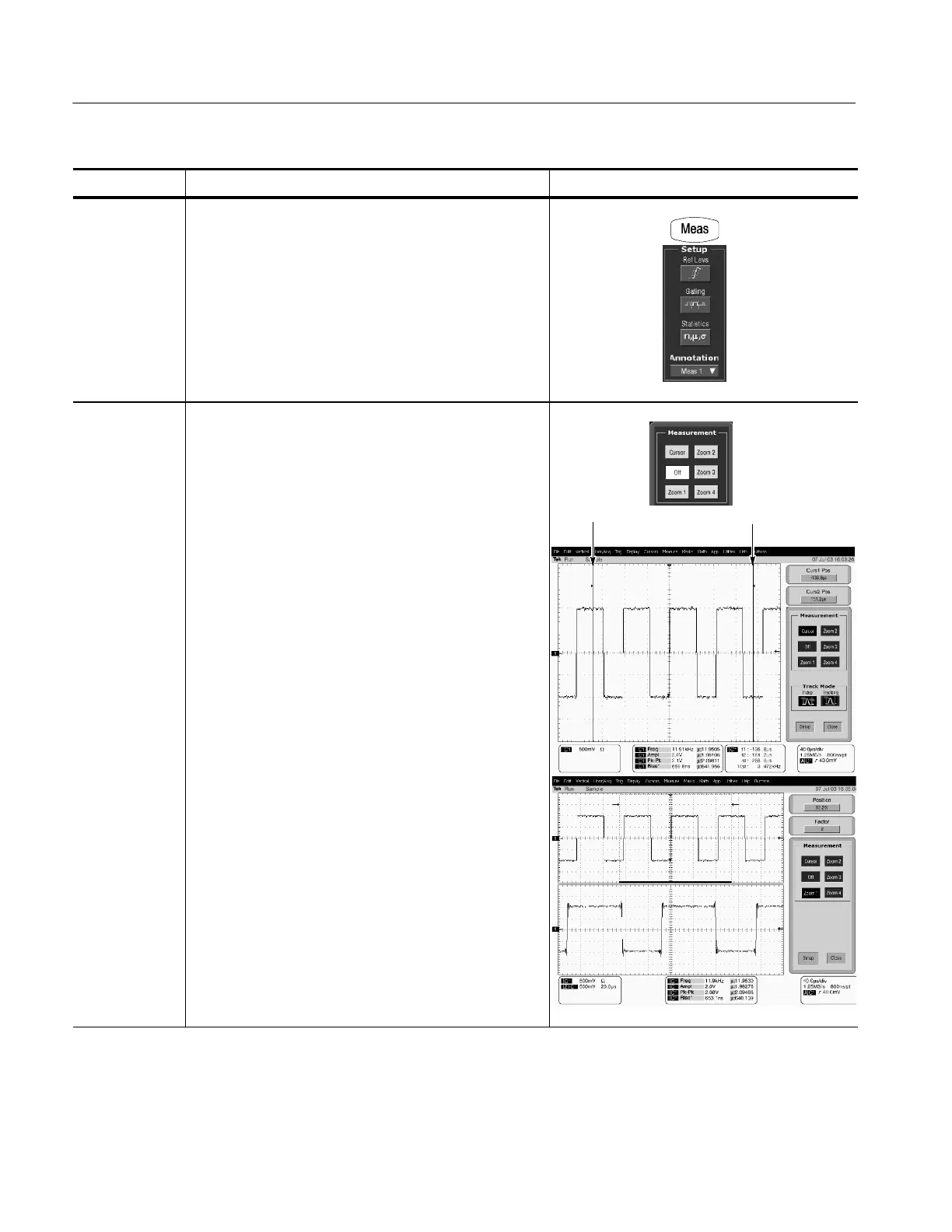

Overview Related control elements and resourcesTo gate a measurement (Cont.)
Access gating
2. From the toolbar, select Meas, and then select Gating
from the Measurement setup control window.
Enable and
position the
gates
3. To select how to control the gated area, touch
Measurement Gating Cursor, Zoom 1, Zoom 2, Zoom 3,
Zoom 4, or Off:
H Cursor. Sets the gated area to the area between
the cursors. Use the multipurpose knobs to adjust
the cursors on screen such that the area to
measure is between the cursors.
H Zoom 1 -- 4. Sets the gated area to the waveform
area contained in the Zoom graticule.
H Off. Turns off measurement gating.
Turning V Bar cursors off will not turn gating off. You
must turn gating off in the Measurement Gating control
window or the Zoom drop-down list.
Gate G1
Gate G2
To Next Page
