Tektronix CSA7404B User Manual

2-6
CSA7000B Series & TDS7000B Series Instruments User Manual

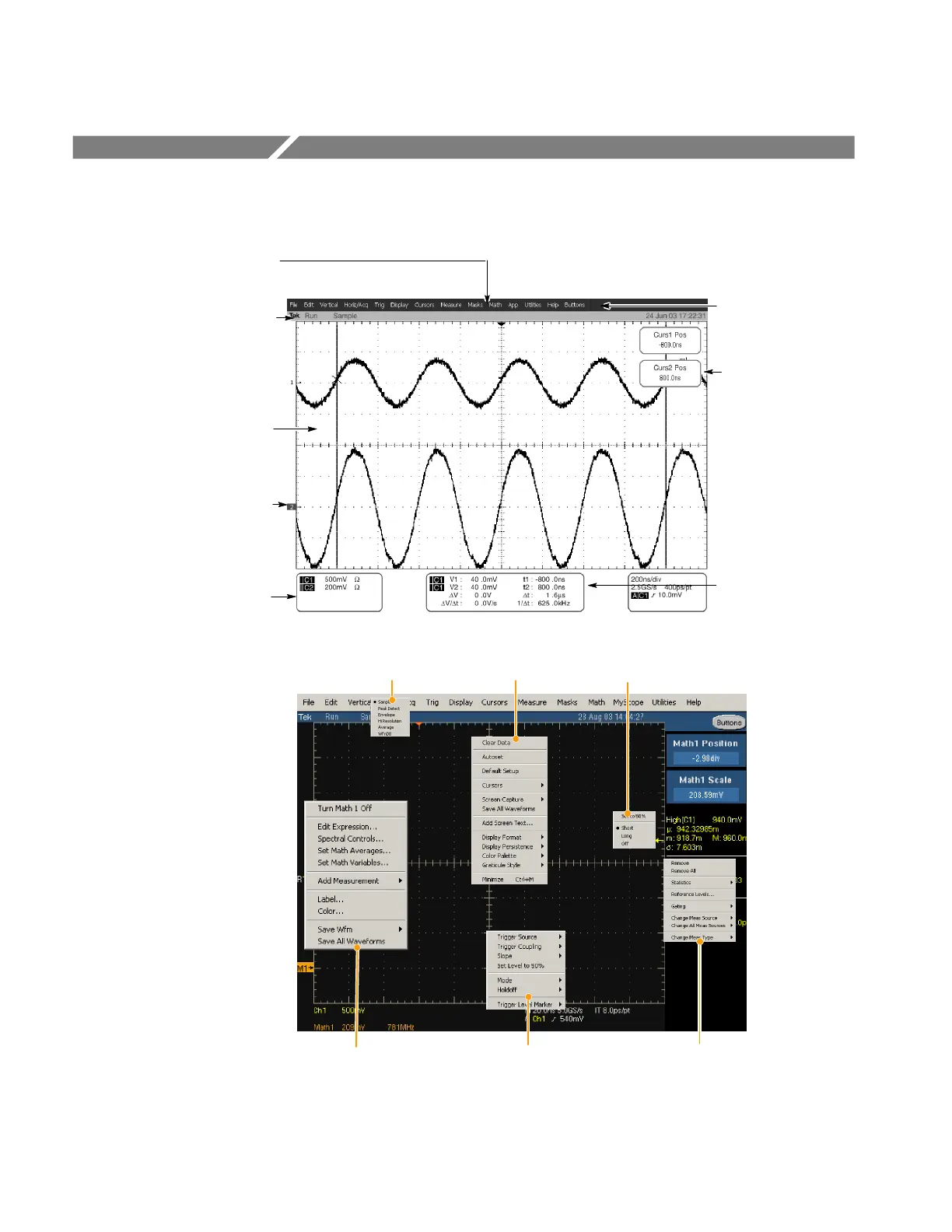

User Interface Map -- Complete Control and Display
Menu Bar: Access to data I/O,
printing, online help system, and
instrument functions here
Status Bar: Display of
acquisition status, mode, and
number of acquisitions; trigger
status; warnings; date; and time
Display: Live, reference, & math
waveforms display here, along
with cursors
Readouts: Display
cursor readouts and
measurement
readouts in this area,
selectable from the
menu bar or toolbar
Controls Status: Quick reference to
vertical, horizontal, and trigger
selections, scale, and parameters
If a setup menu is displayed, these
readouts move to the graticule area
Multipurpose Knob
Readouts. Adjust
parameters controlled by
multipurpose knobs
Buttons/Menu. Touch to
toggle between toolbar
and menu bar modes
Waveform Handle: Touch and drag
to change vertical position of
waveform. Touch the handle and
change the position and scale using
the multipurpose knobs
For a shortcut menu, right--click
anywhere in the graticule or on an
object. The shortcut menu is context
sensitive and varies with the area or
object where you right--clicked. Some
examples are shown in the figure at
right.
Right-click
Acquisition mode
Right-click Math
waveform handle
Right-click
Trigger readout
Right-click
Statistics
Right-click
Trigger level
Right-click
Graticule
