Overview Control elements and resourcesTo save a waveform (Cont.)
Save the
waveform to a
file

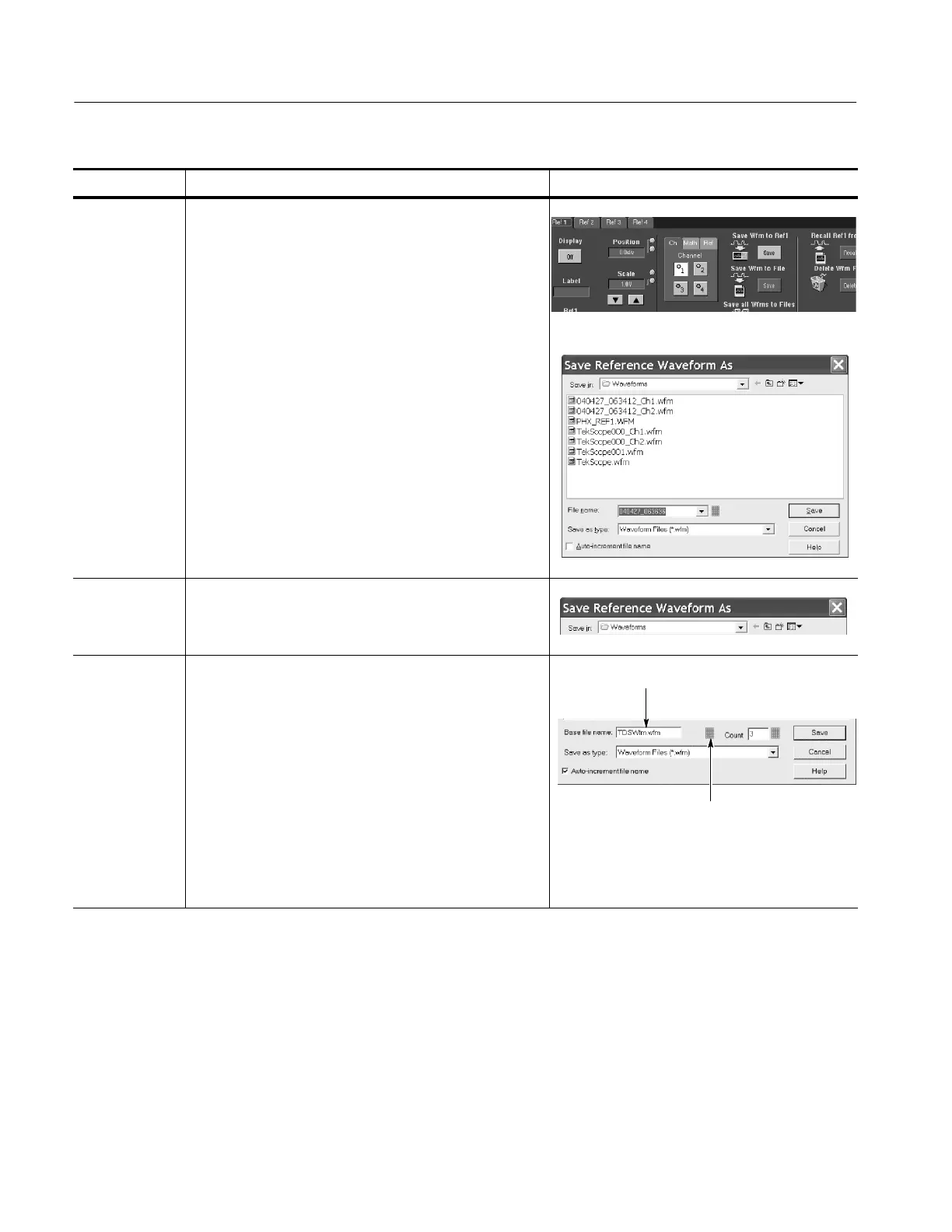

7. To save the waveform to a file, touch the Save Wfm to
File Save button, or to save all active waveforms to
files, touch the Save all Wfms to Files Save button.
The Save Reference Waveform As window lists all
available waveforms, allows for browsing to a
destination directory (saving to file), and allows you to
name the waveform file.
Select a
destination
8. Use the Save in: drop-down list and buttons to navigate
tothedirectoryinwhichtosaveyourwaveform.
Select directory
and name file
9. To specify the file name in which to save your waveform
you can:
H Use the default name and directory appearing in
the File Path field.
H Rename the file by typing a new name into the File
name field.
H Select the Auto-increment file name check box to
save a series of files without typing in a new name
each time. For more information, see Using
Auto-Increment File Name on page 3--222.
Edit path and file name
Access to virtual keyboard
