Overview Control elements and resourcesTo save a waveform (Cont.)

Label the

waveform

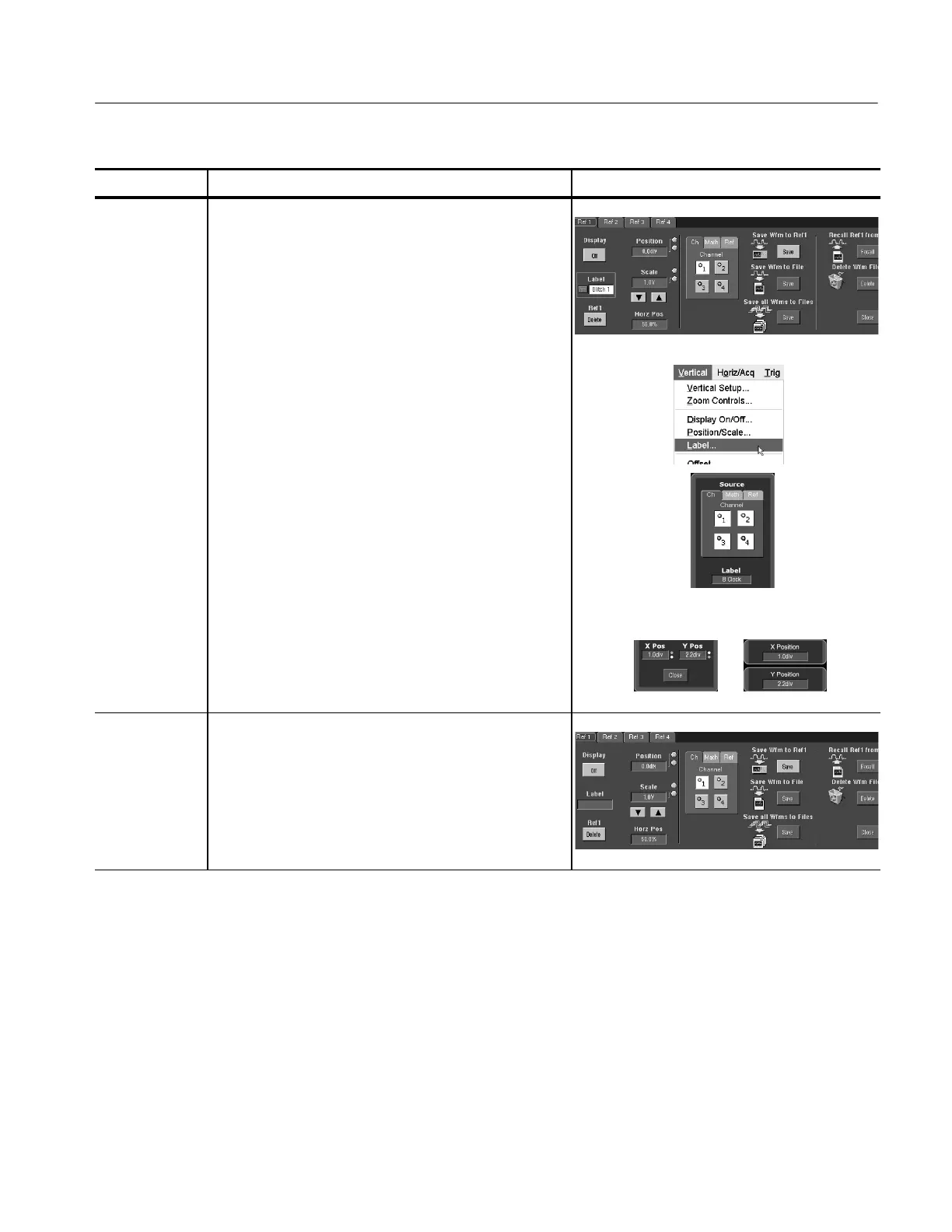

5. If you want to label the waveform, touch Label, and use

your keyboard or the pop-up keyboard to create a label

for your waveform.

You can label any channel, math, or reference waveform

and position the label relative to the display edge and

the vertical position of the waveform using the Label

control window:

H Using the menu bar, select Vertical and then Label

H From the Label control window, select the

waveform that you want to label using the Source

buttons

H From the Label control window, touch Label, and

use your keyboard or the pop-up keyboard to create

a label for your waveform

H Position the label relative to the waveform using

the multipurpose knobs, your keyboard, or the

pop-up keyboard

Save the

waveform to a

reference

6. Touch the Save Wmf to Ref(x) Save button to save your

waveform. Data in the existing reference will be

overwritten.
