Overview Control elements and resourcesTo recall your waveform (Cont.)
Recall a
reference
waveform from
a file

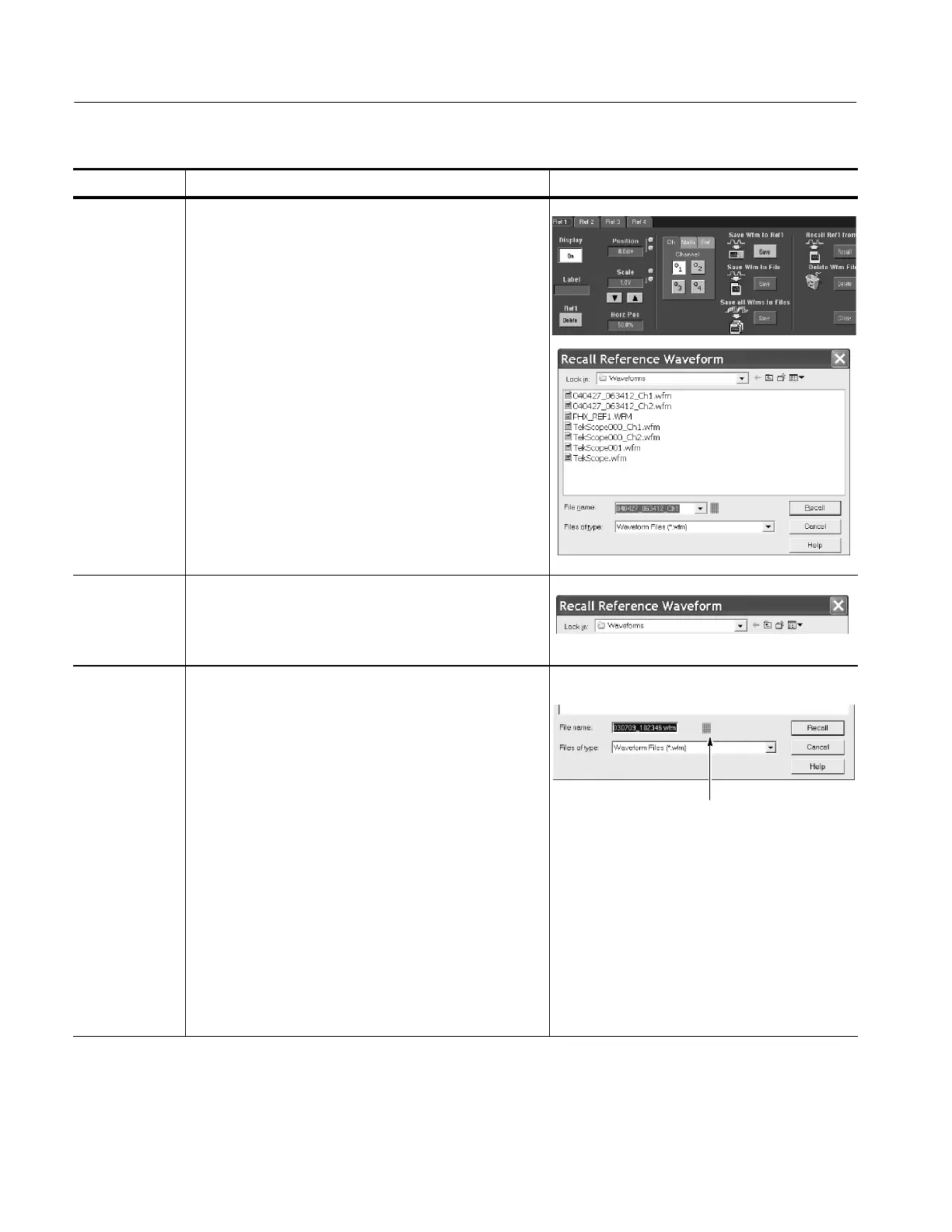

4. To display the Recall Reference Waveform window,
from the Recall Ref(x) from File window, touch Recall.
The Recall Reference Waveform window allows
navigation to directories, lists waveform files in the
directory, and provides for selection of a waveform file.
Find the source
directory
5. Use the Look in: drop-down list and buttons to navigate
to the directory, which contains a waveform that you
want to recall.
Select your
waveform
6. If not selected, select *.wfm in the Files of type field to
force the file listing to only include these types. Use
*.wfm for waveforms.
Note. Only change the type if you want to temporarily
see any other types of files in the current directory.
Otherwise, leave it set to *.wfm.
7. Choose your waveform file by either:
H Clicking an existing name in the file list.
H Clicking in the File name field and typing a new
name, replacing the default file name.
Note. If your instrument lacks a keyboard, touch or click
the keyboard icon to display a virtual keyboard. You can
use the mouse or touch screen with the virtual keyboard
to type entries in the name fields.
Access to virtual keyboard
