Measuring Waveforms
CSA7000B Series & TDS7000B Series Instruments User Manual
3- 161

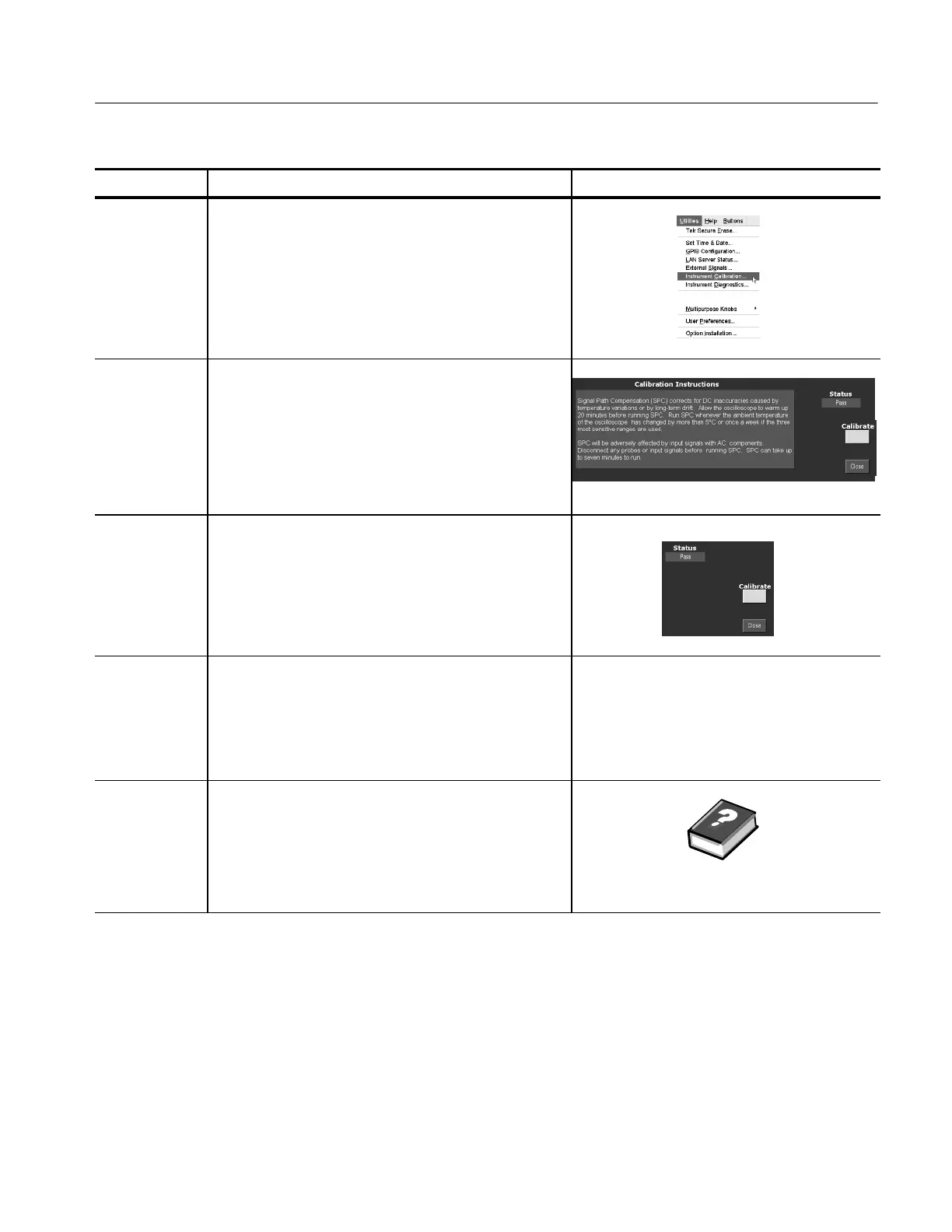

Overview Related control elements and resourcesTo compensate the instrument (Cont.)
Display the
calibration
instructions
2. From the menu bar, select Utilities, and then select
Instrument Calibration.
Check the
calibration
status
3. The calibration status should be Pass. If the status is
Warm-up, wait until the status changes. If the status
does not change to Pass, use the following steps to
calibrate the instrument.
Note: Signal Path Compensation is the only calibration
that is accessible to users.
Calibrate the
instrument
4. Touch Calibrate to start the calibration. Calibration may
take several minutes. Calibration is complete after
Working is no longer displayed in the Calibrate button
and Running is no longer displayed in the Status
readout.
Check the
calibration
status
5. The calibration status should be Pass. If not, recalibrate
the instrument, or have the instrument serviced by
qualified service personnel.
For further
assistance
6. Touch the Help button to access the online assistance.
See page 3--263 to learn about using online help.
