Displaying Waveforms
3- 130
CSA7000B Series & TDS7000B Series Instruments User Manual
Overview Control elements and resourcesTo zoom waveforms (Cont.)
Checking the
zoom factor
and position

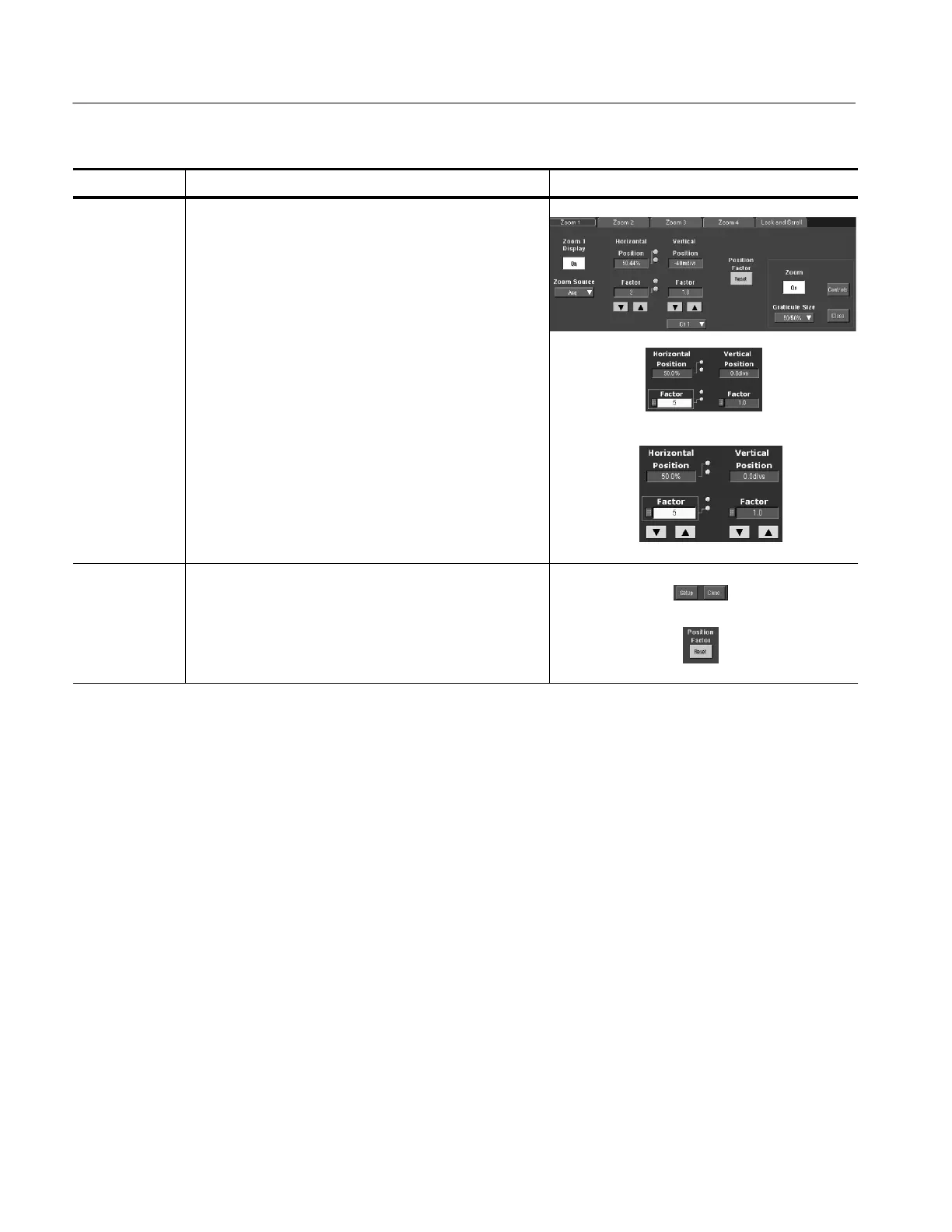

9. To quickly determine the zoom factor and position of a
zoomed waveform, check the readouts:
H The Zoom setup window displays the horizontal
and vertical position and zoom factor of the
selected zoom area.
H From the Zoom Setup window, touch the Vertical or
Horizontal Position or Factor controls to assign the
multipurpose knobs to the factor and position
controls.
H Use the multipurpose knobs or keypad to change
the zoom position and factor. The knob readout
also displays the zoom position and factor. You can
also use the up and down arrows to change the
zoom factor.
Reset zoom
10. To reset all Horizontal zoom factors to their defaults,
from the Zoom control window touch Setup.
11. Touch Reset to reset the zoom factor and position.
To Next Page
