Measuring Waveforms

CSA7000B Series & TDS7000B Series Instruments User Manual

3- 147

Overview Related control elements and resourcesTo take automatic measurements (Cont.)

annotation

detail

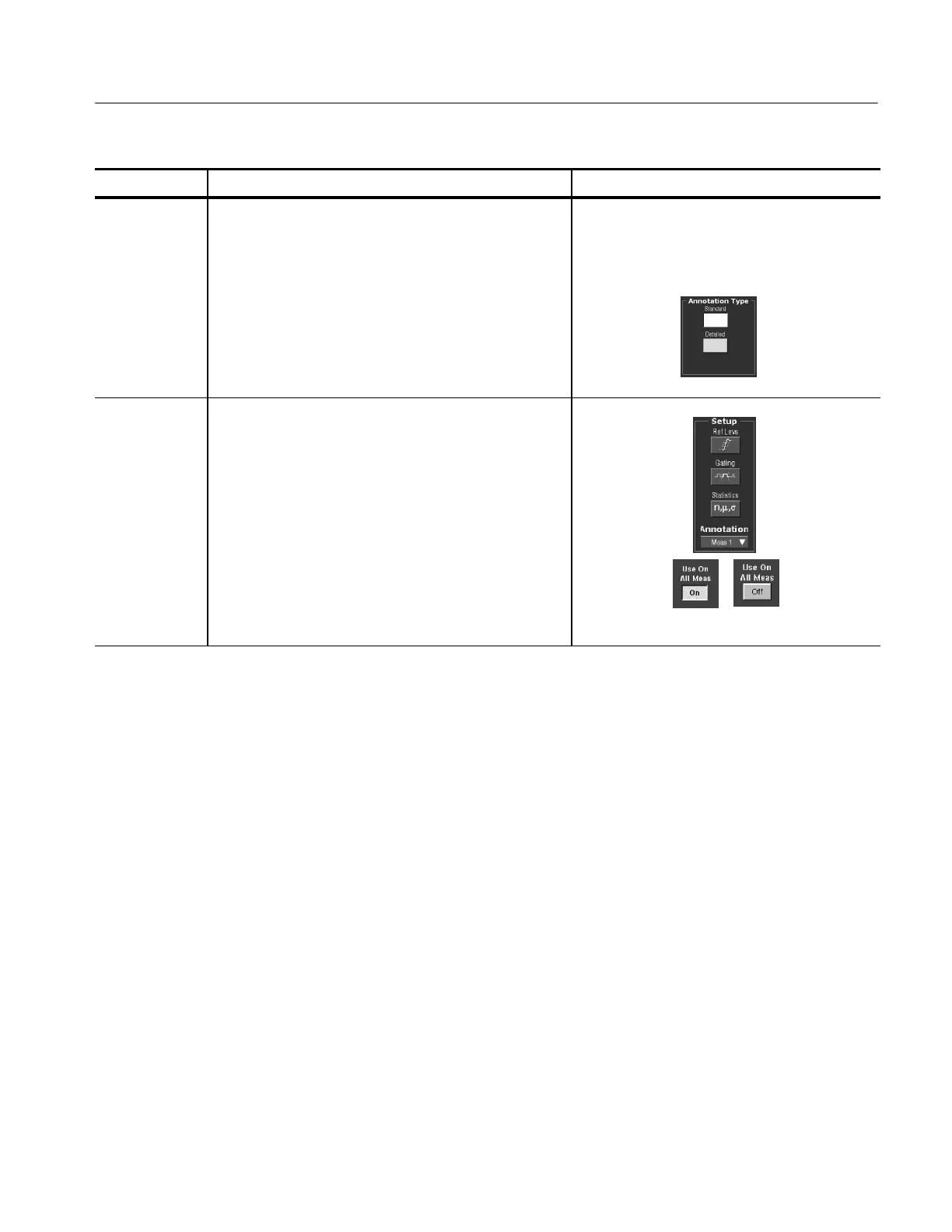

14. To select the amount of annotation detail shown with a

measurement, from the menu bar touch Utilities, User

Preferences, and then select the Measurement tab to

display the Annotation Type setup window.

15. From the window select either the Standard or Detailed

annotation type. Selecting Detailed displays more

annotations than selecting standard.

Set

measurement

reference

levels

16. From the Measurements control window, touch Setup

Ref Levs to display the Reference Levels setup control

window.

17. To use these settings for all measurements, toggle the

Use On All Meas button to On. To set different values

for some measurements, toggle the Use On all Meas

buttontoOff.
