Measuring Waveforms
3- 156
CSA7000B Series & TDS7000B Series Instruments User Manual

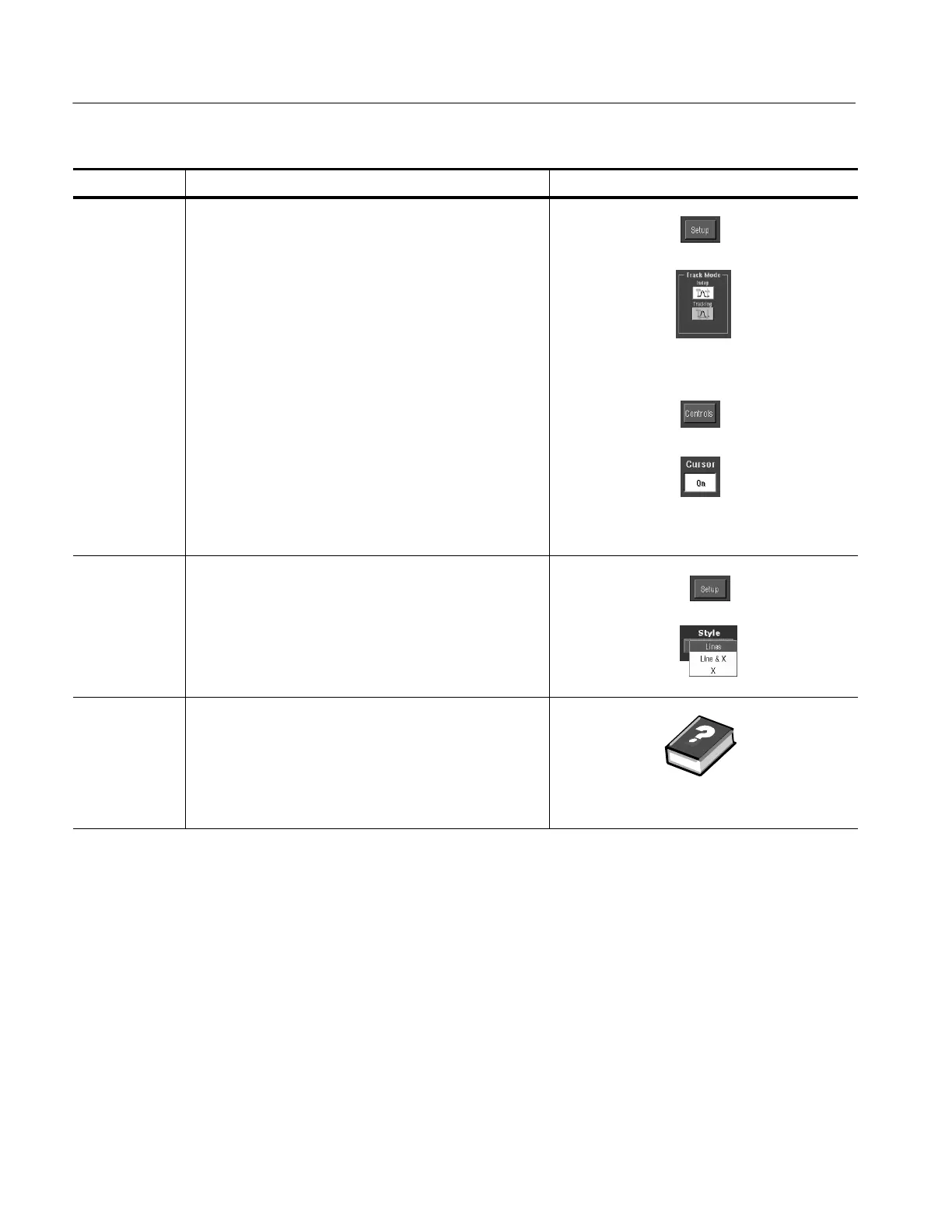

Overview Related control elements and resourcesTo set the cursor sources (Cont.)
Set cursor
tracking
6. To change the cursor tracking mode, from the Cursor
controls window select Setup.
7. Touch Track Mode Indep or Tracking:
H Indep. Makes each cursor positionable without
regard to the position of the other cursor.
H Tracking. Makes both cursors move in unison and
maintain a fixed horizontal or vertical distance
between each other.
8. To return to the Cursor controls window, touch the
Controls button.
9. To toggl e the display of cursors on or off, touch the
Cursor but ton.
Note. All adjustments that you can make in the Cursor
controls window can also be made in this window.
Set cursor
style
10. To change the waveform and screen cursor marker style,
from the Cursor controls window, select Setup.
11. Touch Style, and select Lines, Line & X, or X.
For further
assistance
12. Touch the Help button in the Cursor setup control
window or the Cursor controls window to access the
online assistance.
See page 3--263 to learn about using online help.
