Creating and Using Math Waveforms
3- 176
CSA7000B Series & TDS7000B Series Instruments User Manual

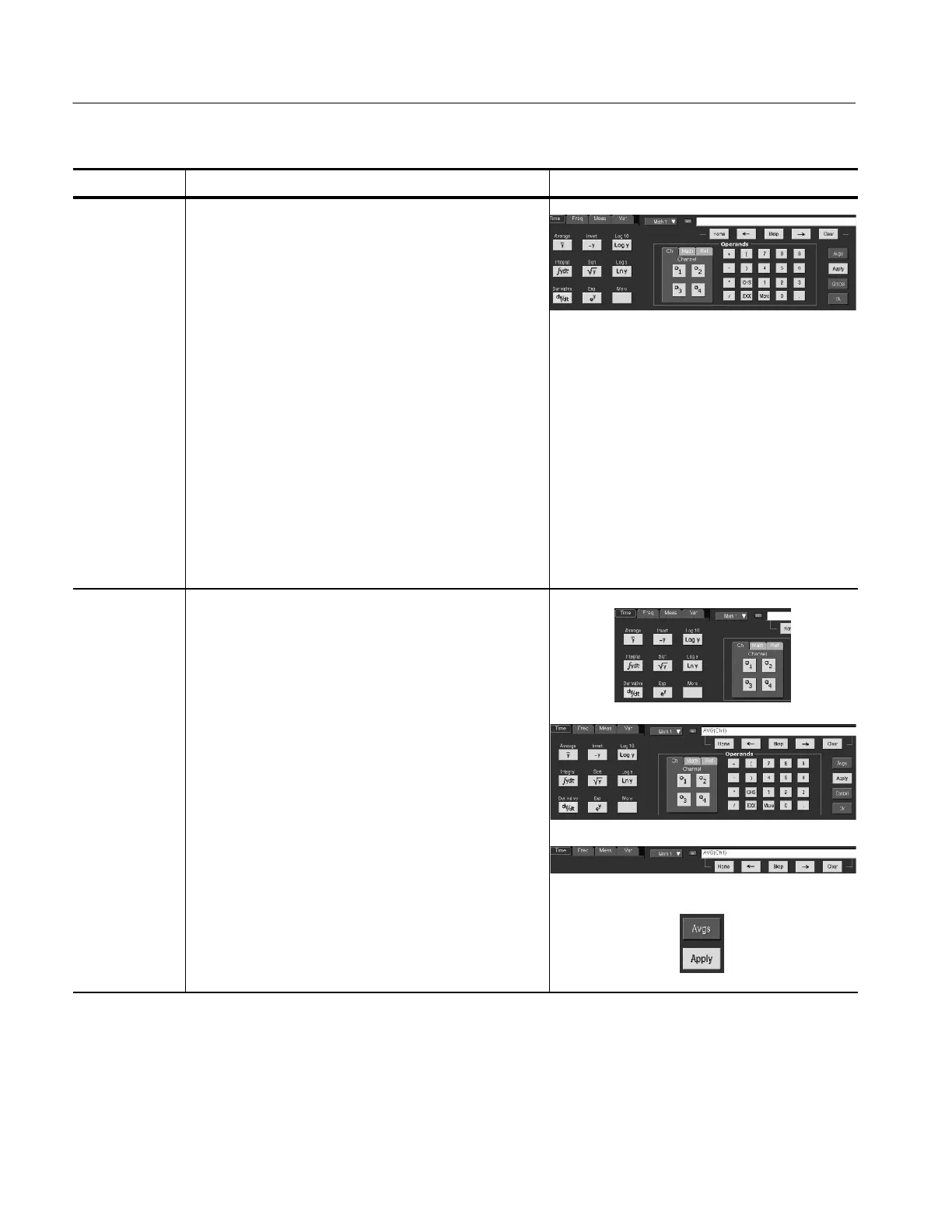

Overview Related control elements and resourcesTo define a math waveform (Cont.)
To define/edit
a math
expression
5. Use the control window at right to define a math
expression. See Table 3--11 on page 3--170 for
expression examples; some guidelines for creating your
expression follow:
H Sources — Ch1--Ch4, Ref1--Ref4, and
Meas1--Meas8 — should be set up before you use
them (channels acquired or acquisitions running,
references and automated measurement scalars
defined).
H Math definitions are not implemented if sources or
other elements of the definition are not valid.
H Use the backspace button to remove the last entry;
use the clear key to remove the entire expression
and start over.
H Use parentheses to group terms in the expression
to control execution order, for example;
5*(Ch1 + Ch2).
Select a
function
6. Select the Time, Freq, Meas, or Var tabs to display the
available functions.
7. Touch a function button to enter the function in the math
expression. Select an operand for the function to
operate on.
8. Use the Home and arrow buttons to move within the
math expression. Use the Bksp (backspace) button to
delete portions of the expression.
9. Touch Apply to apply your new math expression to the
math waveform.
To Next Page
