Acquiring Waveforms
3-14
CSA7000B Series & TDS7000B Series Instruments User Manual
Overview Related control elements and resourcesTo set up signal input (Cont.)
Set horizontal
acquisition
window

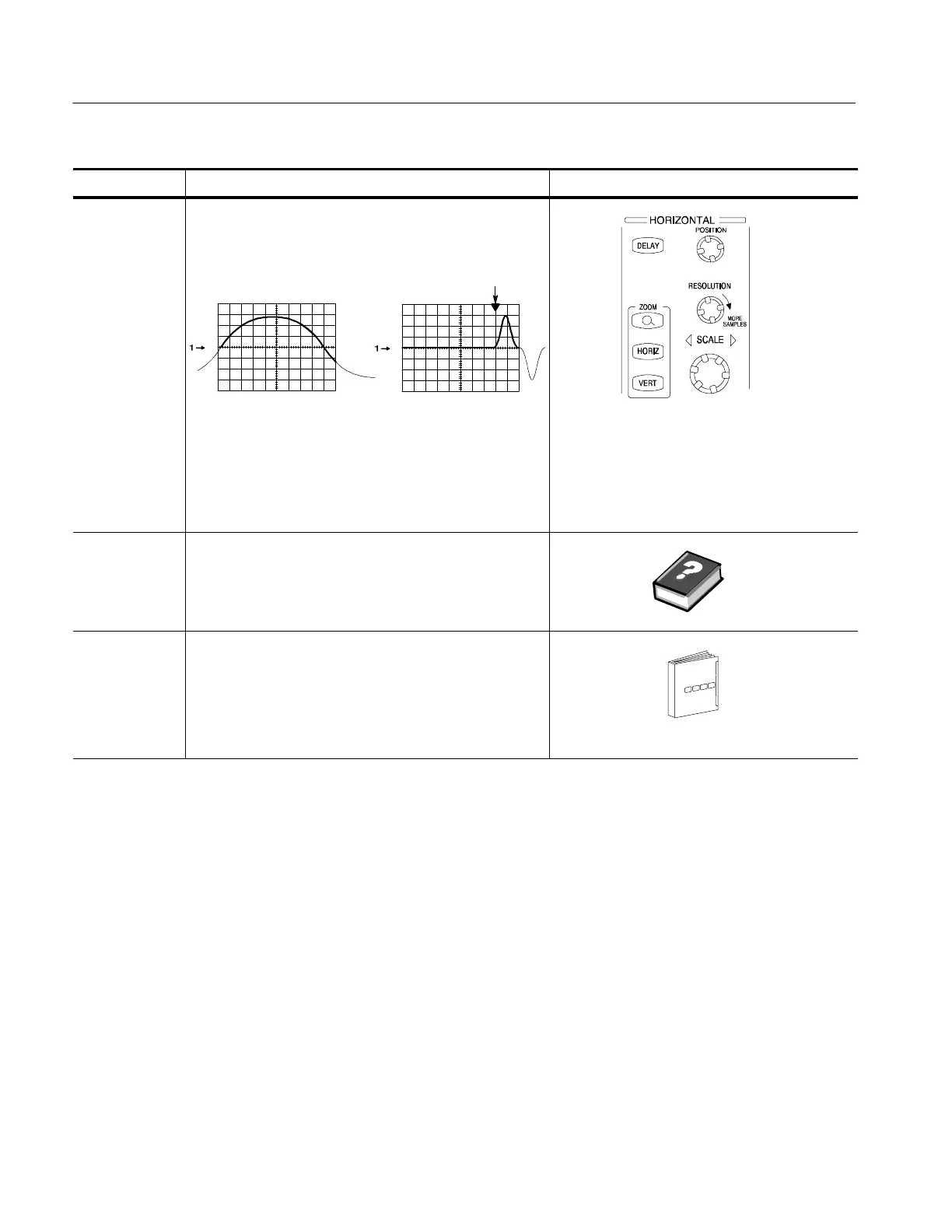

7. Use horizontal knobs to scale and position the waveform
on screen and to set record length.
Positioned horizontallyScaled horizontally
The Resolution knob sets the record length. (See
discussion on page 3--21.)
If required to stabilize the display, push LEVEL to set the
trigger level to 50%.
Dragging the reference icon
also positions the waveform.
For help
8. For more informat ion on the controls described in this
procedure, push the Vert or Horiz button. Touch the
HELP button in the toolbar.
Continue with
acquisition
setup
9. To finish acquisition setup, you must set the
acquisition mode and start the acquisition.
See To Set Acquisition Modes on page 3--29.
To Next Page
