Analyzing waveforms Set up I2C search parameters

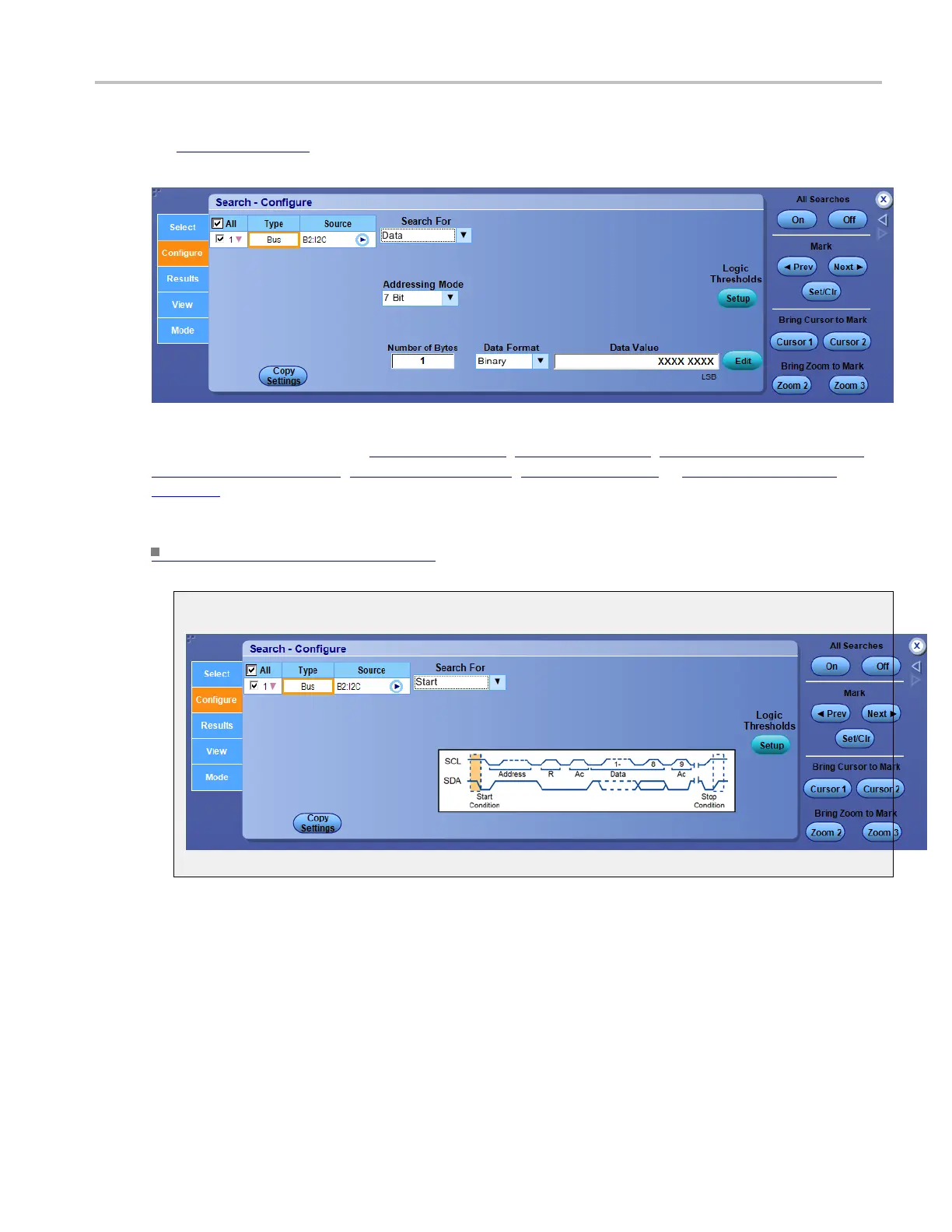

In this example, you need to set a Addressing Mode, Number of Bytes, D ata Format, and Data Value (click
the Edit
(see page 939) button). Optionally, you can a lso set the component threshold levels through the
Logic Thresho
lds Setup button.
Click the Search For selections Start (see page 327), Stop (see page 328), Repeated Start (see page 328),
Missing ack
(see page 328), Address (see page 329), Data (see page 329),orAddress and Data (see
page 330) to view their parameters.
What do you want to do next?
Learn about bus setups. (see page 95)
Search for start
