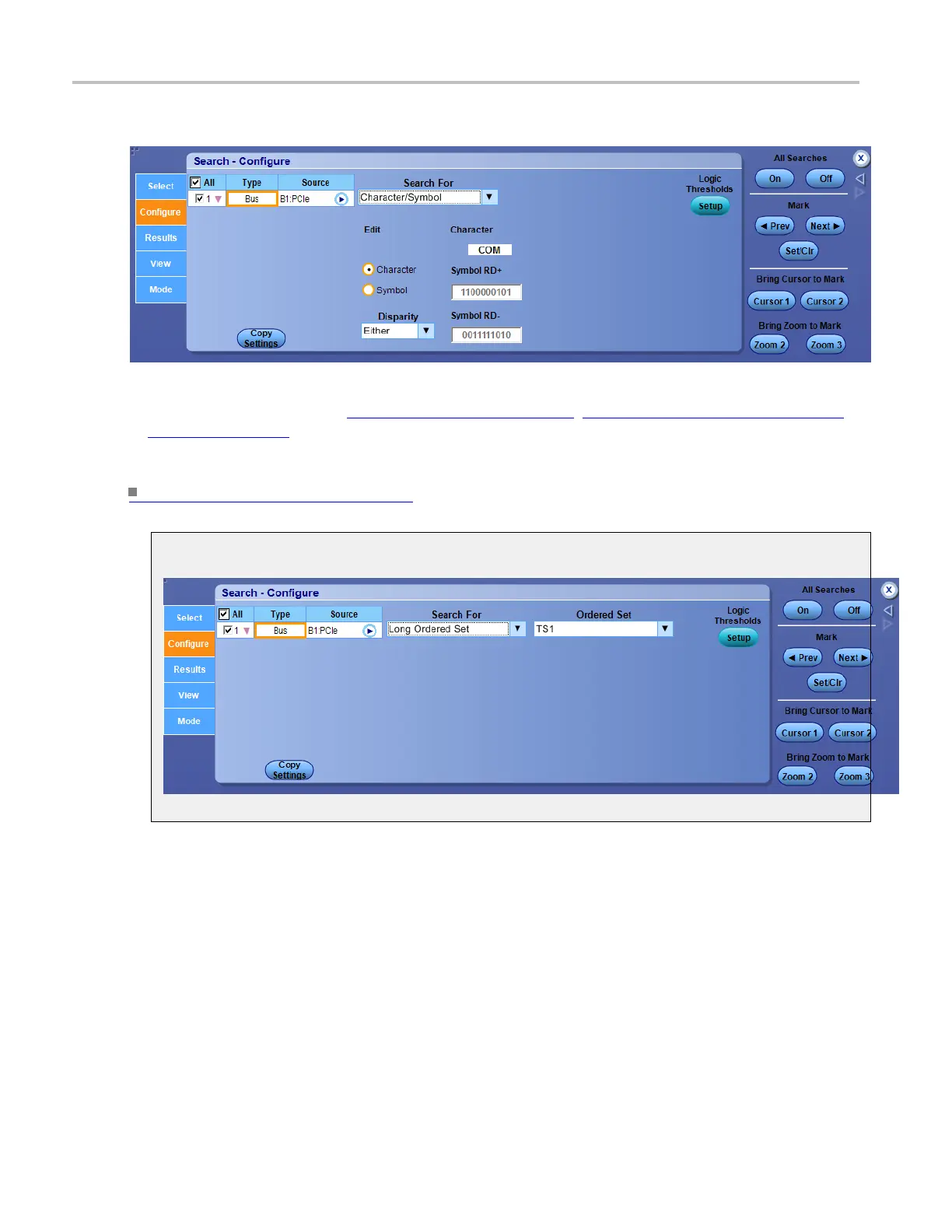

Analyzing waveforms Set up PCIe search parameters

In this example, you need to set a Character, Symbol, and Disparity.

Click the Search For selections Long Ordered Set (see page 344), Any Control Character (see page 345),

or Error

(see page 345), to v iew their parameters.

What do you want to do next?

Learn ab

out bus setups.

(see page 95)

Search for long ordered set

344 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
