Trigger setups Set up a Comm trigger
To use
For information on the controls, click the buttons.
Depending on which coding format you use, you can also change the Upper, Lower, and Clock level
thresholds and the pulse form using the multipurpose knobs.
Behavio
r

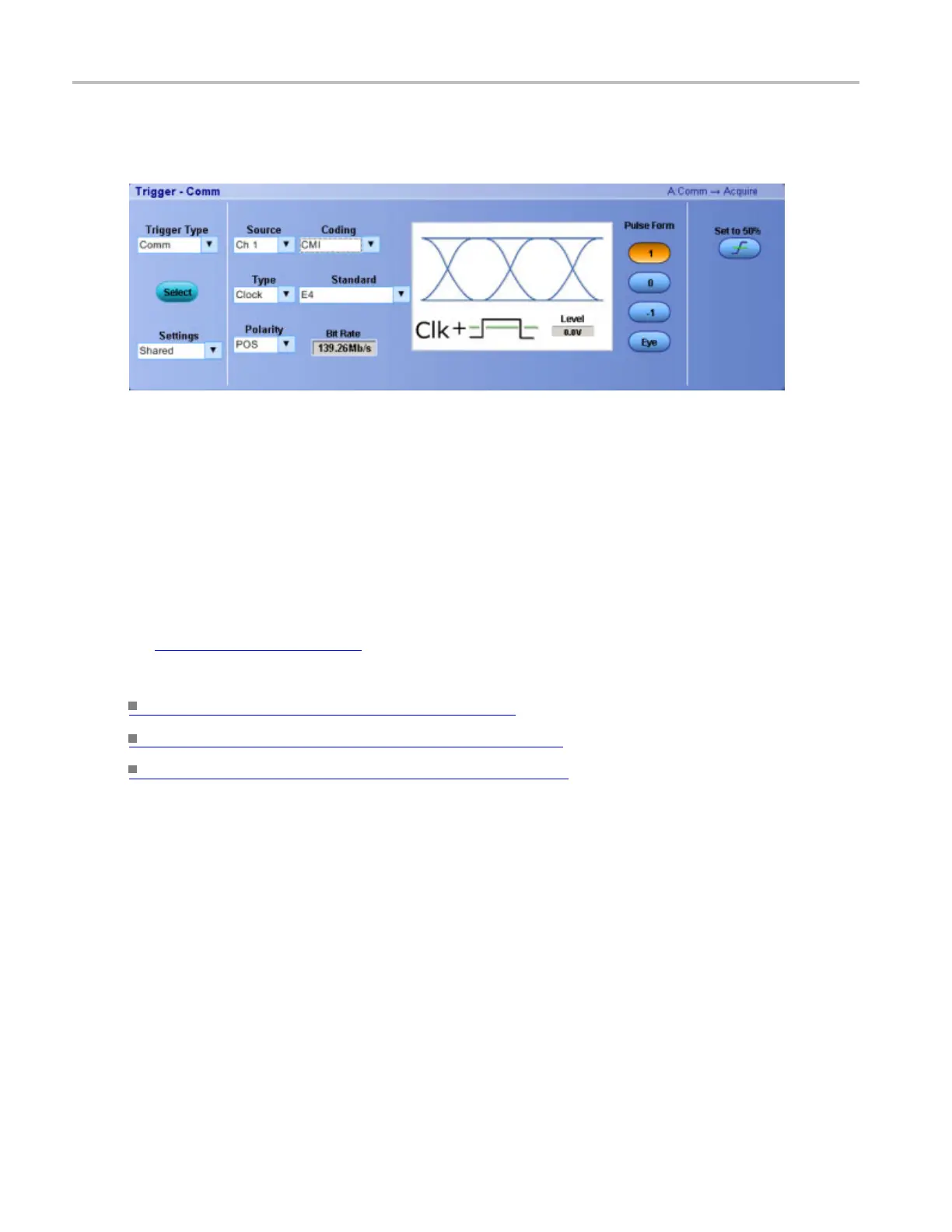

Use the Comm Trigger control window to trigger the instrument in conjunction with mask testing on
commun
ications codes and standards. The c ontrols work together to define the parameters for the trigger
event. The standards that appear in the Standard drop-down list depend on the coding format that you
selected. The coding format also determines whether upper, lower, single, or clock threshold levels or
pulse forms are used. The standard determines the bit rate. When you click on the trigger window controls,
the trigger graphic
(see page 386) shows the trigger sequence.
What do you want to do next?
Learn more about other trigger types. (see page 386)
Return to the Trigger Setup control window. (see page 385)
Lea
rn about Set to 50% with Comm triggers.
(see page 915)
422 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
