Trigger setups Set up Sequential triggering (Horizontal Delay off)

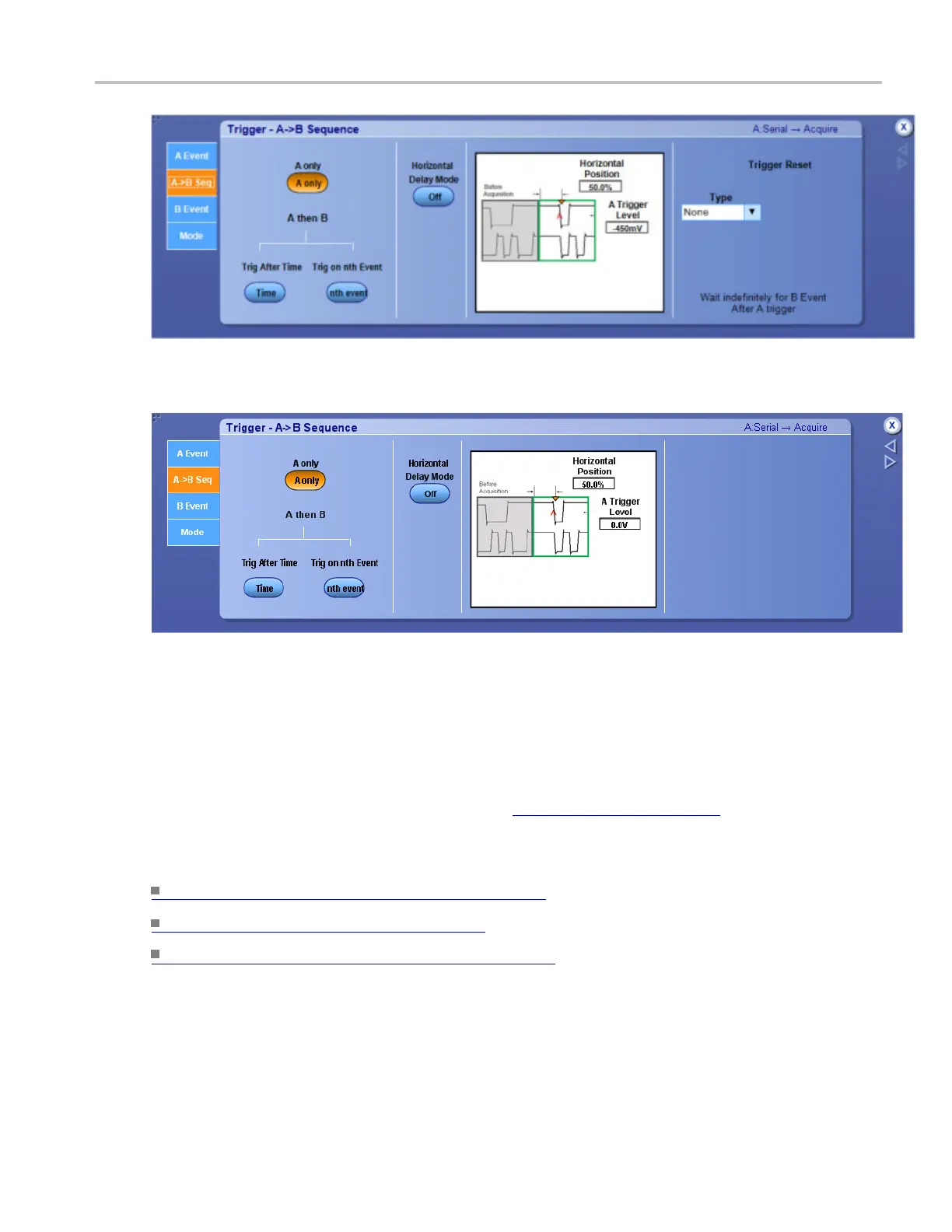

The following screen appears on MSO/DPO5000 Series instruments:
Behavior
The A Event trigger arms the trigger system; the instrument will trigger on the B Event trigger defined by
events or time. You ca n also set up the instrument to delay the B Event Trigger by a specified time period
by turning Horizontal Delay Mode on.
When you click on the trigger window controls, the trigger graphic
(see page 386) shows the trigger
sequence.
What do you want to do next?
Learn a bout the A Event trigger types. (see page 386)
Learn about B Event triggers. (see page 458)
Learn a bout Trigger Mode and Holdoff. (see page 474)
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 445
