How to ? Mark all trigger events

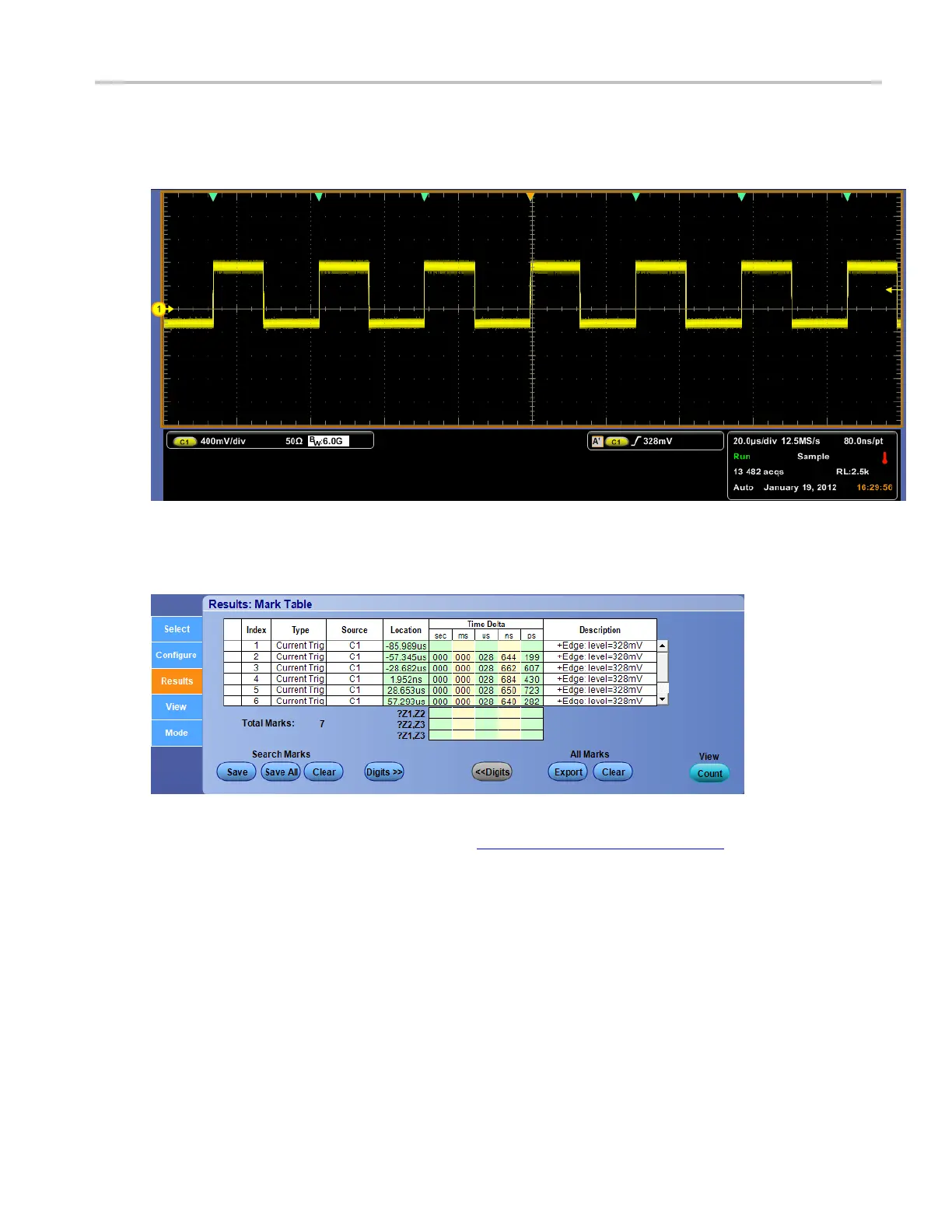

6. The instrument searches for and marks all similar events that meet the trigger requirements. The

results of the search are shown as marked events on screen, and they can also be viewed in the Results

tab of the Mark

Table.

7. From the Analyze menu select Search, and then select the Results tab. The results of the search are

displayed and will include the visual trigger area.

8. You can also add a visual trigger area. See Visual Trigger Setup (see page 459)

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 659
