Oscilloscope Reference Set up the spectral vertical axis

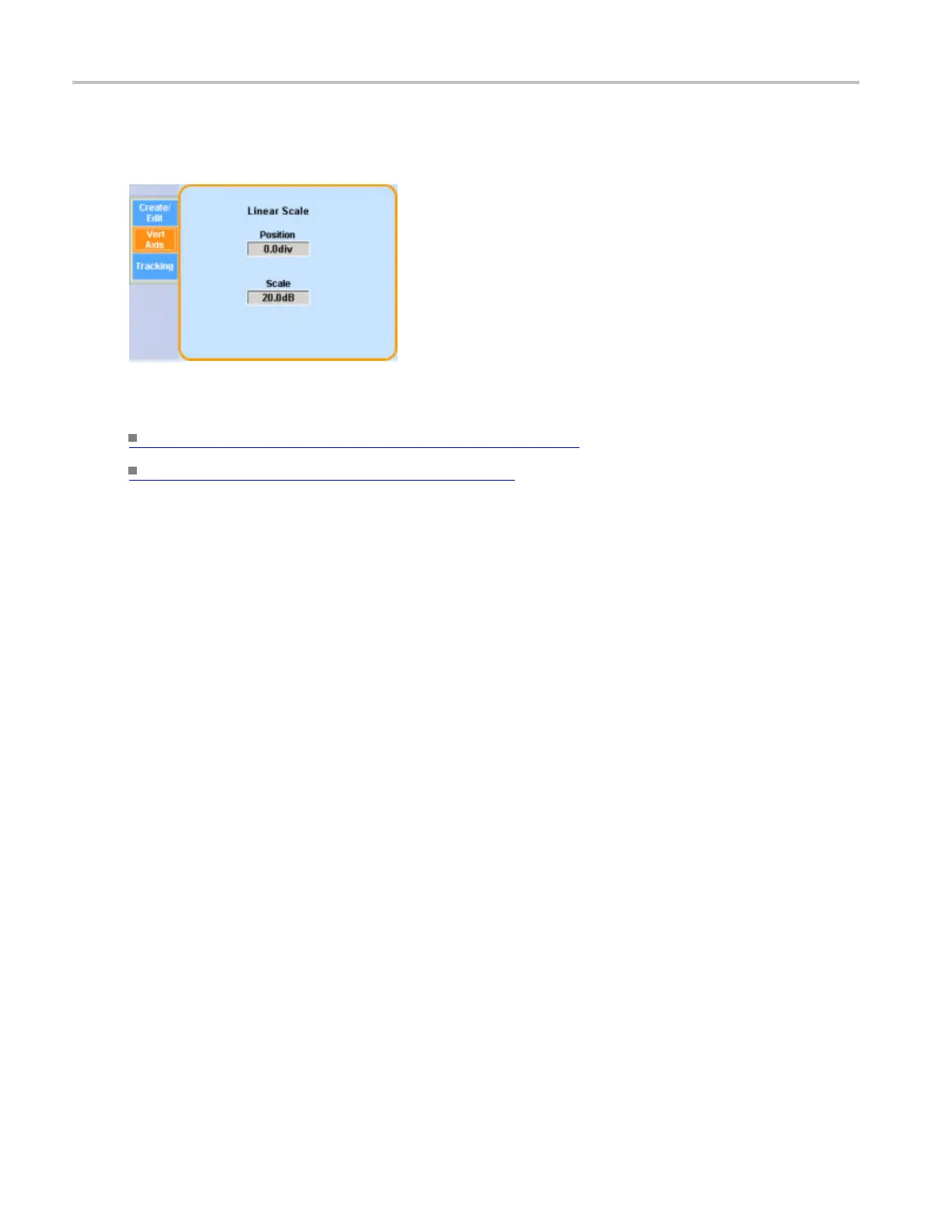

Set the Linear Scale

Click in an entry box and use a multipurpose knob to specify the position and scale for a linear display.

What do you want to do next?

Learn about locking math waveforms together. (see page 917)

Learn about the Math Setup controls. (see page 241)

920 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
