G10 Installation Guide 7.13.2 105
B
Rev. 005-140228
Figure B.3 - IIC200 SFPs
IIC100
Insert 1 Gb SFPs into the IIC100 with the closed handle in DOWN position (Figure B.4). For
the 1G SFPs, the left port is Receive (RX) and the r
ight port is Transmit (TX).

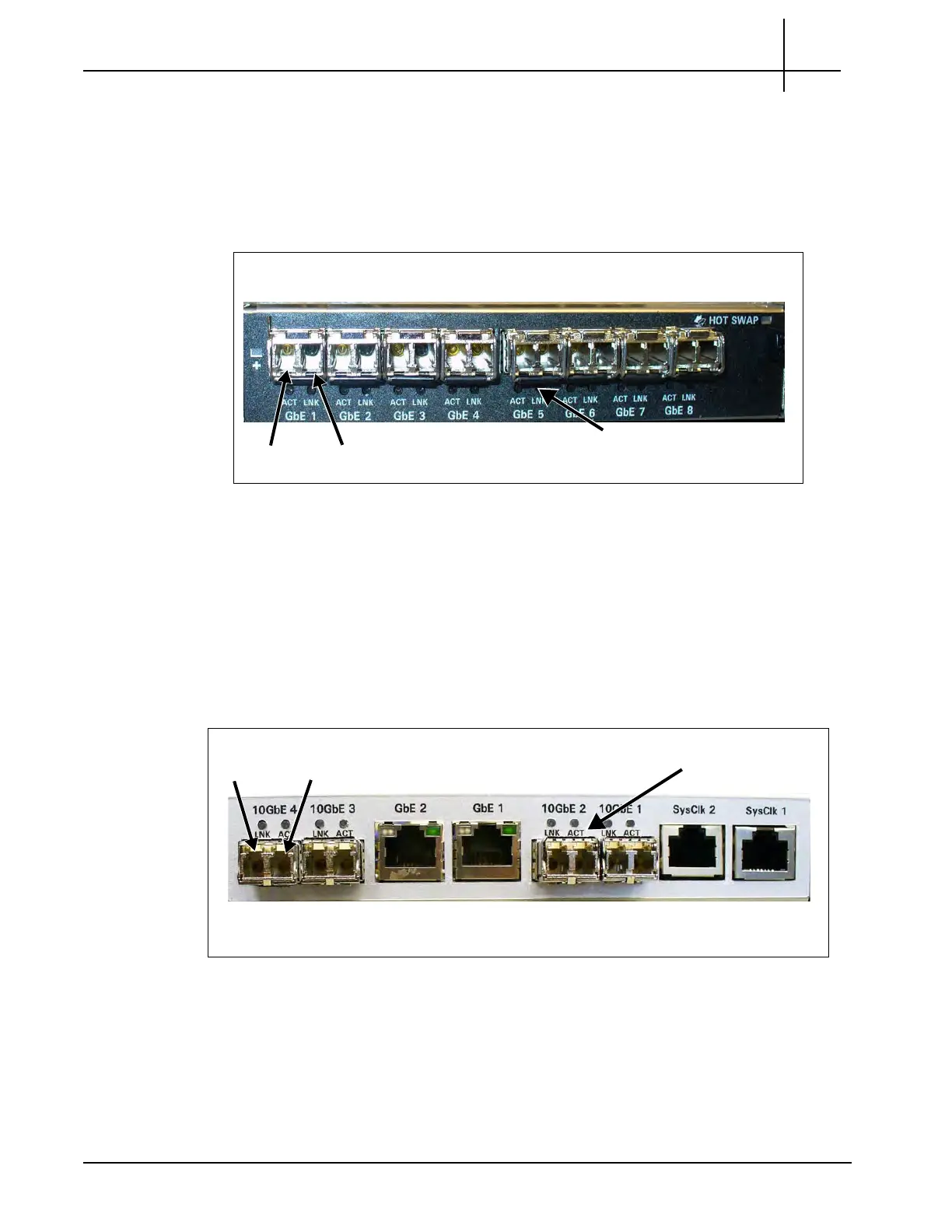

Figure B.4 - IIC100 SFPs
TRM100 RTM
The four 10G Ethernet ports are only used when paired with the IIC100. When paired
with IIC200, the 10G ports are not used for monitored traffic (all monitored traffic
connects to G10 using IIC200).
Insert 10 Gb SFPs with the closed handle in UP position (Figure B.5). For the 10G SFPs, the
left port is Tr
a
nsmit (TX) and the right port is Receive (RX).
Figure B.5 - TRM100 RTM Paired with IIC100
SFP Closed Handle in DOWN position
RX Port
(LEFT)
TX Port
(RIGHT)
SFP Closed Handle in UP position
TX Port
(LEFT)
RX Port
(RIGHT)
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
