Connect G10 to the Monitored Network
Rev. 005-140228
10G Ethernet Cabling for Mirror/Span Ports
Perform the following to connect Ethernet cabling to the monitored network using mirror/span
ports.
Step Action
1. Use Figure 5.9 and Table 5.7 to connect the monitored network to the G10 10G
Ethernet connections for mirror/span ports.

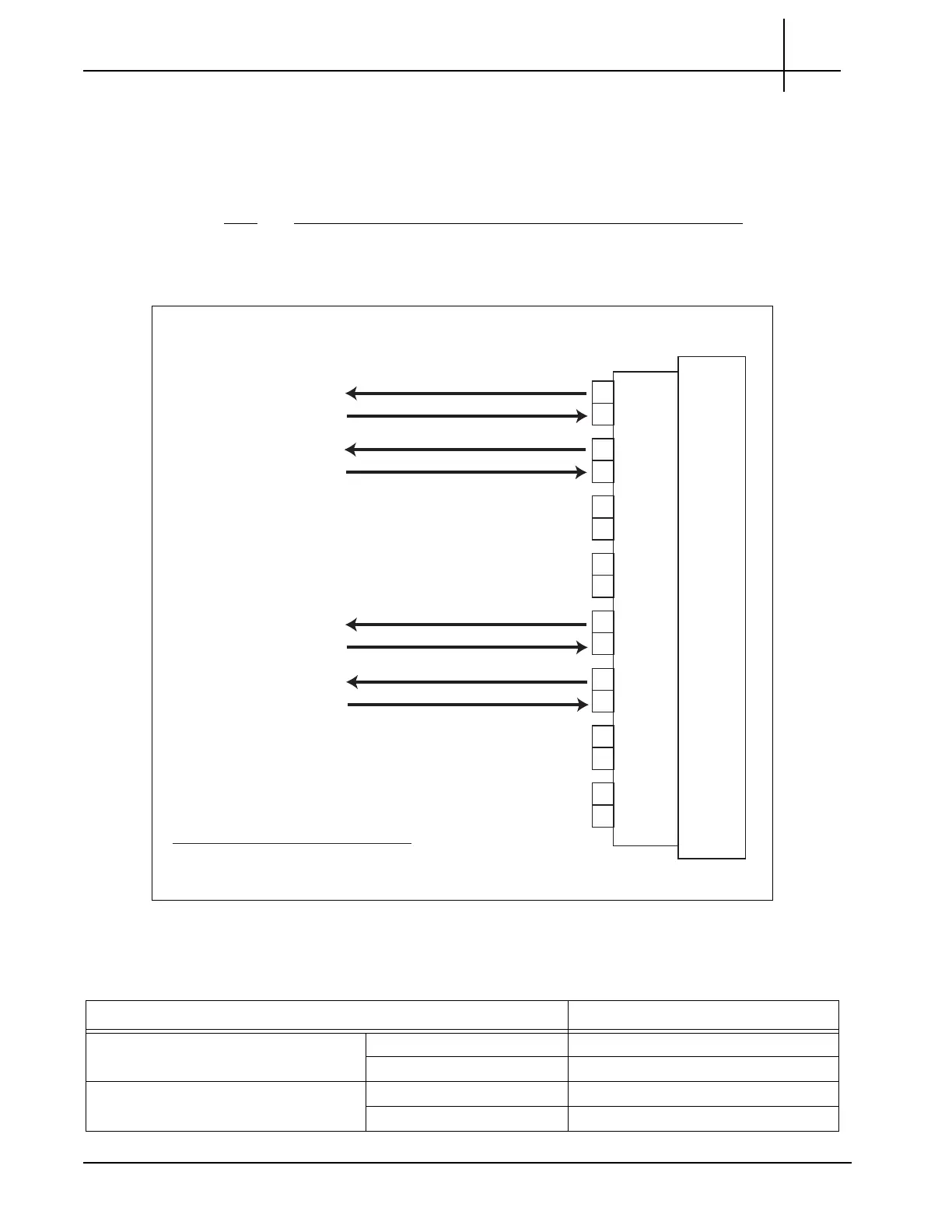

Figure 5.9 - 10G Ethernet Connections - Mirror/Span
10GbE 4
10GbE 3
GbE 2
GbE 1
10GbE 2
10GbE 1
Tx*
Rx
Tx*
Rx
Tx*
Rx
Tx*
Rx
10G Ports on
TRM100 RTM
SysClk 1
SysClk 1
Tx/Rx**
Rx
Tx/Rx**
Rx
Tx/Rx**
Rx
Tx/Rx**
Rx
Monitored Interface
"Link 4"
Monitored Interface
"Link 3"
Monitored Interface
"Link 1"
Monitored Interface
"Link 2"
If only monitoring two interfaces, connect them to 10GbE 1 and 10GbE 3 to balance the processing load.
*
G10 probe transmits light only to keep port active.
**
Aggregated data from customer monitored links.
Table 5.7 - 10G Ethernet Connections - Mirror/Span
Monitored Network G10 10G Ethernet Connections
Monitored Interface 1 “Link 1” RX 10GbE 1 TX (left)
TX 10GbE 1 RX (right)
Monitored Interface 2 “Link 2” RX 10GbE 2 TX (left)
TX 10GbE 2 RX (right)
