G10 Installation Guide 7.13.2 54
3
Connect Ethernet and SAS Cabling
Rev. 005-140228
IIC100 + IAP200 ETHERNET AND SAS CABLING
This section provides information necessary for cabling a G10 probe with the following
configuration:
IIC100/SRM100 RTM + IAP200/PRM200 RTM
IIC100/TRM100 RTM + IAP200/PRM200 RTM
The IIC100/IAP320 is not a recommended configuration and is not officially supported
for qualified performance ratings. Tektronix Communications recommends
upgrading systems to IIC200 when upgrading to the IAP320.
Connect IIC100 + IAP200 Ethernet Cabling
Tektronix provides shielded Ethernet cables; any customer-provided Ethernet cables must
also be shielded.
Step Action
1. Connect Ethernet cables from the G10 to your LAN as shown in Figure 3.6.
Connect Port B only if configuring a redundant primary interface.
Ports A and B require an SFP module (RJ45 Copper or Fiber). Refer to
Appendix B for SFP details.

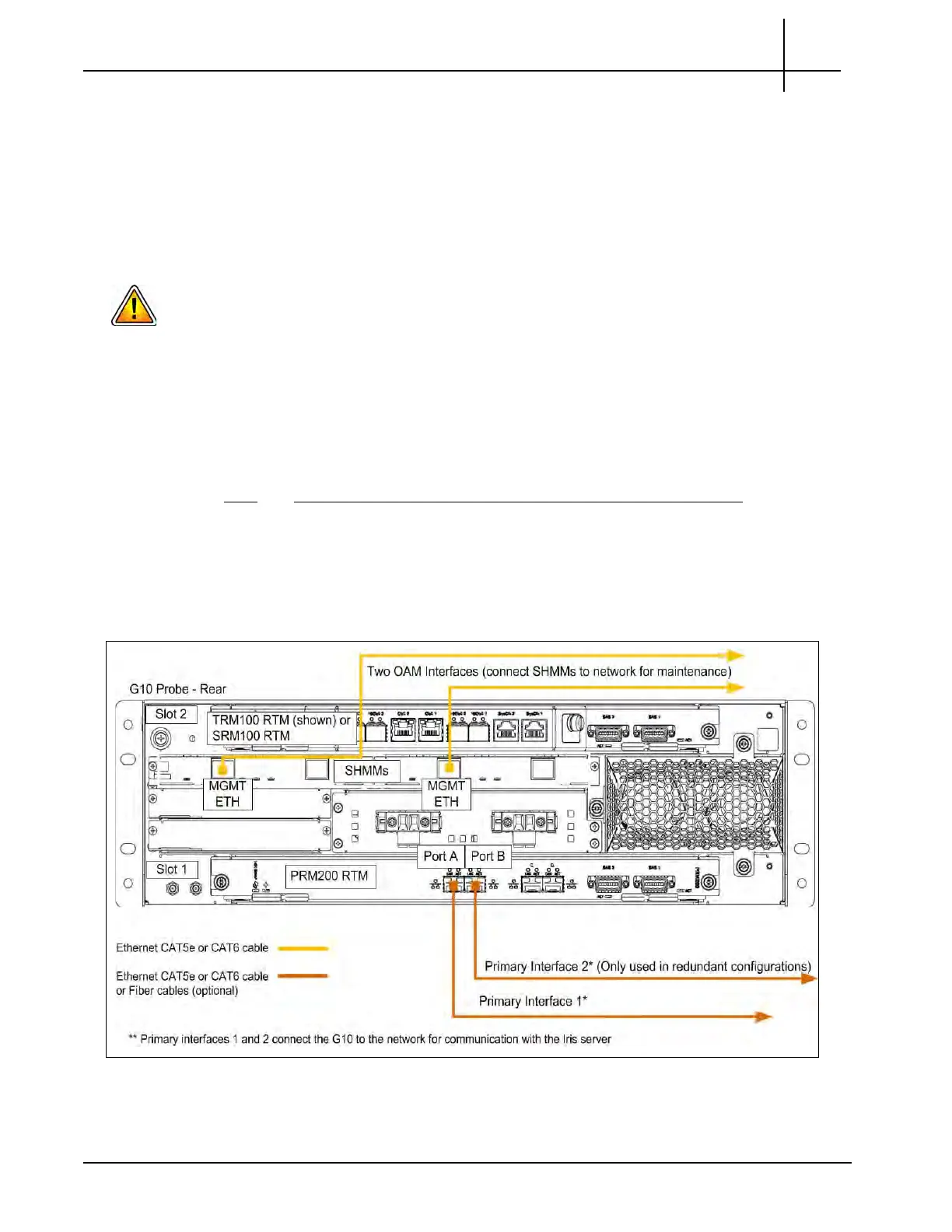

Figure 3.6 - Ethernet Connections from G10 to LAN - Non-Redundant Primary Interface
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
