Tektronix GeoProbe G10 Installation Guide

G10 Installation Guide 7.13.2 106 
B
Rev. 005-140228
PRM200 RTM or PRM300 RTM
Insert 1G and 10G SFPs with closed handle in UP position (Figure B.6):
 Port A and Port B—1G Ethernet ports
 Port C and Port D—10G Ethernet ports (only used in multiprobe configurations)

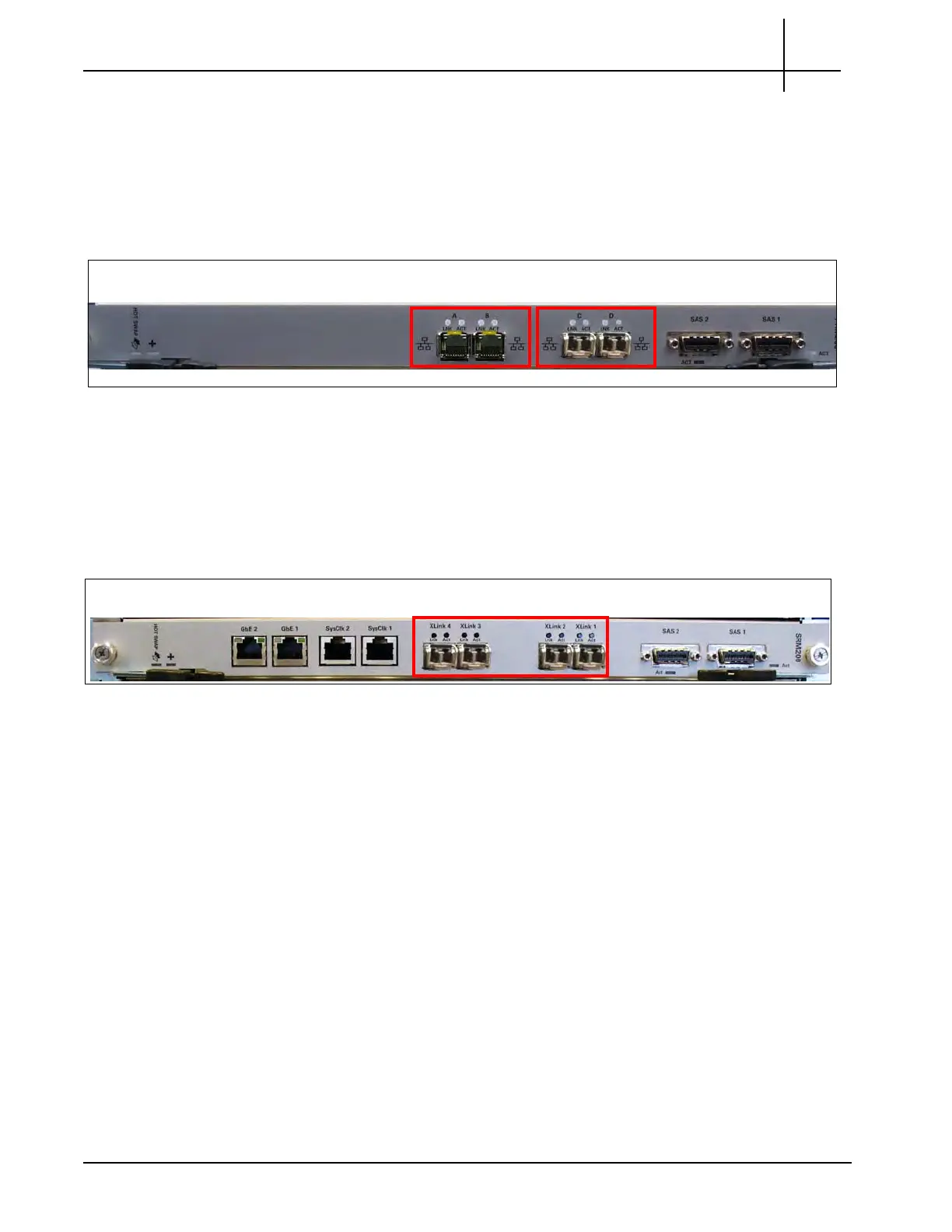

Figure B.6 - PRM200 RTM or PRM300 RTM
SFPs
SRM200 RTM
Insert 10G SFPs with closed handle in UP position (Figure B.7):
 Xlink 1-4 ports—used in multiprobe configurations
Figure B.7 - SRM200 RTM SFPs
1G Ports A and B 10G Ports C and D
Four Xlink Ports
