G10 Installation Guide 7.13.2 99 
B
Rev. 005-140228
1 GB PORT SFPS
The G10 probe has the following 1G Ethernet connections (Figure B.1):
 IIC200—up to eight 1G Ethernet ports (4 1G ports + 4 1/10G ports)
 PRM200 RTM or PRM300 RTM—two 1G Ethernet ports (Port A and Port B)
 IIC100—up to eight 1G Ethernet ports

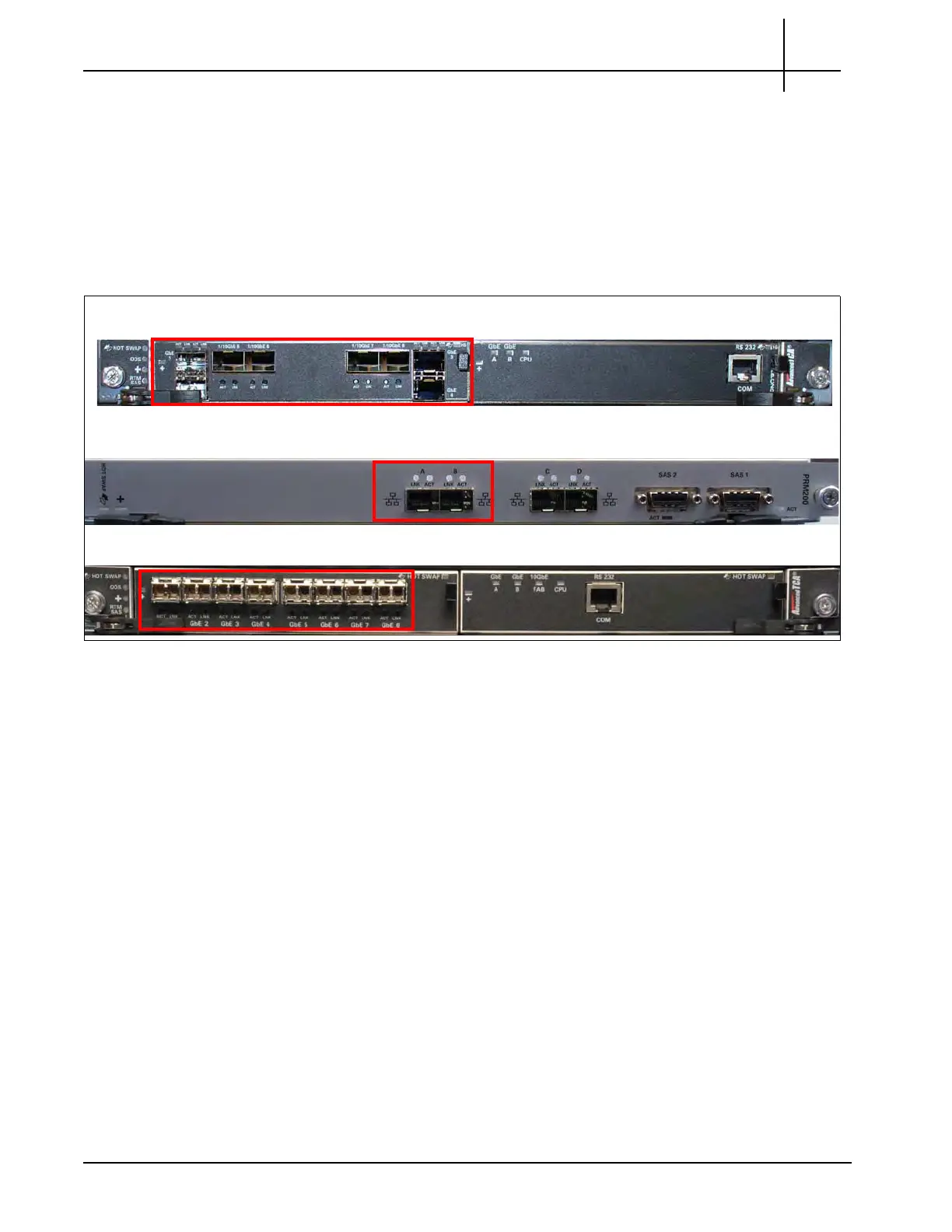

Figure B.1 - G10 1G Ethernet Connections
The available connections support optical or electrical Ethernet link
s. The G10 1G Ethernet
ports support the following connectivity:
 1000base-LX Fiber
 1000base-SX Fiber
 1000base-T Copper
IIC100 (Eight 1G Ethernet ports)
PRM200 RTM or PRM300 RTM (1G Ethernet Ports A and B)
IIC200 eight 1G Ethernet ports (4 1G ports + 4 1/10G ports)
