G10 Installation Guide 7.13.2 53
3
Connect Ethernet and SAS Cabling
Rev. 005-140228
Controller Enclosure to Expansion Enclosures SAS Connections
Use Figure 3.5 to connect SAS cables from the controller enclosure to the expansion
enclosures, then continue with Power On the System. Each SA200R controller enclosure
supports seven expansion enclosures; each SA10
0R controller enclosure supports three
expansion enclosures.
SA200R controller enclosures support both SA200J and SA210J expansion enclosures.
If both exp
ansion enclosure models are used, connect the SA200J expansion
enclosures first, then connect the SA210J expansion enclosures.

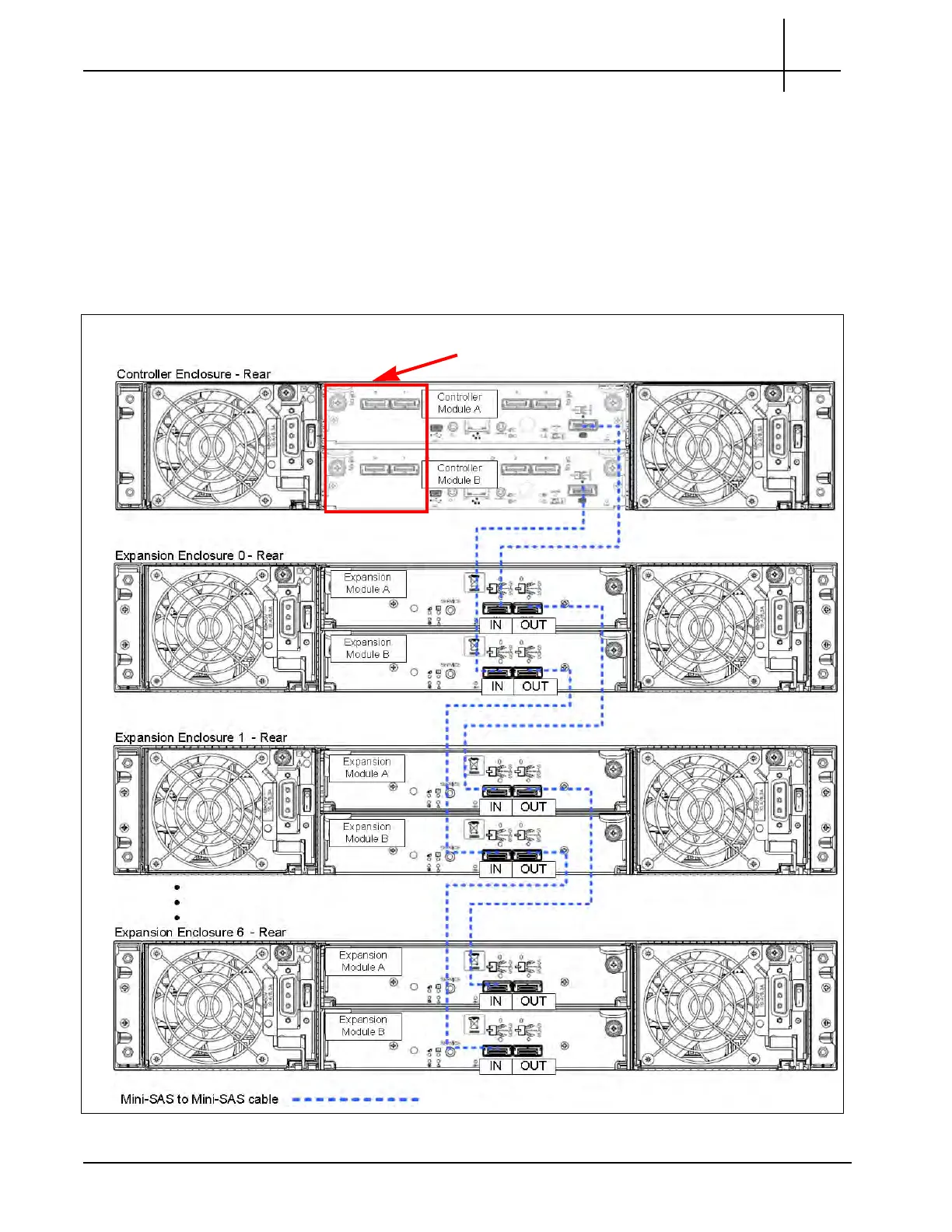

Figure 3.5 - SAS Connections - Controller Enclosure to Expansion Enclosures
SAS Cabling to G10 - see
Figure 3.3
Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
