Tektronix GeoProbe G10 - TRM100 RTM or SRM100 RTM SAS Connections

G10 Installation Guide 7.13.2 61 
3
Connect Ethernet and SAS Cabling
Rev. 005-140228
TRM100 RTM or SRM100 RTM SAS Connections
Use Figure 3.13 to connect SAS cables from the G10 to two controller enclosures. Refer to
Figure 3.9 for information about cabling expansion enclosures.

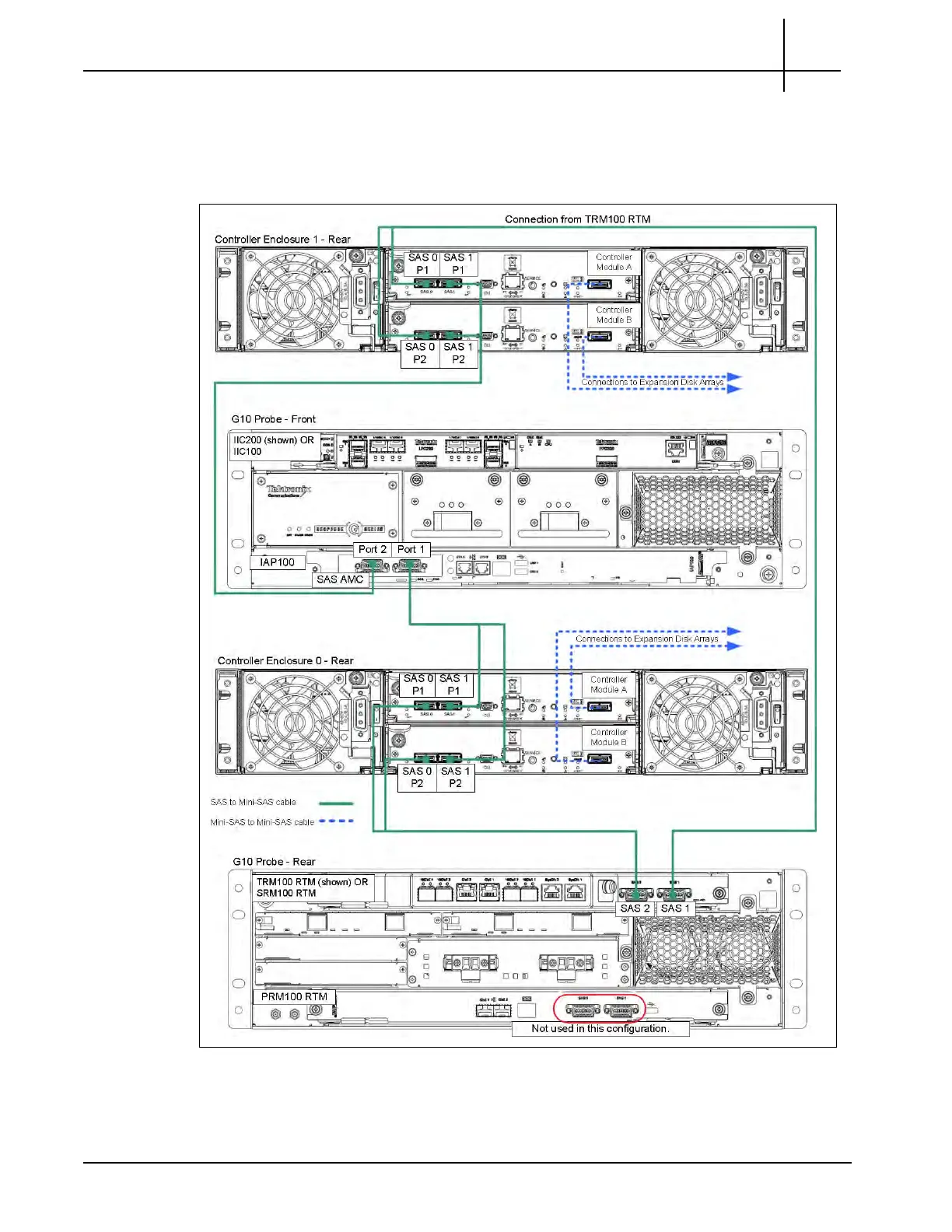

Figure 3.13 - G10 TRM100 RTM or SRM100 RTM SAS Connections
