Connect Ethernet and SAS Cabling
Rev. 005-140228
Connect IIC100 + IAP200 SAS Cabling
Use Figure 3.8 to connect SAS cables from the G10 to two controller enclosures. Refer to
Figure 3.9 for information about cabling expansion enclosures. The IIC100/I
AP320 is not a
recommended configuration and is not officially supported for qualified performance
ratings
. Tektronix Communications recommends upgrading systems to IIC200 when
upgrading to the IAP320.
If the G10 is supporting two controller disk arrays, it is recommended you label the
controller enclosures (such as, “Controller 0
to PRM200 RTM SAS Port 1” and
“Controller 0 to TRM100 RTM SAS Port 2”) as soon as you begin cabling so they can
be easily identified during deployment and for maintenance.

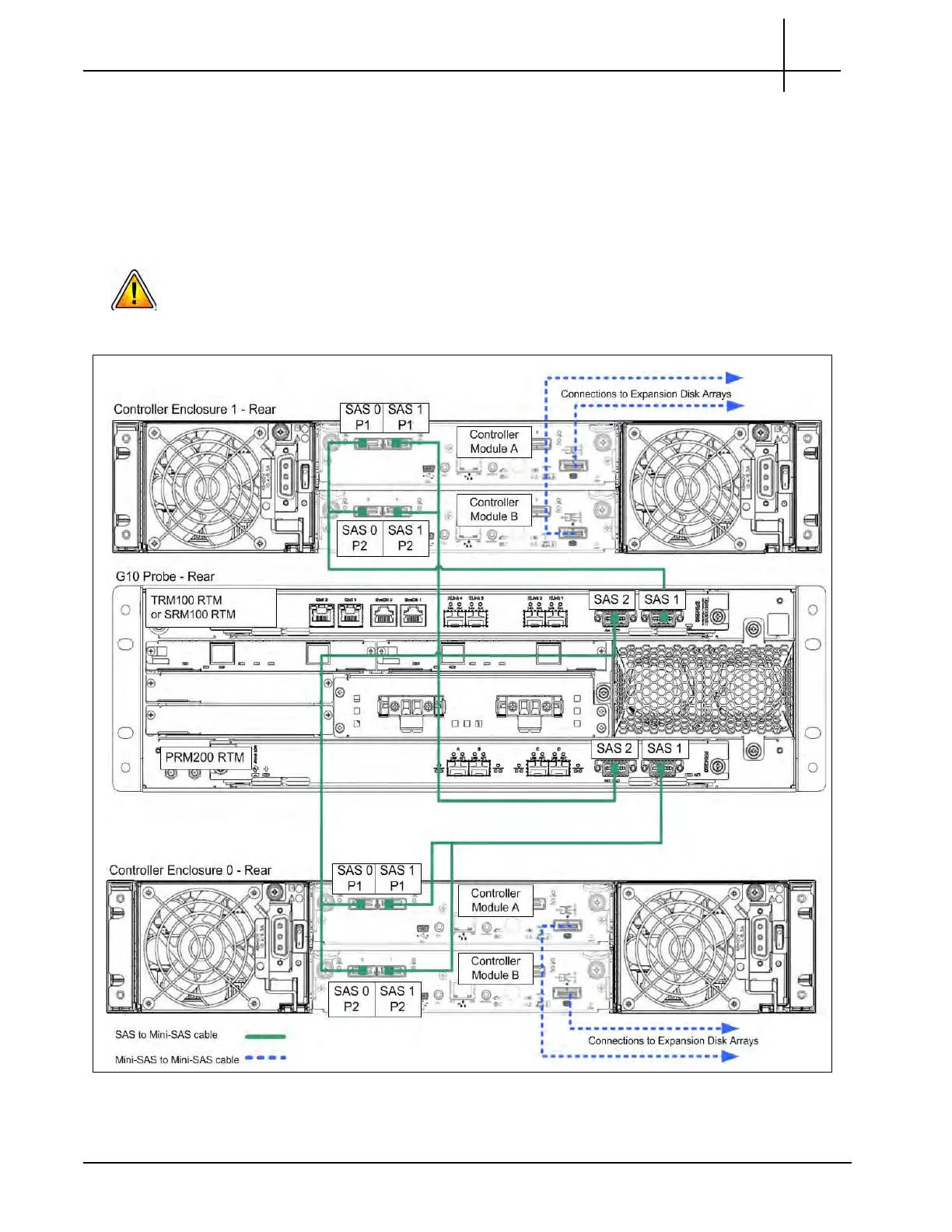

Figure 3.8 - G10 IIC100/PRM200 SAS Connections to Controller Enclosures
